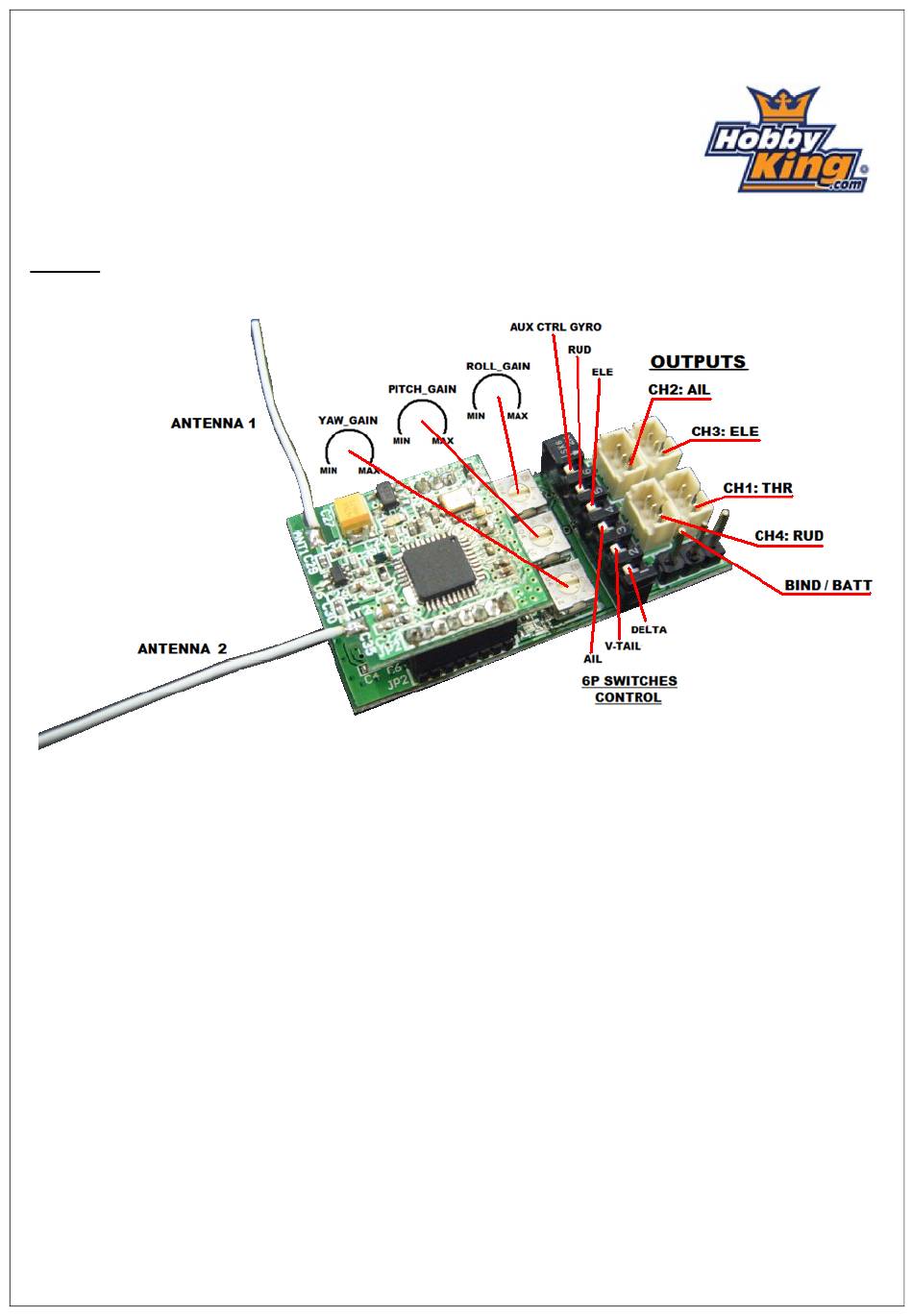

Layout:
The all new MicroRX3S OrangeRX Flight Stabilizer with Spektrum/JR DSM2 Compatible 4Ch 2.4GHz Receiver
adds support for V-tail & Delta models, it also offers a remote Gain Control feature that can be controlled
via your transmitter's CH6 channel.
Utilizing a single high precision 3-axis MEMS gyro, the MicroRX3S OrangeRX Flight Stabilizer with
Spektrum/JR DSM2 Compatiale 4Ch 2.4GHz Receiver is capable of stabilizing flight on just about any fixed
wing aircraft! It provides added stability by automatically correcting the aileron, elevator and rudder
channels in flight. This compensates for unwanted changes in the airplane's attitude due to wind and other
factors. In short, it makes your airplane much more stable in flight!
The MicroRX3S with Spektrum/JR DSM2 Compatible 4Ch 2.4GHz Receiver is great for those who tend to fly
in windy conditions, as it will compensate for wind gusts that would normally push your model around. It's
also an ideal add-on to your favorite FPV model to keep it on the straight and level while flying.
This unit is very simple to install and use. The adjustable gain settings are pre-set to 50% offering mild
stabilization. You can easily adjust the gain for each channel as desired to increase or decrease the
