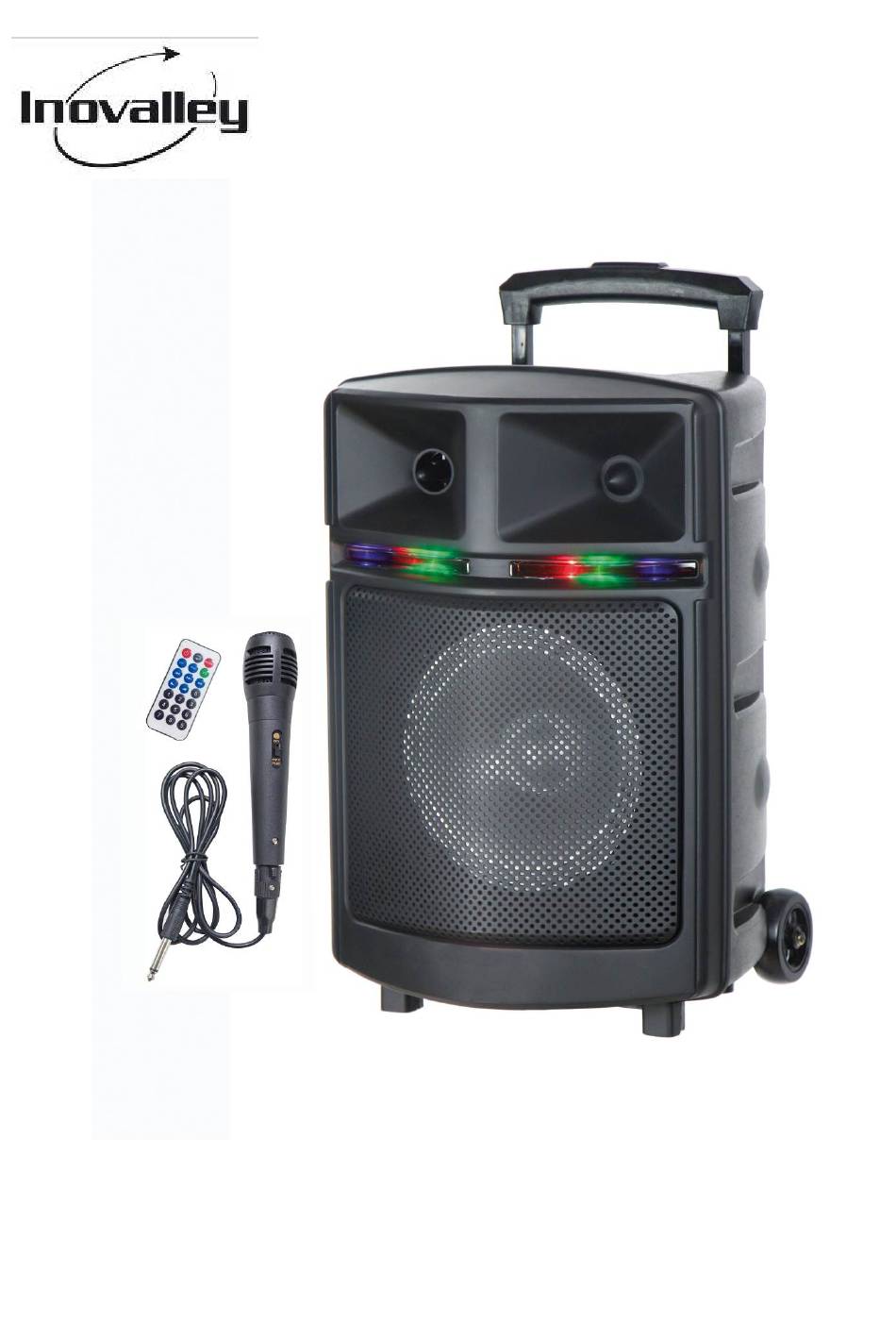

- Page 1 BLUETOOTH Connected TROLLEY KARAOKE SPEAKER Ref.: KA19 USER MANUAL Thank you for you chose our Bluetooth karaoke speaker. In order to maintain good performance for this unit, please read this user manual carefully before using and make sure to use it in a proper way. ...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read this user manual carefully before you use this product. Please reserve it properly for reference in the future. Please do not expose the unit in the raining or moist environment to avoid fire hazard or electric shock. On the machine should not receive the water drop or the water splashes, on the machine could not lay object filled with liquid, like vase. THE AC MUST REMAIN EASILY ACCESSIBLE IN ORDER TO BE ABLE TO DISCONNECT THE DEVICE IN CASE OF EMERGENCY. 1. Read through the manual before operating. 2. Read the instructions. 3. Follow all instructions in the manual. 4. Keep the manual for future reference. 5. Do not use the apparatus in places that are extremely hot, cold, dusty or humid. 6. Do not keep the apparatus in a high humidity area such as a bathroom, kitchen sink or pool. Keep the apparatus away from heaters, stoves, etc. Never leave the apparatus in an area exposed to direct sunlight where there could be a considerable rise in temperature. ... -
Page 3: Electric Supply
or other sources, refer to the operation instructions. 14. The mains plug is used as disconnect device. The mains plug of apparatus should not be obstructed OR should be easily accessed during intended use. To be completely disconnect the power input, the mains plug of apparatus should be disconnected from the mains. 15. An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. 16. If the apparatus is not used for a period of time, unplug the power cord. 17. If the remote control unit is not used for a period of time, remove batteries from the remote control unit and store them in a cool dry area. 18. If it is lightening, unplug the power cord to prevent the unit from unnecessary damages. ... -
Page 4: Before Use
CAUTION 1. Use of controls and adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. 2. If this product develops trouble, contact qualified service centers, and do not use the product in defective states. BEFORE USE 1. Choose unit installation location carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, cold or moisture. Keep away from sources that hum, such as transformers or motors. 2. Do not open the cabinet as this might result in damage to the circuitry or electrical shock. If a foreign object should get into the set, contact your dealer. 3. When removing the power plug from the wall outlet, always pull directly on the plug, never pull the cord. 4. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Use a clean, dry cloth. 5. In order to shut off the power to this product completely, unplug the power cord from the wall outlet. Be sure to unplug the unit if you do not intend to use it for an extended period of time, such as while on vacation. 6. Keep this manual in a safe place for future reference. FEATURES 150 WATTS ... - Page 5 BACK PANEL AND FUNCTIONS MODE : Mode shift button. Short press and shift to different mode. : Under USB/TF/Bluetooth mode, short press to move to previous track. Under FM mode, short press to move the Channel. 3. ll : Under USB/TF/Bluetooth mode, short press for play and pause; ...
-
Page 6: Remote Control
: Under USB/TF/Bluetooth mode, short press to move to previous channel/track. 7. : Under USB/TF/Bluetooth mode, short press to move to next channel/track. 8. VOL+‐ : Increase/Decrease the volume 9. Number key. Notes: 1. Remote control works with 1pcs button battery included. 2. The position of remote control receiver is at the backside of the product. BLUETOOTH ‐ Turn ON the speaker unit and the Bluetooth switch on your mobile or other device and search for the speaker model name KA19. ‐ Pair the device. If requested, use the password 0000. ‐ Once device is paired, Bluetooth will automatically connect when unit is turned on subsequently. ‐ After pair the device, it can play the music, Short time Press ll to Play/Pause, press and to PREV and NEXT. ‐ Long time press and to turn down and turn up the Volume. AUX‐IN ‐ Using the audio cable into AUX slot, and then press MODE to switch to AUX‐IN mode. ‐ Long time press ... -
Page 7: Record Function
‐ The voice will be recorded into insert TF card or USB device. ‐ The record function only can be used in USB/TF mode. MICROPHONE FUNCTION Power ON situation, insert the microphone to MIC. Open the microphone, then can use. ECHO adjust the microphone reverberation effect. MIC‐VOL adjust the microphone volume. LED LIGHT (OPTIONAL) ‐ LED light function is in OPTIONAL. ‐ Press the LED light button on the backside of the speaker to OPEN/OFF the light. CHARGING ‐ Plug the charger into speaker DC 9V port and connect to power source. ‐ Red LED on panel when charging. Blue LED when full charging. SPECIFICATIONS REFERENCE KA19 Output power 150 Watts Driver unit size 8 Inch + 1 tweeter S/N ratio ≥80dB Separation ≥45dB Distortion ≤1.0% Frequency response 100Hz‐20KHz FM radio ... - Page 8 Micro SD card AUX‐IN 3.5mm 1 x micro 6.5mm DC 9V Accessories Wired microphone, remote control and AC adaptor Dimensions / Weight 4.3Kg / 300x290x450mm DETAILS AND PRECAUTIONS ON THE USE OF BATTERIES ‐ Discard a used battery in nature or garbage pollutes and prevents the recovery of recyclable materials. It is therefore important to limit consumption of batteries and follow these guidelines: ‐ focus on alkaline batteries (that last longer than the saline batteries) and when possible, rechargeable batteries ...
- Page 9 WITH FULL POWER, THE PROLONGED LISTENING CAN DAMAGE THE EAR OF THE USER. We certify that the power supply is used as a device for disconnecting the power distribution network, which should stay easily accessible. 9 ...
- Page 10 10 ...
