Spa Touch Control
FlexLine Spa
Manual
ÁSTC.ENYÈ
STC.EN
E-8881156

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spa Touch Control and is the answer not in the manual?

Questions and answers

Related Manuals for HygroMatik Spa Touch Control

Summary of Contents for HygroMatik Spa Touch Control

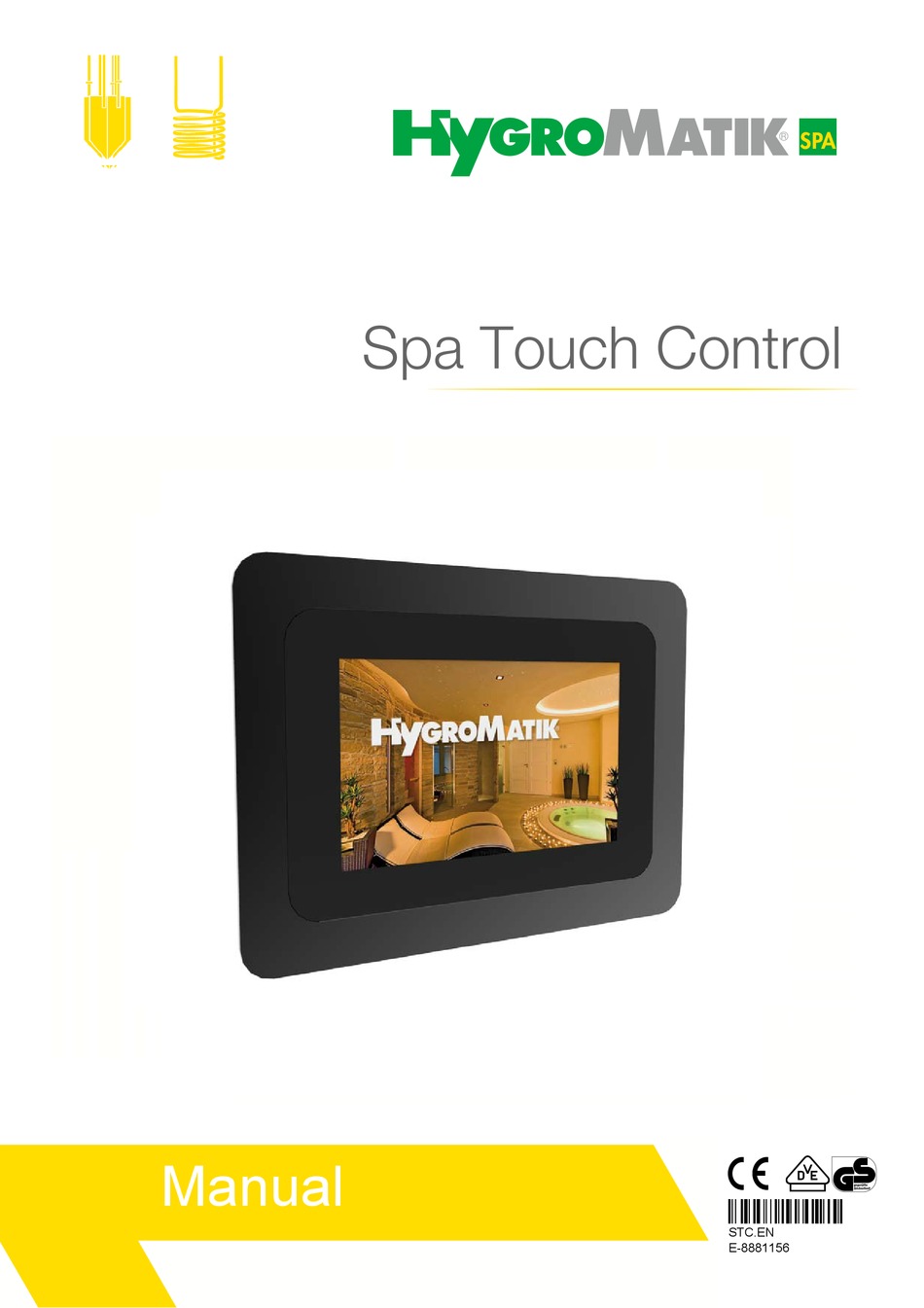

  • Page 1 Spa Touch Control FlexLine Spa Manual ÁSTC.ENYÈ STC.EN E-8881156...
  • Page 2 Current version of the operating manual at www.hygromatik.com All rights reserved. HygroMatik GmbH grants the legal user of this product [or unit/system] the right to use this work solely within the scope of the legitimate operation of the product [or unit/system]. No other right is granted under this licence.

  • Page 3: Table Of Contents

    5.2.2 On steam generators of the HeaterSlim series: ............. 13 5.3 Setting the baud rate for the communication interface ............13 6. Time control of the steam generator with the aid of Spa Touch Control ..... 15 6.1 Optional operating modes ....................15 6.1.1 Manual operation ......................
  • Page 4 9.4.2 Activate "Essence on/off" and set intensity ..............31 9.4.3 Activate the "Light on/off" button for the main screen ............ 32 9.4.3.1 Particularity for the FlexLine Control ................32 9.4.4 Activate "Fan on/off" button for the main screen ............33 9.4.5 Activate set point temperature display and set point temperature .........

  • Page 5: Introduction

    HeaterCompact, Heater Slim and FlexLine series. The Spa Touch Control is state of the art technology. In order to be able to operate the Spa Touch Control reliably or to set it up, please read this manual. Since the units feature diffe- rent controls, the operating menus differ from each other with respect to some of the operating steps.

  • Page 6: Typographic Distinction

    The user is a person who wants to "utilize" the steam bath facil- ity. User operation of the steam bath is limited to the essentials. The operating functions of the Spa Touch Control accessible to the user are depicted in the "User level".

  • Page 7: Overview

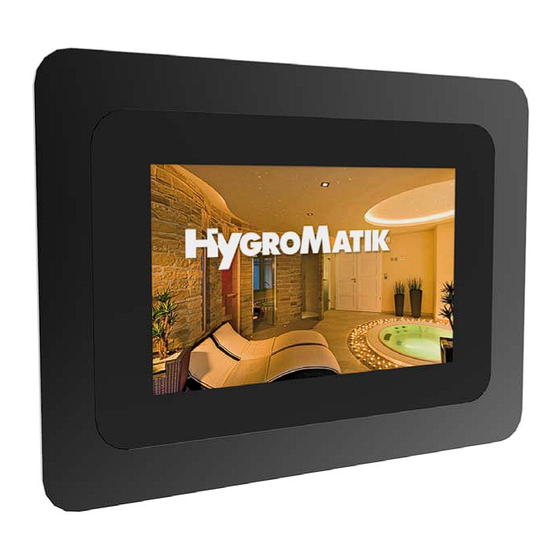

    2. Overview The HygroMatik Spa Touch Control is a compact display and operating panel for HygroMatik steam generators. Use direct on the steam generator or separated from it via cable with a maximum length of 50 m. 2.1 Characteristics of the Spa Touch Control •...

  • Page 8: Scope Of Supply

    2.2 Scope of supply The "Spa Touch Control" ordering package includes the follow- ing items: • Touch-sensitive 5 inch monitor (touchscreen) • Connecting cable 20 cm long, RJ45 plug on one end, 4-pin system specific connector on the other •...

  • Page 9: Mechanical Setup

    3. Mechanical setup The Spa Touch Control consists of the monitor assembly, the installation well with 2 attachment bores for the monitor assem- bly with rear welded M4 nuts and the faceplate. The monitor assembly is designed as a sandwich construction.

  • Page 10: Wall Installation

    4.2 Choice of installation location The installation of the Spa Touch Control can be made inside or outside the steam cabin. The installation height above the floor is to be selected so that easy reading of the screen is possible for the kind of usage envisaged (sitting or standing operation).

  • Page 11: Electrical Connection

    RJ45 plug. Alternatively the Cat 5 control cable can be connected directly to the Spa Touch Control. For this purpose the 4-pin system plug of the adapter cable is to used. Since the plug uses spring-type ter- minals, non-destructive dismantling of the adapter cable is pos- sible.

  • Page 12: Connection To Steam Generator

    One component part of this kit is an RJ45 socket in the form of a feedthrough housing (see adjacent illus- tration). The Cat 5 cable from the Spa Touch Control is inserted into this socket. If the permanent cable is to be directly connected to the steam generator an RJ45 socket is to be fitted to its end.

  • Page 13: On Steam Generators Of The Heaterslim Series

    The communication parameters of the serial interface of almost all of the HygroMatik steam generators quoted are set ex factory in a way that the compatibility with the Spa Touch Control is given (9600 Baud/No parity/1 Stopbit). Exception from the rule is the FlexLine steam generator that requires a change of parame- ters (s.
  • Page 14 11: Communications 01: Address 02: Baudrate 19200 03: Parity None 04: Stopbits » It is only required to make a baudrate setting change. For that reason, touch the second line in the view and select „9600“ as the new baudrate (to allow for this, change the view page by means of the scroll-up key).

  • Page 15: Time Control Of The Steam Generator With The Aid Of Spa Touch Control

    6. Time control of the steam generator with the aid of Spa Touch Control With the aid of Spa Touch Control the steam generator can be run in manual mode, short-term mode (steam release is made for a fixed period) or timer mode (weekly schedule). In addition to these, mixed modes are possible.

  • Page 16: Timer Mode

    6.1.3 Timer mode The on/off switching times for operation are saved to a weekly schedule. If there are no other activations (short-term mode or manual override) the weekly schedule directly determines the times for steam release. The three possible variants are described as follows: Timer mode Steam release...

  • Page 17: Status Chart Of Available Operating Modes

    6.2 Status chart of available operating modes Operating Steam icon Steam but- Short- Timer Timer in Steam mode available term activate switch- release operated mode acti- phase vated Manual Permanent until switched off or period limitation Short-term for the fixed period set Timer n.a.

  • Page 18: Menu Structures

    7. Menu structures User Settings/ enabling Read Vales Switches Displays Main screen Page 18...

  • Page 19: Initial Operation

    8. Initial operation When the steam generator with Spa Touch Control connected is switched on the following start screen appears: SW-XXXXX When initial operation is concerned after a brief period the dis- play switches to the following screen in which there are not yet any operating options for the user.

  • Page 20: Password Entry

    When the Spa Touch Control is combined with a steamgenerator of the FlexLine series, the following applies: The Spa Touch Control password can be set by the provider in the „Functions“ submenu of the FlexLine Control Spa. To do so, the provider level main menu must be called up first with the internal password „010“...
  • Page 21 After entering the password the screen is opened which enables the operator to define the buttons and display icons of the main screen and change the default values (in the following desig- nated as the options screen). The procedure for configuration of this screen and the changes to settings is described in Section "Operation"...

  • Page 22: Operation

    9. Operation 9.1 User and operator functions Differentiation is made between user operation and display func- tions and extended functions available to the operator only - after entering a password. Settings can only be changed by the operator. One exception is the modification of the set-point tem- perature of the steam bath which can be carried out by the user if permitted by the operator.

  • Page 23: Overview Of Operating And Display Elements For The User (Main Screen)

    9.2 Overview of operating and display ele- ments for the user (main screen) With FlexLine units, the timer function (weekly schedule) is substi- tuted by the weekly timer implemented in the FlexLine control. The status display of the Spa Control Touch (timer activation phase on/ off) is controlled by the FlexLine control when connected.

  • Page 24: Operation By User

    9.3 Operation by user 9.3.1 General operation The selection of individual functions such as "Steam generation on", "Essence supply off" is prompted by briefly touching the respective icons in the main screen with a finger. Please note Since a capacitive touchscreen is involved sure functioning is only provided by direct touch with a finger.

  • Page 25: Changing The Set Point Temperature

    Both operating functions are launched and the main screen changes as follows: Main screen with operating functions launched Steam release and fan are now enabled. By retouching the respective button the relevant function can be switched off although in the case of the steam release this is only possible as long as the operator has not set a default runtime.
  • Page 26 If enabled by the operator the temperature display now changes from "actual" to "set". Display and changing of the set point temperature » with button change the set point tempera- ture in 0.5 °C increments. » Accept setting and return to actual temperature display by touching the temperature display again.

  • Page 27: Settings By The Operator

    (when connected to a HeaterSlim or a FlexLine unit, particularities apply - see foot notes) . In addition there are icons/ buttons present which are only relevant for the operator. After commissioning the Spa Touch Control all functions are initially deactivated: Operating functions...
  • Page 28 Insofar as functions with modifiable parameters (e.g. parameters "Essence intensity" for the "Essence supply") are concerned, the release of the function is made in 2 stages (see Section "Select- ing steam control and changing settings). Example: On the main screen only the icons for "Light on/off" plus "Fan on/off"...

  • Page 29: Set Manual Mode ("Steam On/Off" Or Short-Term Mode)

    In this example the button for "Steam on/off" are not enabled i.e. Please note the operator prefers steam control by other means (see Section "Steam control" or the next one). Selection of steam control and modification of settings. In order to navigate to the required sub-menu for changing the relevant button must first be touched.
  • Page 30 Short-term mode (Steam mode for a defined time interval) If the short-term mode is to be selected in place of the straight manual "Steam on/off" mode proceed as follows: » Touch the 00:00 display. The following sub-menu screen: Screen for setting the interval for short-term mode Activation of short-term mode is made by overwriting the 00:00...

  • Page 31: Activate "Essence On/Off" And Set Intensity

    9.4.2 Activate "Essence on/off" and set intensity Activation of essence » Touch the essence button in the options screen. function or setting Depending on the connected steam generator type, one of the following two submenu views appears: the intensity see above View when connected to a HeaterSlim steam ge- View when connected to a steam generator of the nerator - 3 different essences can be released for...

  • Page 32: Activate The "Light On/Off" Button For The Main Screen

    9.4.3.1 Particularity for the FlexLine Control The FlexLine control supports the on/off-switching of 4 light sources. For each of the light sources a button can be offered on the main screen of the SPA Touch Control. To do so, pls. pro- ceed as follows: »...

  • Page 33: Activate "Fan On/Off" Button For The Main Screen

    9.4.4 Activate "Fan on/off" button for the main screen » Touch the button 9.4.5 Activate set point temperature display and set point temperature » Touch the button The following sub-menu screen appears: Set point temperature display activation see above see above »...

  • Page 34: Eco Mode On/Off" And Set The Setback Temperature

    In eco mode the steam generator operates with lowered steam bath temperature. The eco mode can be combined with other Spa Touch Control functions (e.g. the timer functions). Depend- ung on the steam generator series, the menus for the activation of eco mode in the main screen and the setting of the setback temperature vary.
  • Page 35 Set the setback temperature » Touching the temperature display in the eco mode sub- menu screen leads to the following sub-menu screen: Setback temperature setting » With buttons the steam bath temperature for the eco mode can be changed in increments of 0.5 °C.
  • Page 36 HeaterSlim series Activate „Eco mode on/off“ for the main screen » Touch the Eco button in the options screen. Activate Eco mode The icon in the options screen changes the display form as shown below: Eco mode activated Set the setback temperature The eco setback temperature is to be changed in the HeaterSlim control parameter list.
  • Page 37 FlexLine series Activate „Eco mode on/off“ for the main screen » Touch the Eco button in the options screen. Activate eco mode The icon in the options screen changes the display form as shown below: Eco mode activated Set the setback temperature The eco setback temperature is to be set in the FlexLine control by means of the „ΔTemp._ECO“...
  • Page 38 Not dependant on the steam generator series, the following exemplary main screen results which enables the user to switch on the eco mode (with the saved setback temperature). Main screen with activation Page 38...

  • Page 39: Realtime Clock Setting

    9.4.7 Realtime clock setting HyLine, CompactLine, HeaterLine, HeaterCompact and Heater Slim series » Touch the timer button.The following screen shows up: Timer screen see above The clock continues to run as long as the display/button of the clock is not touched. When touched the clock is stopped and the (internal) second counter set to "zero".

  • Page 40: Timer Function (Weekly Schedule) Activation

    Return to main screen with the button FlexLine series If the Spa Touch Control is connected to a FlexLine Control SPA, the real time clock of the control is used for controlling the time- of-day display on the Spa Touch Control screen. Setting the real time clock is accomplished in the „03: Settings“...
  • Page 41 Settings for operating mode "Timer" » Touch the timer button on the options screen. The fol- lowing sub-menu screen is displayed (shown here with the factory settings for switching times of the weekly schedule i.e. without entries). Timer function activation see above »...
  • Page 42 Set timer switching times » The entry may now be overwritten on a digit-by-digit base » Save with the button » Return to previous screen with the button » Return to the options screen with the button On the main screen (for the user) the activated timer mode is indicated by the relevant icon next to the daytime clock.
  • Page 43 Settings for operating mode "Timer with manual overwrit- ing" For this operating mode it is necessary to activate the "Steam on/off" button on the options screen in addition to timer activa- tion. Steam mode can be manually started and ended however only then when there is a switch-on phase in the weekly sched- ule at the same time.

  • Page 44: Colour Combination Selection

    FlexLine series The switching times and related fragrances may be set in the „12: Timer“ submenu (see section 6.9.1 in the FlexLine Con- trol Spa manual). 9.4.9 Colour combination selection For customizing the appearance of the main screen of the Spa Touch Control one of six colour combinations can be selected by the operator for the background and font colours.

  • Page 45: Parameters And Read Values When Connected To A Heaterslim Steam Generator

    10. Parameters and read values when con- nected to a HeaterSlim steam generator If the Spa Touch Control is connected to a HeaterSlim steam generator, an extended menu is offered. After entering the password, the so-called "Selection View" appears. With HeaterSlim connected, this view has another but-...

  • Page 46: Tabular Overview Of Parameters

    10.1 Tabular overview of parameters Parameter Setting range Unit Factory- Setting options Description setting Language Language selection German French Italian Swedish English Spain Russia Temp._set_value 25,0 49,0 °C 45,0 Target value of steam bath temperature Δ Temp._ECO °C The temperature set value is lowered by the amount entered in ΔTemp._ECO when ECO is enabled Δ...
  • Page 47 Continuation of the tabular overview of the parameters Assignment_relay 1 The relay is energized for a message (M) or switching function (S) if... Collective_fault a persistant fault is present (M) Service_message a service message exists (M) Humidification steam is produced (M) Safety_interlock_open the safety chain is open (M) Essence 1 Essence pump 1 should be activated (S)

  • Page 48: Tabular Overview Of Read_Values

    The operation of the device was switched off by a Modbus RTU control command. Further information on communication via Modbus is given in the separately available "Quick Start Guide for HygroMatik Modbus RTU". Timer_steam_off Steam is not produced after the timer has expired Humidification_ECO Steam is produced in ECO mode.
  • Page 49 Continuation of the tabular overview of reading values Temp._actual_value °C The temperature value measured by the temperature sensor connected to the HeaterSlim is displayed. Temp._set_value °C The setpoint of the steam bath temperature is displayed. Water_level_max. digits Measured value of the water level sensor in digits - only for service purposes Water_level_steam digits...
  • Page 50 This page intentionally left blank Page 50...
  • Page 51 This page intentionally left blank Page 51...

  • Page 52: Technical Specifications

    11. Technical specifications Monitor • 5" capacitive touchscreen (PCT touchscreen) • Resolution 800 x 480 pixels • 65K colour saturation • Protection class IP65 front (rear IP00) Overall assembly (Screen and electronic assembly) • Operating temperature 0 to 55 °C •...
  • Page 53 Dimensions 118.4 59.2 Page 53...
  • Page 54 Installation well • Steel construction 1.4301 Dimensions Installation bolts • 2 off countersunk bolts M4 x 8 Page 54...
  • Page 55 Face cover • Aluminium black anodized Dimensions  Page 55...
  • Page 56 A Member of the group 100%...
