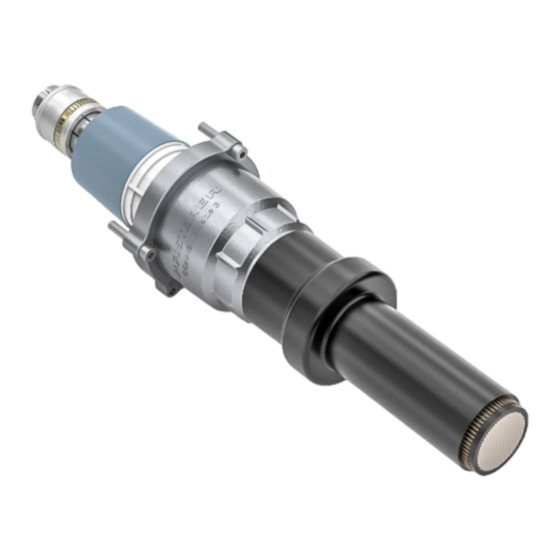

Pfisterer MV-CONNEX 3 Installation Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

MV-CONNEX Size 3 + 3-S wire screen
INSTALLATION INSTRUCTIONS
Inner cone
Take note of any additional instructions
prior to installation!!!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MV-CONNEX 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pfisterer MV-CONNEX 3

  • Page 1 MV-CONNEX Size 3 + 3-S wire screen INSTALLATION INSTRUCTIONS Inner cone Take note of any additional instructions prior to installation!!!
  • Page 2 www.pfisterer.com...
  • Page 3 Content www.pfisterer.com...
  • Page 4 EPDM because it helps to even out temperature variations and unevenness in the cable surface. Silicone helps to prevent air gaps, and therefore dangerous partial discharges are avoided. PFISTERER takes extensive advantage of advanced LSR (Liquid Silicone Rubber) desi- gns and special variations are made using RTV (Room Temperature Vulca- nizing silicone).
  • Page 5 Please observe the sequence of steps during the installation. Installation should be carried out by fitters who have been trained by PFISTERER. 2.1 Information regarding the installation instructions These assembly instructions describe the safe and proper use of the pro- duct described.
  • Page 6 Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 7 Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 8 Do not perform any activity that may affect the safety of persons, the environment or the product. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 9 Safety glasses to protect the eyes from liquids. 3.8 Warnings In this installation manual, warnings are also indicated by warning symbols. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 10 Storage temperature -5 to 50 °C. Store in dust-free conditions. Avoid mechanical shock and damage. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 11 Lubricants and other additives are subject to special waste treat- ment and may only be disposed of by authorised companies! Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 12 For pre-assembly of CONNEX Size 3 827 174 004 cable terminal heads (e.g. in the workshop). Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 13 28.5 HR 25 300 641 641 32.0 HR 28 300 641 001 36.5 HR 32 Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 14 35 / 800 min. / max. Diameter over insulation, [mm] 15.5 / 46.0 min. / max. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 15 [kV] Rated short time current 0.5 sec [kA] 1 sec [kA] Rated impulse current [kA] Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 16 Capacitive voltage tap (optional) Screws M8 Gasket Bell flange Capacitive voltage tap (optional) Heat-shrink tubing Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 17 If limits are exceeded, the cable must be reworked until it con- forms to the tolerances specified. If this is not possible, the pro- duct should not be installed. In such cases, contact "PFISTERER Kontaktsysteme GmbH". Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No.
  • Page 18 500 mm behind the "jacket cut" (1) (e.g. by peeling, grinding, washing, ...). L = 235 + x (min. 400) Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 19 Again roughen the heat-shrink tubing in the shrinkage area with grit 60 VIII emery over 110 mm. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 20 Apply one layer of sealing tape 10 mm behind the control mark. VIII Remove balancing tape at the "jacket cut" (1). 545 036 002 Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 21 Chapter 8.8. page 36. Measurement Ø semi-conductive layer - Ø insulation = Ø difference Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 22 "normal" peelable conductive layer "thick" peelable conductive layer strippable conductive layer Chamfer the insulation edge. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 23 (40) "thick" peelable conductive layer strippable conductive layer Remove the protective wrapping from the insulation. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 24 Saw off the conductor with the crimped-on sleeve 85 mm and then de- burr the sleeve. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 25 (see label / packing list / insulating part ). If the diameter is not within these values, DO NOT INSTALL THE INSULATING PART. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 26 Slide the heat-shrink tubing and bell flange over the cable. Clean the insulation. (Recommended cleaning agents: benzine, acetone.) Grease the insulation thinly and evenly with PFISTERER MV-special grease. Remove the protective wrapping from the conductive layer. Check the insulating part for cleanliness and completely grease the inside thinly and evenly with PFISTERER MV-special grease.
  • Page 27 Conductor and tension cone must be free of grease! Slide the contact ring onto the tension cone. VIII Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 28 Release the hydraulic compression tool before operating [2]. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 29 Pull the insulating part flush against the thrust piece. VIII Slide the bell flange onto the insulating part. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 30 Note additional steps (see chapter 8.6, page 34). Clean the surface of the insulating part (recommended cleaning agents: benzene, acetone) and grease thinly and evenly with PFISTERER MV-spe- cial grease. Wear clean protective gloves (e.g. latex or plastic). Clean the surface of the socket (recommended cleaning agents: ben- zene, acetone) and grease thinly and evenly with PFISTERER MV-special grease.
  • Page 31 For better adhesion of the heat-shrink tube, introduce a hose clamp bet- ween the sealing tape and the check mark on the outer jacket. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 32 Clean the outside of the bell flange. Fix the heat-shrink tubing over bell flange on the ribbing. VIII Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 33 The product can now be operated within the plant and it complies with all safety regulations. ~ 600 = Fixed Earth Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 34 The sealing set is only to be used in combination with the screws, the Usit-rings, the disc and the Hylomar. VIII Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 35 (below the ribbing) and the inner adhesive is exposed from both sides. = Fixed Earth Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 36 Tap down screen wires at the "jacket cut" (1) and either side of the sealing tape. Go to Step 18 in Section 8.2, page 22. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 37 Place the removal tools over the contact ring with its rounding towards the insulating part and squeeze together. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 38 Release the hydraulic compression tool before operating [2]. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 39 Remove the insulating part and bell flange. The tension cone, insulating part and heat-shrink tubing should not be reused! Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 40 558 228 008. Keep bell flange, cable screen and if appropriate test lead line separate. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 41 Installed test piece (both sides with MV-CONNEX separable connectors) Air insulation requires unearthed/ isolated configuration Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 42 Loosen earth screen and test lead from system earth. Beware of induced voltages on the cable screen! Connect the DC voltage. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 43 Shrink heat-shrink tubing over bell flange and cable. Connect screen excess voltage limiter. Capacitive voltage tap optional Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 44 Loosen cable screen, test lead (if present) and remove the earthing of the bell flange. Loosen the mounting screws and carefully unplug. Optional removal device Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 45 When using the blind cap, grease is required! Clean the inside of the socket (recommended cleaning agents: benze- ne, acetone) and grease thinly and evenly with PFISTERER MV-special grease. Wear clean protective gloves (e.g. latex or plastic). Insert cover (not voltage-proof) or dummy plug (voltage-proof).
  • Page 46 Wear clean protective gloves (e.g. latex or plastic). Clean the inside of the socket (recommended cleaning agents: benze- ne, acetone) and grease thinly with PFISTERER MV-special grease. Wear clean protective gloves (e.g. latex or plastic). Do not apply grease to the contact area! Introduce the CONNEX separable connector into socket and screw in the screws.
  • Page 47 15 Nm). A „settling time“ of 1 hour is needed before starting up the system. Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01 www.pfisterer.com...
  • Page 48 +27 33 387 6377 E-Mail power@ixosil.ch +43 1 3176531 12 E-Mail pfisterer@iafrica.com E-Mail info@pfisterer.at PFISTERER Czech Republic PFISTERER S.A. PFISTERER Sp. z o.o. Verkaufsbüro Av. Velez Sarsfield 464 ul. Pogodna 10 Budova Mediahall C1282AFR Buenos Aires 05-850 Piotrkowek Maly Bidlaky 20 Argentina...
