Summary of Contents for Beam SHARPY VSM-120

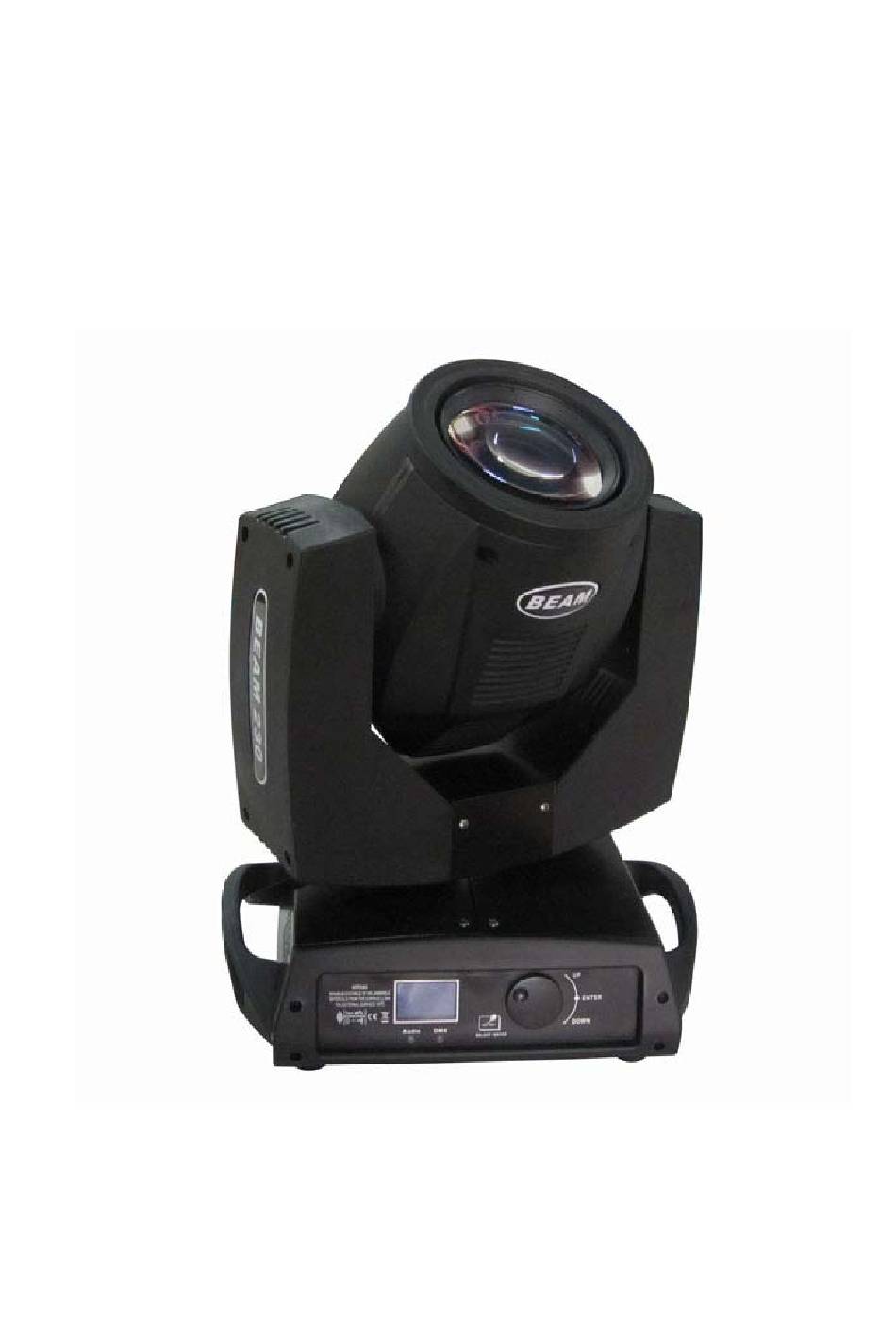

- Page 1 VSM-120BEAM SHARPY User Manual...
-
Page 2: Safety Information
If the safety chain gets used, it needs to be replaced with a genuine spare. 2) Minimum Distance of Illuminated Objects a. The projector needs to be positioned so that the objects hit by the beam of light are at least 12 meters from the lens of the projector. -
Page 3: Technical Information
VSM-200BEAM SHARPY nill. c. The fitting is designed to hold in any splinters produced by a lamp exploding. The lenses must be mounted and, if visibly damaged, they have to be replaced with genuine spares. 11) Lamp a. The fitting mounts a high-pressure lamp that needs an external igniter. This igniter is fitted onto the apparatus. - Page 4 VSM-200BEAM SHARPY 14 replaceable rotation gobos plus white circle, with shaking function and random position function available. Prism: 8-facet prism, forward and reverse rotation available and position function. Strobe: Double pole shut up to 13 times per second, random shut and pulse shut can be choose. Dimmer: 0 ~ 100% linear adjustable Frost:...
- Page 5 VSM-200BEAM SHARPY LCD DISPLAY MENU OPERATION Main Menu EN/中文 Screen Exchange 1. Set Setting ----------------------------------- Run Mode ------------------ DMX AUTO 1 AUTO 2 AUTO 3 AUTO 4 DrawUp 8 Forward 0 F-Stand 8 F-Sleep 8 Random Sound DMX Address ------------ 001-512 Channel Mode ----------- 16CH 20CH Invert Pan ----------------- OFF...
- Page 6 VSM-200BEAM SHARPY Linear Color ----------- OFF Load Default 2. Manu --------------------------------- Color --------------------- 000-255 Shutter/Strobe -------- 000-255 Dimmer ------------------ 000-255 Gobo --------------------- 000-255 Prism -------------------- 000-255 Prism Rotation ------- 000-255 Macro Function ------ 000-255 Frost --------------------- 000-255 Focus ------------------- 000-255 (076) Pan ---------------------- 000-255 (048)
- Page 7 VSM-200BEAM SHARPY System Errors Total Fixture Hours Partial Fixture Hours Total Lamp Hours Partial Lamp Hours 4. Advance...
- Page 8 VSM-200BEAM SHARPY DMX Channel List CHANNEL MODE CHANNEL COLOUR WHEEL COLOUR WHEEL STOP/STROBE STOP/STROBE DIMMER DIMMER STATIC GOBO CHANGE STATIC GOBO CHANGE PRISM INSERTION PRISM INSERTION PRISM ROTATION PRISM ROTATION MARCO FUNCTION MARCO FUNCTION FROST FROST FOCUS FOCUS PAN FINE PAN FINE TILT TILT...
