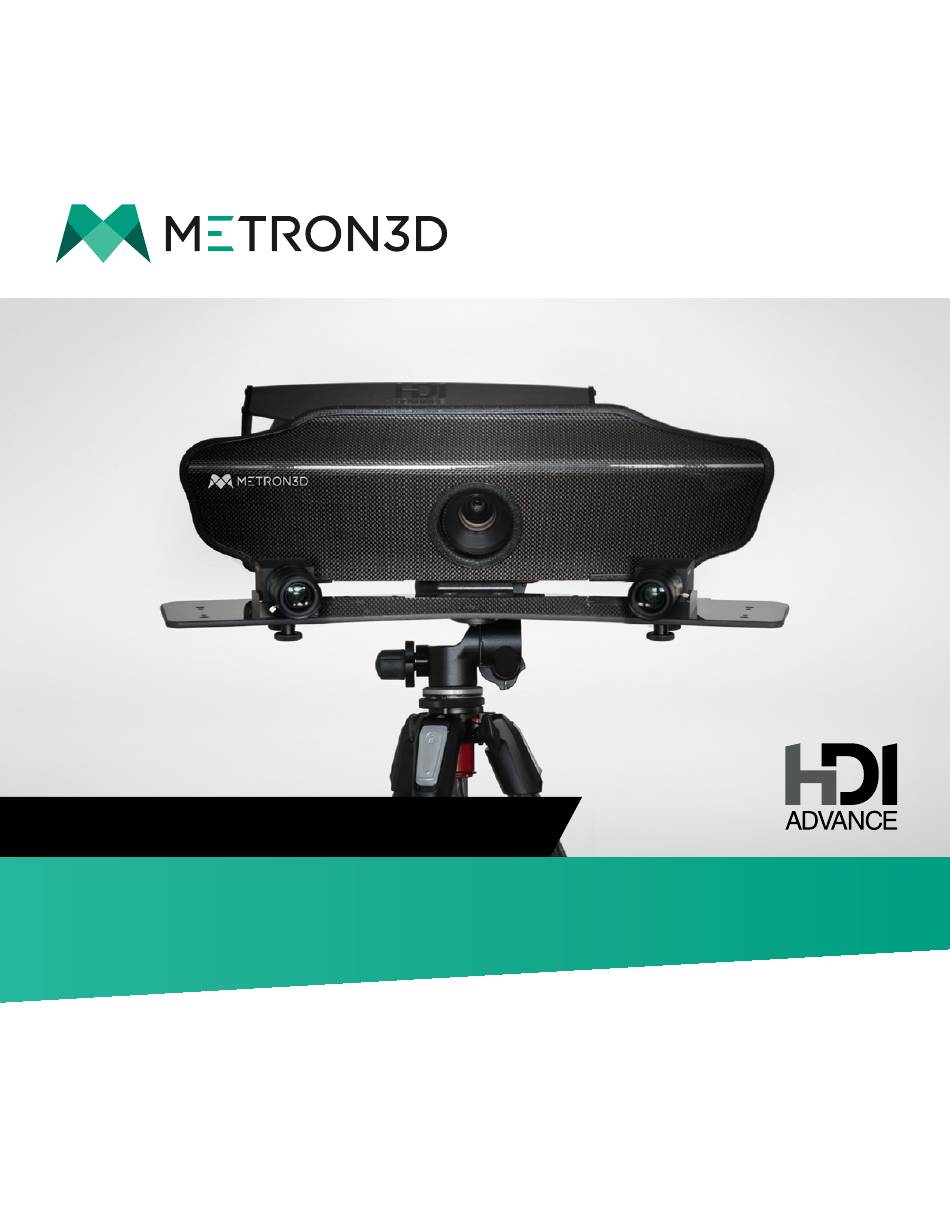

- Page 1 HDI ADvAnce 3D Scanner Quick Start Guide...
-
Page 2: Customer Support
• Physical capturing unit for capturing 3D data (some assembly is required) GettInG StArteD WItH FlexScAn3D The HDI Advance 3D scanning systems are powered by FlexScan3D. To request the latest version of this software, please send an email to support@metron3d.com... - Page 3 Congratulations on purchasing the HDI Advance 3D Scanner. Here are the steps to set up the capturing unit for 3D data acquisition. In this tutorial the HDI Advance R3x 3D Scanner was used. There are slight variations to the instructions depending on which model you have purchased. Please see the following instructions to assemble your 3D scanner, most of which will be pre-assembled.
- Page 4 ScAnner to tHe trIpoD Carefully lift up your pre-assembled scanner and locate mount adapter. Gently place the scanner onto the tripod head. This will snap into place when the scanner rests on top of the tripod head. www.metron3d.com...
- Page 5 Carefully remove the lenses from the packaging and take the camera lens cap from each camera. The lenses will need to be screwed onto the cameras until they are hand tight. connect tHe HDmI AnD poWer cAbleS to tHe projector Locate the back of your projector and attach the HDMI and power cables. www.metron3d.com...
- Page 6 Attach the USB 3.0 cables to the back of the cameras, and lock the cables with the locking screws. Connect USB 3.0 cables and HDMI cable to your computer. Plug the power cable into an electrical outlet. The physical assembly of the HDI Advance 3D Scanner is now complete. www.metron3d.com...
