- Page 1 LA12-25 LINE ARRAY TOWER INSTRUCTIONS Applied ATTENTION! 1500 lb WEIGHT LIMIT Truss and Electronics 722 Blue Crab Road Newport News, VA 23606 757.591.9371 / fax 757.591.9514 www.appliednn.com REVISED: 02Oct19 PROUDLY MADE IN THE U.S.A.
- Page 2 LA12-25 LINE ARRAY TOWER INSTRUCTIONS BILL OF GOODS Qty: (2) 12" LA1225 Towers REQUIREMENTS FOR SAFE USE 1) Build tower on flat surface. (2) V-BASES 2) Thick wood or metal plates under leveling jacks. (2) HINGE SECTIONS 3) Don't lift load until tower is fully assembled.
- Page 3 LA12-25 LINE ARRAY TOWER PARTS SHEETS / PER TOWER X 30 X 12 5/8HDRW 91-307 TOWER BRACKET LA-12-TB LEG BRACKET LA-12-LB MOTOR SUPPORT LA-MS LIFT LADDER LA-12-LL LEVELING JACK LEVELING 91-027S JACK 91-027L Applied Truss and Electronics 722 Blue Crab Road...
-
Page 4: Step#1 Base Assembly
LA12-25 LINE ARRAY TOWER INSTRUCTIONS STEP#1 BASE ASSEMBLY 12in HD Box 10 ft V-BASE Long Leveling Jack Leg Cap QTY: (4) Short Leveling Jack 12in HD Box 10 ft A) Set & level V-base with leveling jacks LA12-25 PARTS (PER TOWER) -
Page 5: Step#2 Tower Assembly

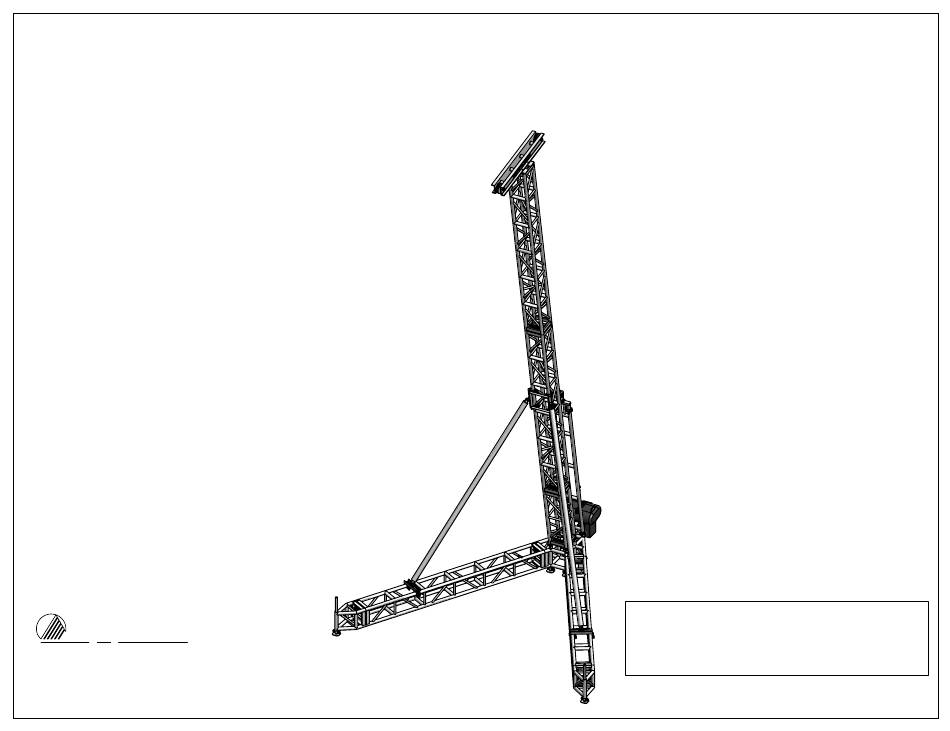

LA12-25 LINE ARRAY TOWER INSTRUCTIONS STEP#2 TOWER ASSEMBLY 12IN TWR TRUSS 10FT LENGTH 12IN HINGE 12IN TOWER TRUSS 10FT LENGTH HEAD BLOCK Tower Bracket ( MAKE SURE IT IS PROPERLY ORIENTED FORWARD) A) Pin bottom male spigots of hinge section to V-Base. - Page 6 LA12-25 LINE ARRAY TOWER INSTRUCTIONS STEP#3 ATTACHING TOWER LIFTING LADDER A) Pin tower lifting ladder to the v-base. B) Attach the tower braces to the top spigots of tower lifting ladder. C) Pin the braces to the leg brackets. D) Attach motor supports (as shown) TOWER CHECK ALL BOLTS AND CLAMPS BEFORE PROCEEDING.
- Page 7 LA12-25 LINE ARRAY TOWER INSTRUCTIONS STEP#4 RIGGING TO RAISE THE TOWER A) Rig motor to V-Base. B) Feed chain over the wheel at the top of the tower lifting ladder. C) Lay chain along the tower and run chain over both wheels of the head block.
- Page 8 LA12-25 LINE ARRAY TOWER INSTRUCTIONS STEP #5 Raising & Bracing Tower DOUBLE CHECK ALL CONNECTORS AND CLAMPS BEFORE PROCEEDING! A) Engage motor to raise tower. CAUTION: TAKE NOTICE OF TOWER KICK BACK B) Pin remaining spigots at tower base. C) Unpin top of the tower braces from the lifting ladder.
- Page 9 LA12-25 LINE ARRAY TOWER INSTRUCTIONS STEP #6 Flying Line Array Speakers A) Apply ballast per engineering data. B) Disconnect chain hook from tower. C) Check that chain rolls smoothly over head block. D) Connect chain hook to line array speaker frame.
- Page 10 LA12-25 LINE ARRAY TOWER INSTRUCTIONS Step #7 Installation of Optional Subwoofer Deck. Applied Truss and Electronics If deck legs are used, ensure deck frame rests on truss chords. 722 Blue Crab Road Newport News, VA 23606 757.591.9371 / fax 757.591.9514 www.appliednn.com...
