Summary of Contents for Zehnder Rittling ComfoWell CW-M 220

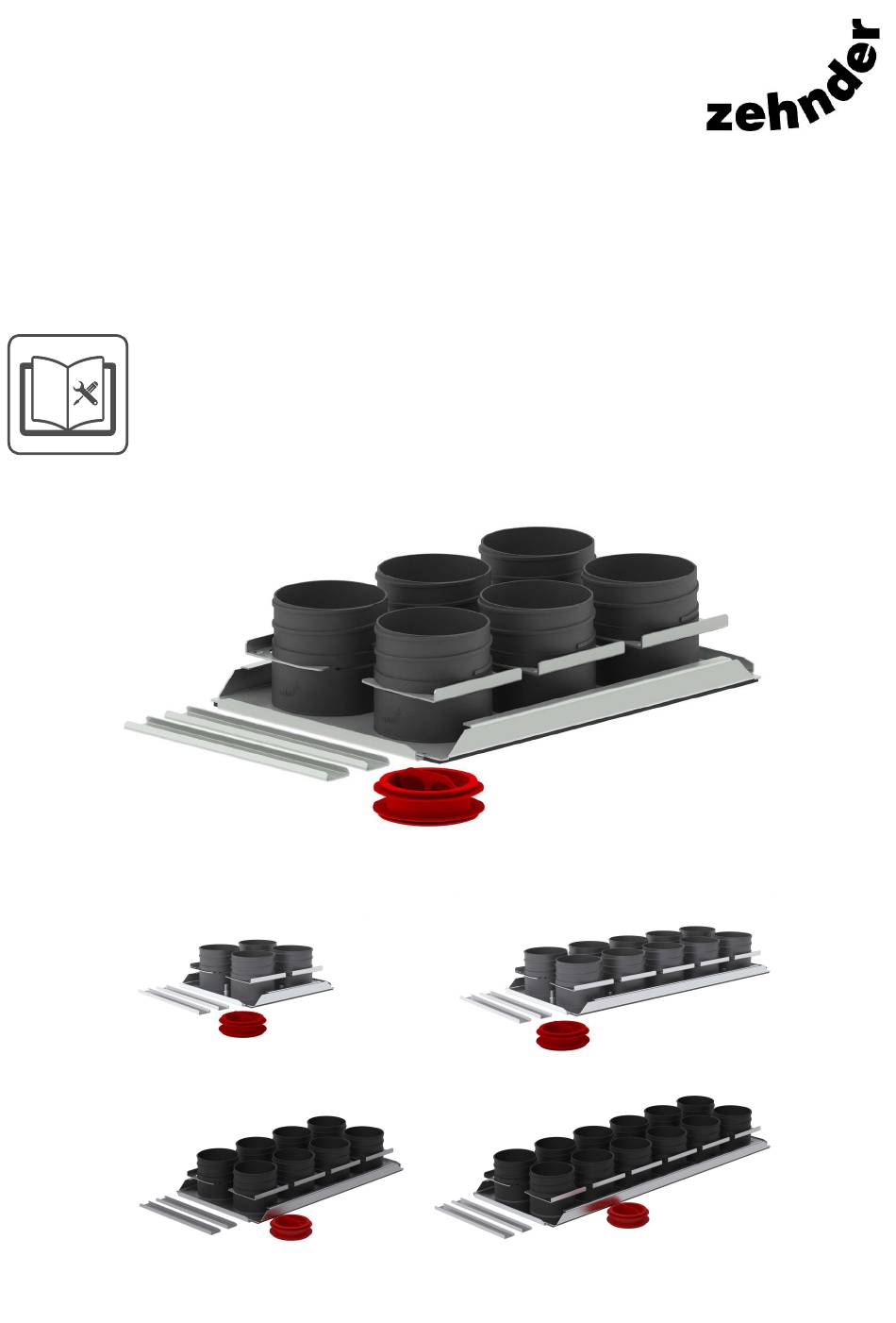

- Page 1 Zehnder ComfoWell Manifold w/ twist-connect terminations CW-M 220 4-port manifold CW-M 320 6-port manifold CW-M 420 8-port manifold CW-M 520 10-port manifold CW-M 625 12-port manifold Installer Manual 2019.09.17...
- Page 2 compatible with all ComfoWell modules For ComfoTube (white plastic duct) first attach twist-connect fitting to manifold plate, then connect tube to fitting. For ComfoFlex (gray fabric duct) first insert the twist-connect fitting into the duct end, then connect the fitting to the mounting plate. 2019.09.17...
- Page 3 Silicone lubricant Strap wrench (optional) For ComfoTube (white plastic duct) For ComfoTube For ComfoFlex (white plastic duct) (gray fabric duct) For ComfoFlex (gray fabric duct) 2019.09.17...
- Page 4 To cap an un-used port, install twist connector and push red plug all the way to the bottom past slots. Align tabs on manifold plate with slots on box. Slide clamps www.zehnderamerica.com 2019.09.17...
