Observint NB8 Quick Installation Manual

NB8 8MP PIR Bullet IP Camera
Quick Installation Guide
The NB8 bullet camera include passive IR (PIR) technology for better motion sensing. It features a high
resolution, low image distortion and low noise features which makes it suitable for surveillance and image
processing systems.
Features
8 MP 3840 (H) × 2160 (V) pixel resolution
•
H.265 / H.264 video compression
•
2.8 mm lens
•
Flip, Rotation and Corridor modes
•
95 feet IR range
•
23 ft PIR range with 120° detection angle
•
BLC, ROI and Privacy Mask
•
3D-DNR, D-WDR and IR cut filter
•
IP66 weatherproof
•

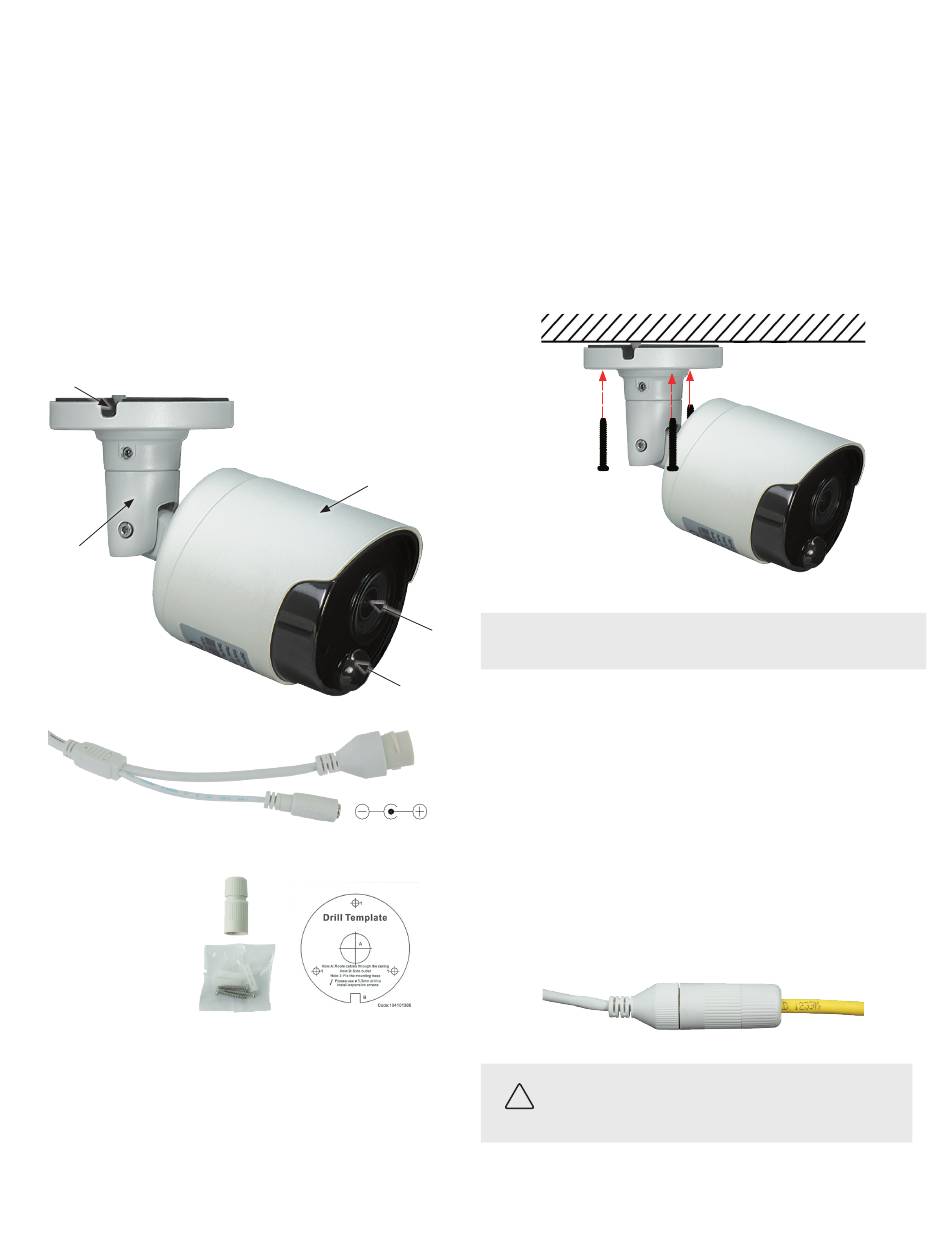

Cable channel
Adjustable
mounting
bracket
12 Vdc Power connector
What's in the box
Camera assembly
•
Mounting hardware
•
Waterproof Ethernet connector
•
This instruction guide
•
Drill template
•

Tools you need

To install the camera, you will need:
12 Vdc power source or Ethernet PoE injector. See Specifications for wattage requirement.
•
Tools and additional fasteners (may be required) for mounting the camera
•
Ethernet drop cable
•
12 Vdc power extension cable (if powering with 12 Vdc supply)
•
www.observint.com
1
Mounting base
Camera body
Ethernet connector -
PoE capable
Camera drop cables
Installation
Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
•
Check the specification of the products for the installation environment.
•
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
•
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
•
provide the rated voltage and wattage for the camera. See the Specifications section.
Step 1. Mounting the camera
A NB8 camera can be mounted directly to a wall or ceiling. The surface should support at least three times
the weight of the camera and junction box (if used). The LAN/power drop cable from the camera can be
routed either through mounting surface or through a cable channel in the mounting base.
Mounting the camera directly to a wall or ceiling
•
If mounting the camera on a wall, ensure that the cable channel in the mounting base is down.
Lens
NOTE
If mounting the camera on a ceiling, orient the mounting base so that the cable channel is pointing
away from any source of water, dust, and other contaminates.
PIR sensor 1. Using the drill template provided, mark the location of the screws that anchor the mounting base
to the mounting surface. See the note above. If you are routing the drop cable through mounting
surface, also mark the position of the hole for the drop cable.
2. Drill holes for the screws that anchor the base to the mounting surface. The mounting hardware
provided is appropriate for most surfaces. However, depending on the surface materials, more
appropriate fasteners may be required.
3. If routing the drop cable through the mounting surface, drill a 5/8" hole in the middle of the drill
template.
4. Route the drop cable through the hole in the mounting surface, or through the cable channel in the
mounting base, then attach the camera assembly to the surface using the appropriate fasteners.
5. Connect the network LAN and power extension cables to the camera drop cables:
a. Connect the Ethernet LAN cable to the camera LAN drop cable. Protect the connection from
moisture and other contamination, if necessary. A Weatherproof Ethernet Fitting is provided.
Installation instructions for the fitting are included later in this document.
Network drop cable
from camera
Drop cable connectors are not waterproof. Failure of the power or Ethernet connector
due to moisture or another contaminant is considered an installation error,
!
which voids the warranty. If installing this camera in a location such as an
WARNING
overhang, shop, garage, kitchen, etc. where high humidity or dust is present,
seal these connections adequately.
b. If the camera is not powered using PoE (Power over Ethernet injector), connect the 12 Vdc
power cable to the camera drop cable. The polarity of the drop cable connector is shown in
the drop cable photo above.
Typical ceiling mounting
Network cable from
Weatherproof Ethernet Fitting installed
router or switch
