Summary of Contents for LB Technology 96223W-CP

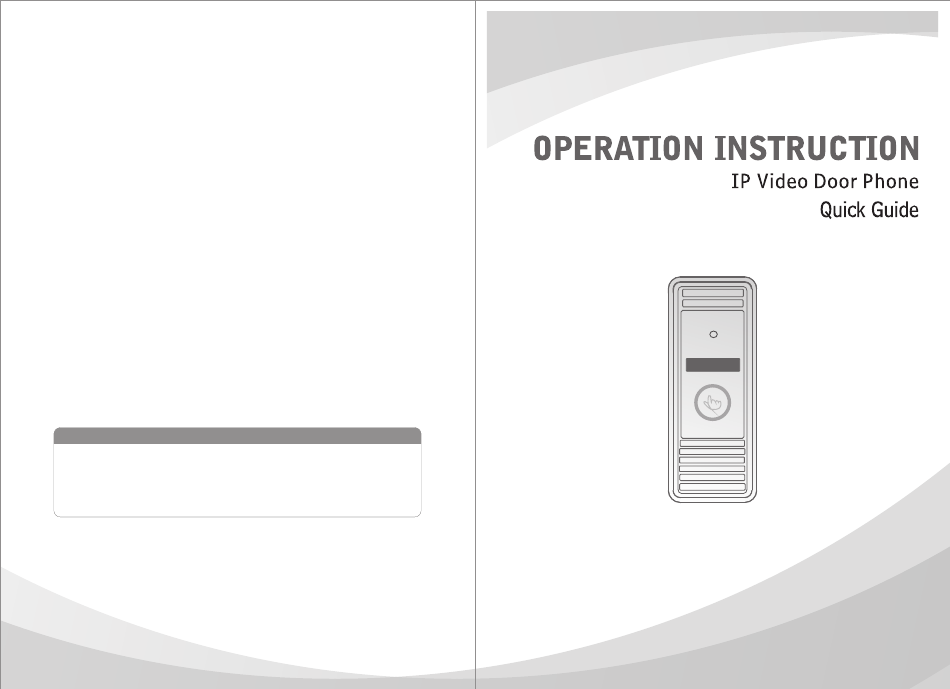

- Page 1 Statement * If there is any doubt or disputable regarding information in this manual, you can call our company for clarification. * In all cases, for more details, please refer to the electronic user’s manual on the included. Thanks. MC-1067(A-2)
- Page 2 Safety Instructions ※ Read these instructions and keep them in a safe place for future reference. ※ Please refer all work related to the installation of this product to qualified service personnel or system technician. ※ Do not operate the appliance beyond its specified temperature, humidity or power source ratings.
- Page 3 2.3 Fitting of the IP Outdoor Camera Name Descriptions Antenna( optional Weather shield Affix and protect outdoor camera from rain or snow. Outdoor Indoor antenna IR LEDs Provides illumination with IR LEDs for better visibility. antenna (optional) (optional) Camera Capture image to transmit to display Speaker Sound from smart-phone Call button...
- Page 4 In the standard delivery the system support locks with Normally Open(N.O.) door unlocking method. It means that in the normal state the dry contact(marked as is opened, so the lock is kept under constant closed state. If the unlocking button is pressed and the dry contact is changed to closed, then the lock is released.
- Page 5 3G/WIFI Mobile Phone Software Visit Internet Modem This IP doorbell can transmit live feed to your smart-phones and pads with To WAN IOS or android system via a program “MobileEyeDoor+”, and support P2P IOS/Android technology. Calling on the outdoor camera, notification will be pushed onto Router AC/DC power lock (not Included) (not Included)
- Page 6 B. Wireless network Step 1. Please download a program “MobileEyeDoor+” via “Play Store” on a smart-phone/pad with android system or via “APP Store” on an iPone/ iPad with IOS system. Step 2 Turn WLAN function on of user’s phone, then click the “MobileEyeDoor+” icon to run the program, click “...
- Page 7 2). When the device went into AP mode, long-press the “Talk” button again, don’t loosen the button until hearing a beep, this means the device will reboot automatically and will return to the previous connection mode. 3). If users want to connect the device via wireless network, when the device restarts automatically after completing set of the parameters about WIFI, please unplug the Ethernet cable connected to the device, otherwise the device will run via wired network.
- Page 8 C. Alarm push function To access the interface about the parameters of one device, there is an option “video push” or “Alarm Setting” for alarm push function. When select “On” or “Open”, it indicates that the alarm push function of the current device is enabled. To enable alarm push function, users need to make sure the outdoor camera and the mobile phone are both connected to internet.
