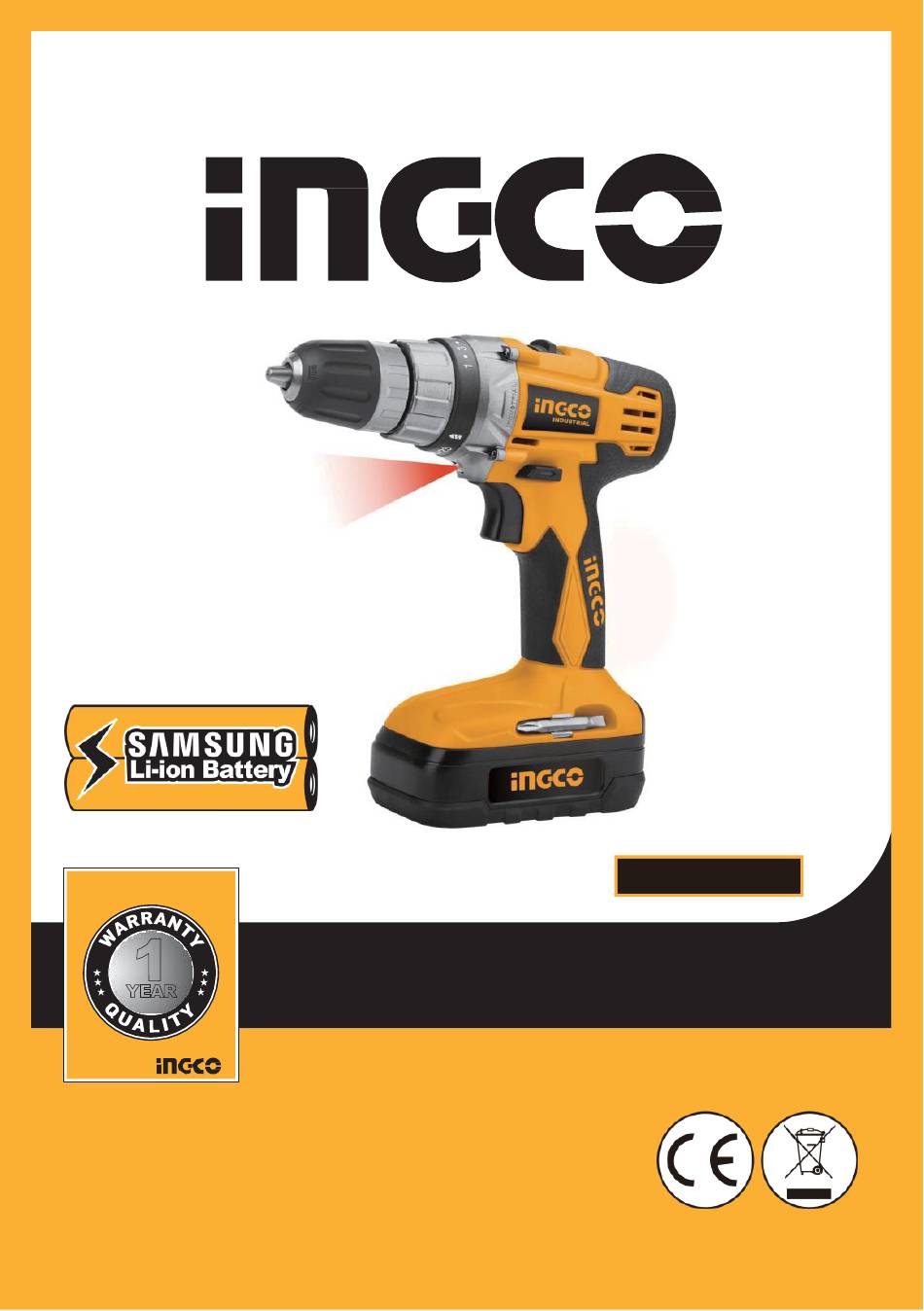

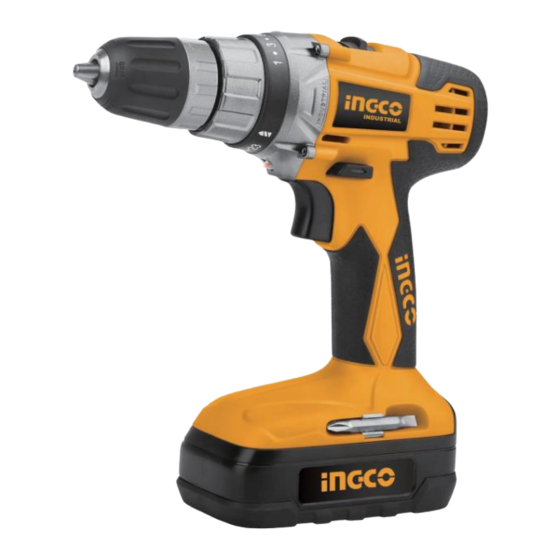

- Page 1 INDUSTRIAL QUALITY CDLI218144 UCDLI218144 Li-ion Cordless Drill YEAR CDLI218180 UCDLI218180 produced & marketed Li-ion Cordless Drill...
- Page 2 English Page 3-1...
-
Page 3: Product Specification
PRODUCT SPECIFICATION CDLI218144 UCDLI218144 Model Number Drill voltage 14.4V 14.4V 110~120V~60Hz Charging voltage 220~240V~50-60Hz 1Hr approx Charging time 1Hr approx Mechanical speed settings No- load variable speed 0-400/0-1400rpm 0-400/0-1400rpm 23+1 Torque settings 23+1 23NM Max torque force 23NM 1/32"-3/8" Keyless chuck capacity 0.8-10mm... -
Page 4: Parts Identification
PARTS IDENTIFICATION Torque Drill mode selector setting indicator and torque setting ring keyless chuck Cooling vents LED light Directional control switch On/Off variable and safety lock speed trigger off button switch Soft grip handle CR-V Bit Battery pack... -
Page 5: Safety Instructions
5|English SAFETY INSTRUCTIONS WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 6 6|English SAFETY INSTRUCTIONS Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in personal injury.
- Page 7 7|English SAFETY INSTRUCTIONS Keep cutting tools sharp and clean. Poorly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed.
- Page 8 OPE RATING INSTRUCTIONS INSTALLING THE BATTERY PACK WARNING! Before removing, or insta ll ing a battery pack, make sure that the directional control switch is in the central locked off position. Directional Control switch in locked off position To install the battery pack, proceed as follows. 1 Align the grooves on bottom of the drill handle with the battery pack.
-
Page 9: Opearting Instructions
OPEARTING INSTRUCTIONS REMOVING THE BATTERY PACK To remove the battery pack, proceed as follows. 1 Press and hold the battery release button on the battery pack. 2 Draw the battery off the drill handle. NOTE: During use the battery may become hot. Allow it to cool down before recharging . - Page 10 OPEARTING INSTRUCTIONS ADJUSTING THE TORQUE SETTING The drill is fitted with a torque setting ring to vary the amount of torque produced when drilling or screwdriving. 1 Select the setting by rotating the torque setting ring to align with the torque setting indicator.
- Page 11 OPERATING INSTRUCTIONS USING THE DIRECTIONAL CONTROL SWITCH The direction control switch is used to alter the direction of rotation of the drill. 1 The direction of rotation is selected by moving the directional control switch to either side of the drill. 2 For all drilling applications, the drill must be operated in the forward direction.
- Page 12 OPERATING INSTRUCTIONS OPERATING THE TRIGGER SWITCH WARNING! Before operating the trigger switch, make sure that you have read all of the safety instructions on pages 5 to 7 . Make sure that the torque setting has been selected to suit the material being drilled. The trigger switch is used to start the drill.
-
Page 13: Using The Drill
USING THE DRILL DRILLING When drilling the following points should be observed. 1 Always use sharp, good quality drill bits. The performance of your drill is dependant on the quality of the bits used. 2 Reduce the pressure on the drill bit when it is about to break through. This will prevent the drill from jamming. -
Page 14: Cleaning And Maintenance
USING THE DRILL SCREWDRIVING When screwdriving the following points should be observed. 1 Place the point of the screwdriver bit in the head of the screw and apply light pressure to the drill. 2 Start the drill slowly and then gradually increase the speed. 3 Release the trigger switch when the clutch operates. - Page 15 CDLI218144,UCDLI218144,CDLI218180,UCDLI218180 Spare part list Part Description Part Description Chuck screw Planetary carrer Chuck Planetary gear Tapping screw Planetary carrer Compressing plate Planetary gear Positioning spring Fixed ring gear Torque setting ring Washer Inner threaded ring Screw Shaft Spring washer Axletree...
- Page 16 .161Englis ißGCC DDIIIG Vl EW CDLI218144 υCDLI218144 CDLI218180 υCDLI218180 Exploding view...
- Page 17 CDLI218144,UCDLI218144 CDLI218180,UCDLI218180...
- Page 18 Li-ion Cordless Drill INGCO TOOLS CO.,LIMITED www.ingcotools.com MADE IN CHINA 0714.V01...
