ASTRO CDM-700 Series User Manual

Conveyor stacker
Hide thumbs

Advertisement

Quick Links

Download this manual
ASTRO
CDM-700 Series
(Covers Domestic 115V & European 220V Models)
Conveyor Stacker
USER'S GUIDE/PARTS CATALOG

Advertisement

loading
Need help?

Need help?

Do you have a question about the CDM-700 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ASTRO CDM-700 Series

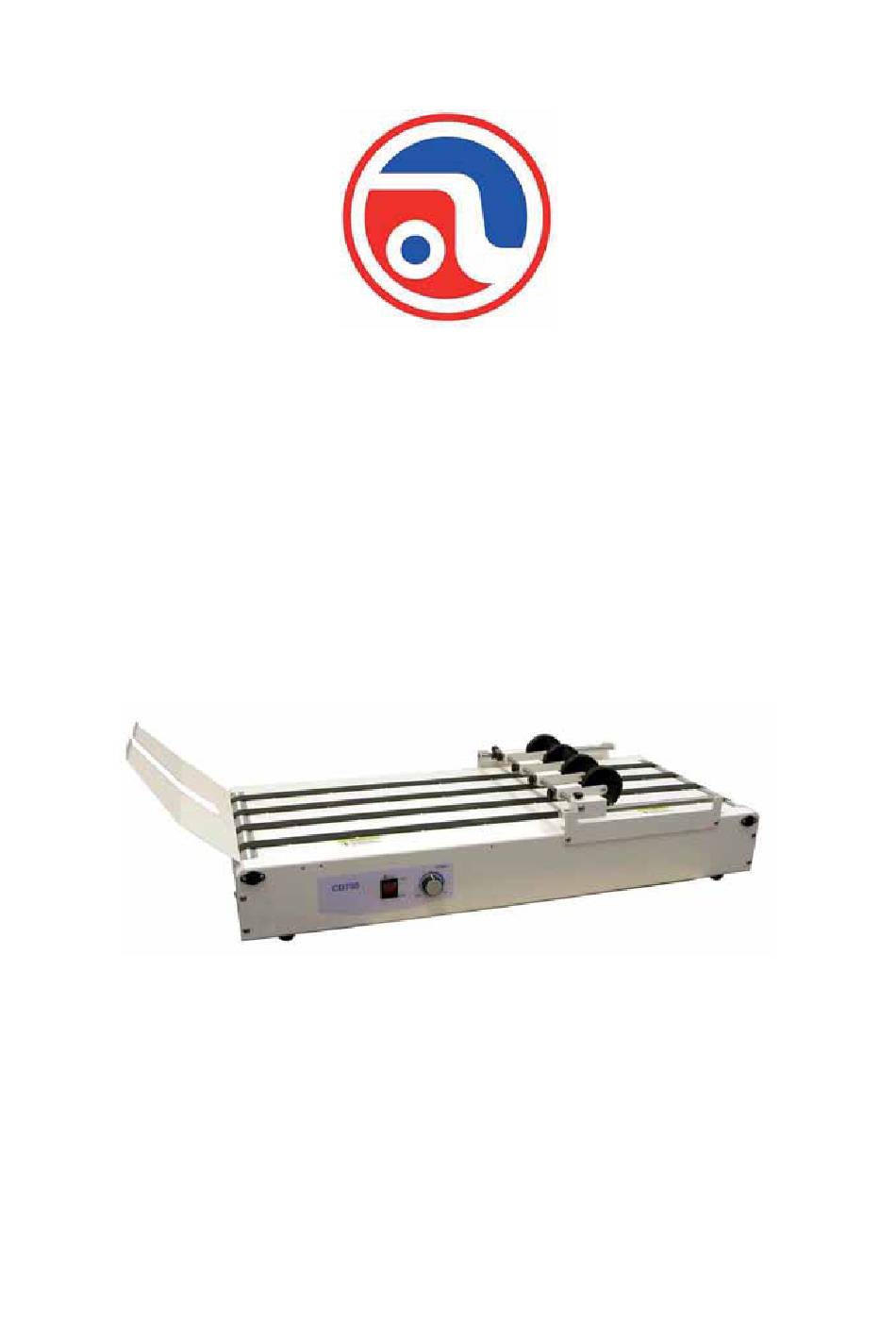

  • Page 1 ASTRO CDM-700 Series (Covers Domestic 115V & European 220V Models) Conveyor Stacker USER’S GUIDE/PARTS CATALOG...
  • Page 2 To the best of our knowledge, that information is accurate in all respects. However, neither Astro Machine Corp. nor any of its agents or employees shall be responsible for any inaccuracies contained herein.

  • Page 3: Specifications

    INTRODUCTION The CDM-700 Conveyor transports media from the Printer and stacks it. As the first piece of stock exits the Printer, the motor-driven Conveyor Tapes under the Stacker Wheels move it. The next piece of stock exits the Printer, overlaps the preceding piece, and is moved along the Conveyor.
  • Page 4 USER GUIDE Assembling Conveyor 1. Unpack Conveyor. Do not discard carton until Conveyor is assembled. 2. Attach Receiving Tray to Conveyor with two screws provided. Positioning Conveyor 1. Place Conveyor on the same sturdy table or workbench next to the Printer as shown. 2.

  • Page 5: Reverse Operation

    USER GUIDE 1. Turn Conveyor and Printer ON. 2. Feed stock through Printer and observe the way it is received by the Conveyor. 3. Loosen Locking Knob [A] and adjust Stacker Wheels so lead edge of media just touches Stacking Rollers as it exits the Printer.
  • Page 6 USER GUIDE Optional DTM-255/DTM-250 Conveyor Drop Tray Installation DTM-255 Drop Tray is for Left-to-Right Operation. DTM-250 Drop Tray is for Right-to- Left Operation. Assemble and install Conveyor Drop Tray on exit end of Conveyor: 1. Remove two screws attaching Stacking Tray to Conveyor and remove Tray.

  • Page 7: Contents Of Kit

    USER GUIDE Optional 57E-600-10 Conveyor Leg Kit Installation (for Use with M-Series Printers) Install Conveyor Legs on the Conveyor to allow proper alignment with M-Series Printers. CONTENTS OF KIT: 1. Conveyor Legs (2) 2. Screws (4) INSTALL CONVEYOR LEGS: 1. Remove (4) Rubber Feet from bottom of Conveyor. 2.
  • Page 8 USER GUIDE Optional DK-700 Dryer Kit Dryer Kit Includes: Front Exit Roller Assembly, Guide Roller Support, Front Roller Support, Rear Roller Support, 2 Dryer Support Shafts, 8 mounting screws 1. Before installing DK-700 Dryer Kit, remove these parts from the CDM-700 Conveyor. A.
  • Page 9 USER GUIDE 5. Remove two Levers [4] and Bearing Washers [5] from two Dryer Support Shafts [6]. Install two Shaft Assemblies into holes provided in Dryer (as shown). Reinstall Levers [4] and Bearing Washers [5] on Shafts. NOTE: When installing the two Levers [4], make sure the cams on the opposite end of the shaft are in the same position as the cams on the Levers.
  • Page 10 USER GUIDE...

  • Page 11: Parts Catalog

    PARTS CATALOG Parts Table of Contents GROUP 1 – Mechanical GROUP 2 – Electrical GROUP 2A – Motor Drive GROUP 3 – Labels GROUP 4 – Wheel Guide and Bracket Assembly GROUP 5 – DT-255 Drop Tray (R-L) (Optional) GROUP 5A – Rear Wheel Guide & Bracket Assembly GROUP 6 –...
  • Page 12 PARTS CATALOG GROUP 1 MECHANICAL...
  • Page 13 PARTS CATALOG GROUP 1 – MECHANICAL PART NO. DESCRIPTION QTY. PART NO. DESCRIPTION QTY. 57-150-08 END CAP, BODY CLOSURE 123-1104 CIRCUIT BREAKER 57-100-15 DRIVE ROLLER ASSEMBLY 123-0355 FUSE HOLDER 123-0309 BELT, CONVEYOR DELIVERY 57-500-01 AC OUTLET ASSEMBLY 123-0771 BELT, 120XL037 NEOPRENE CLASS 57-500-03 AC INLET ASSEMBLY (115V)
  • Page 14 PARTS CATALOG GROUP 2 – ELECTRICAL -11-...
  • Page 15 PARTS CATALOG GROUP 2 – ELECTRICAL PART NO. DESCRIPTION QTY. 57-500-02 TRANSFORMER (115V, 60Hz) 57-500-16 TRANSFORMER (220V, 50-60Hz) 57-500-03 AC/INLET ASSEMBLY (115V) 57-500-21 FILTER, POWER ENTRY MODULE (220V) 57-500-01 AC/OUTLET ASSEMBLY 123-0680 FUSE, .5A 250V (3AG) #313.500 (115V) 123-1179 FUSE, .3A SLOW BLOW, #313.300 (220V) 123-0355 FUSE HOLDER...
  • Page 16 PARTS CATALOG GROUP 2A – MOTOR DRIVE PART NO. DESCRIPTION QTY. 57-100-16 DRIVE ROLLER 123-0036 ROLL PIN 57-100-80 PULLEY, 12XLO 123-0771 BELT, 120XLO31 123-0322 SET SCREW, 8-32 x 1/4 57-100-78 MOTOR PULLEY, 28 TEETH 123-0017 SCREW, 10-32 x 1/4 PH TRUSS HD. CD-301-06 MOTOR BRACKET 57-100-85...
  • Page 17 PARTS CATALOG GROUP 3 – LABELS PART NO. DESCRIPTION QTY. 57-550-25 DECAL, POWER ENTRY (115V) 57-550-30 DECAL, POWER ENTRY (220V) 123-1033 LABEL, CAUTION DISCONNECT POWER 123-1115 LABEL, CAUTION/ DOUBLE POLE 123-1962 DECAL, DATA PLATE GENERIC 123-1121 LABEL, CAUTION REVERSE SWITCH 123-2597 LABEL, CAUTION EXPOSED ROLLER -14-...
  • Page 18 PARTS CATALOG GROUP 4 – WHEEL GUIDE AND BRACKET ASSEMBLY PART NO. DESCRIPTION QTY. PART NO. DESCRIPTION QTY. 57P-601-11 WHEEL BRACKET 95-105-19 MEDIA GUIDE KNOB ASSEMBLY 123-0017 SCREW, 10-32 x 1/4 PH TRUSS HD. 57-601-13 FORK 57-601-10 57P-601-05 WHEEL ASSEMBLY 57-150-27 BRACKET 11.1...
  • Page 19 PARTS CATALOG GROUP 5 – DT-255 LEFT-TO-RIGHT DROP TRAY (OPTIONAL) PART NO. DESCRIPTION QTY. 123-0068 WASHER, #10 PLAIN, SS 18-8 57P-602-04 DROP TRAY BASE 57P-602-01 WHEEL GUIDE AND BRACKET ASSEMBLY (SEE GROUP 6B) 29-400-16 29-400-28 KNOB ASSEMBLY, 10-32 x 1/2 25P-252-09 DROP TRAY PLATFORM 25P-252-17...
  • Page 20 PARTS CATALOG GROUP 5A – DT-255 REAR WHEEL GUIDE AND BRACKET PART NO. DESCRIPTION QTY. 57P-602-01 WHEEL GUIDE AND BRACKET ASSEMBLY 123-0017 SCREW, 10-32 x 1/4 PH TRUSS HD. 57-602-10 WHEEL ROD 57P-602-11 BRACKET 57-601-13 FORK 95-105-19 MEDIA GUIDE KNOB ASSEMBLY 57P-601-05 WHEEL ASSEMBLY 123-0017...
  • Page 21 PARTS CATALOG GROUP 6 – DK-700 DRYER KIT PARTS (OPTIONAL) -18-...
  • Page 22 PARTS CATALOG GROUP 6 – DK-700 DRYER KIT PARTS (OPTIONAL) PART NO. DESCRIPTION QTY. PART NO. DESCRIPTION QTY. 123-0002 SCREW, 10-32 x 3/8 PH UNDERCUT SS 57-601-10 WHEEL ROD 123-0017 SCREW, 10-32 x 1/4 PH TRUSS HD. 57-601-13 FORK 123-1135 SCREW, 6-32 x 1/4 PH TRUSS HD.
  • Page 23 PARTS INDEX PART NO. GROUP PART NO. GROUP PART NO. GROUP 123-0002 123-1987 57-500-09 123-0017 123-2067 57-500-10 123-0017 123-2078 57-500-11 123-0017 123-2597 57-500-12 123-0017 20-100-38 57-500-13 123-0017 24-101-11 57-500-14 123-0017 15.1 25P-252-09 57-500-15 123-0024 25P-252-17 57-500-16 123-0036 25P-252-20 57-500-16 123-0068 25P-252-22 57-500-17 123-0100...
  • Page 24 PARTS INDEX 90-103-52 94-104-06 95-105-19 95-105-19 95-105-19 CD-300-21 CD-300-21 CD-300-21 15.4 CD-300-21 CD-301-06 DT-250 DT-255 DT-255 -21-...
  • Page 26 © Copyright 2017 Astro Machine Corporation Elk Grove Village, Illinois 60007 01/16/2017 Part Number: 200-CD700 Rev F...
