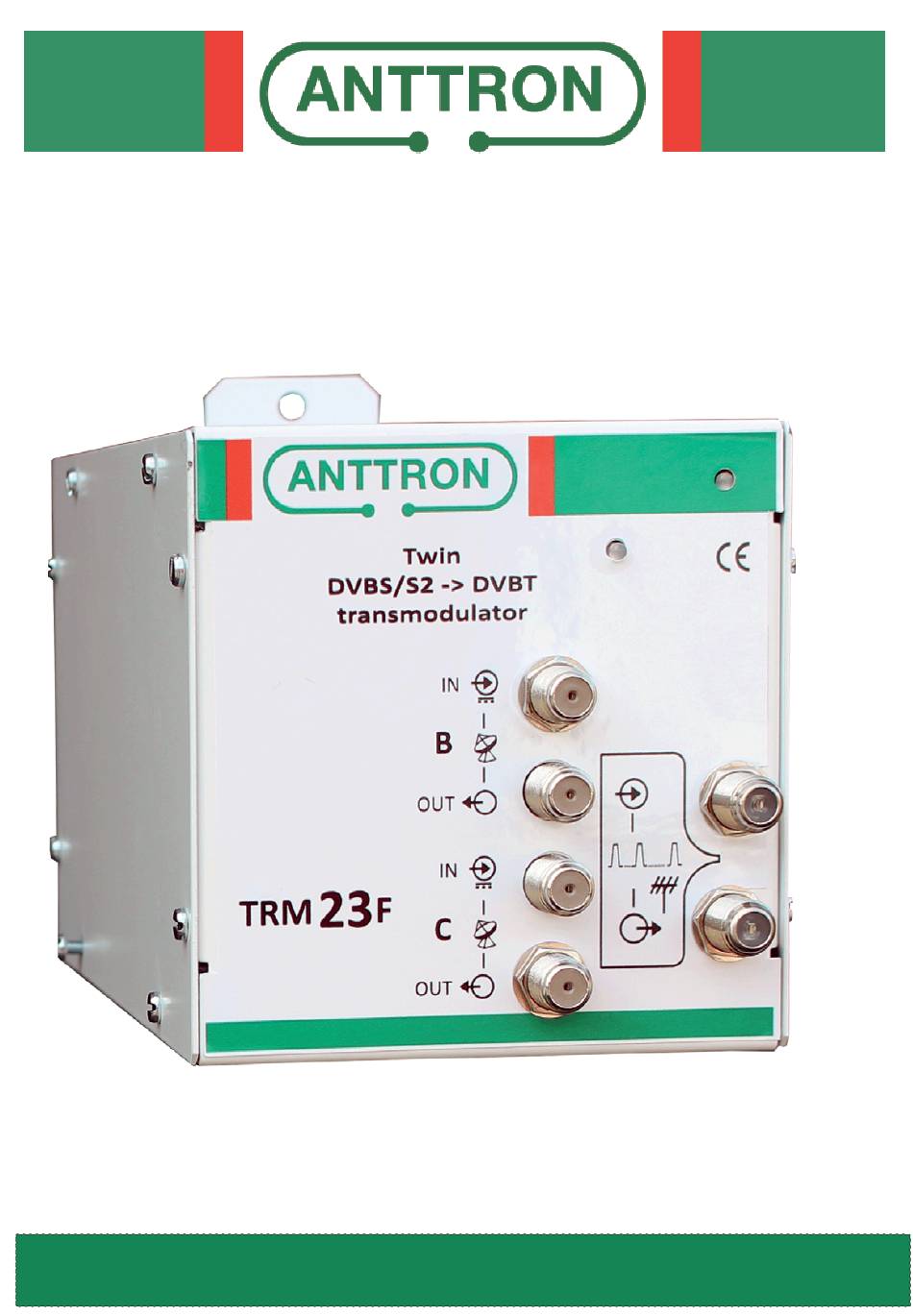

- Page 1 TRM23F DVBS/S2 -> DVBT Transmodulator USER MANUAL V1.0...
-
Page 2: Table Of Contents
TRM23F USER MANUAL CONTENTS 1 - Safety considerations............... page 3 2 - Functional description of TRM23F..........page 4 3 - Description of the diff erent elements......... page 4 4 - Installing the software DTVIface ..........page 5 5. Programming the TRM23F............ -
Page 3: Safety Considerations
TRM23F USER MANUAL 1. - Safety considerations 1.1 CONNECTING TO THE MAINS SUPPLY This product has to be connected to the mains supply. If there is the slightest doubt concerning the type of connection available on the installation, please contact your supplier of electricity. Before car- rying out maintenance operation or modifi... -
Page 4: Description Of The Diff Erent Elements

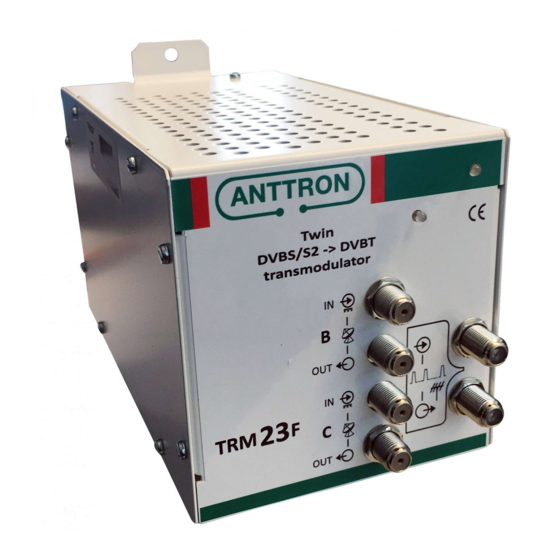

USER MANUAL 2 - Function of TRM23F The TRM23F is a transmodulator. It allows to receive satellite programs (DVBS/S2) from two diff erent satellite transponders. The programs of these transponders can be selected and modulated in DVBT. For this, you have available three DVBT channels. The output channel of these three can be freely chosen in VHF or UHF band. -
Page 5: Installing The Software Dtviface
DTVIface for installing the software on your computer. 5. - Programming the TRM23F When you fi rst connect the TRM23F with an USB cable to your PC and you launch DTVIface, you will see following screen : On the left side you see the icons related to the DTVIface functions. -
Page 6: Programming The Satellite Receiver Module (Dtvrr2)
TRM23F USER MANUAL 5.1 - Programming the satellite receiver module (DTVRR2) In the left corner above you can select the tuner B or C. For each tuner you can input the satellite fre- quency, symbol rate, polarity and DiSEqc input (in the case you are making connection to a satellite multiswitch.) -
Page 7: Programming The Modulator Module (Dtvdm3F)
TRM23F USER MANUAL 5.2 - Programming the modulator module (DTVDM3F) In the right corner above you can program the DVBT modulator DTVDM3F. You can enter NIT version, ONID, NID, LCN mode and Network Name. For each output channel (use the small... -
Page 8: Technical Specifi Cations
TRM23F USER MANUAL 6. Technical specifi cations SAT inputs : 2 Frequency 950-2150 MHz Input level -65 dBm à -25 dBm Inser on loss < 2.5 dB LNB supply 13/18V - Tone - DiSEqC (300mA each input) Demodulator/decoder DVB-S Modula on - symbol rate QPSK - 1….45 MSps...
