Audio Dimension PM12 Manual

Projector ceiling mount, available at digital cinema

Enlarged version

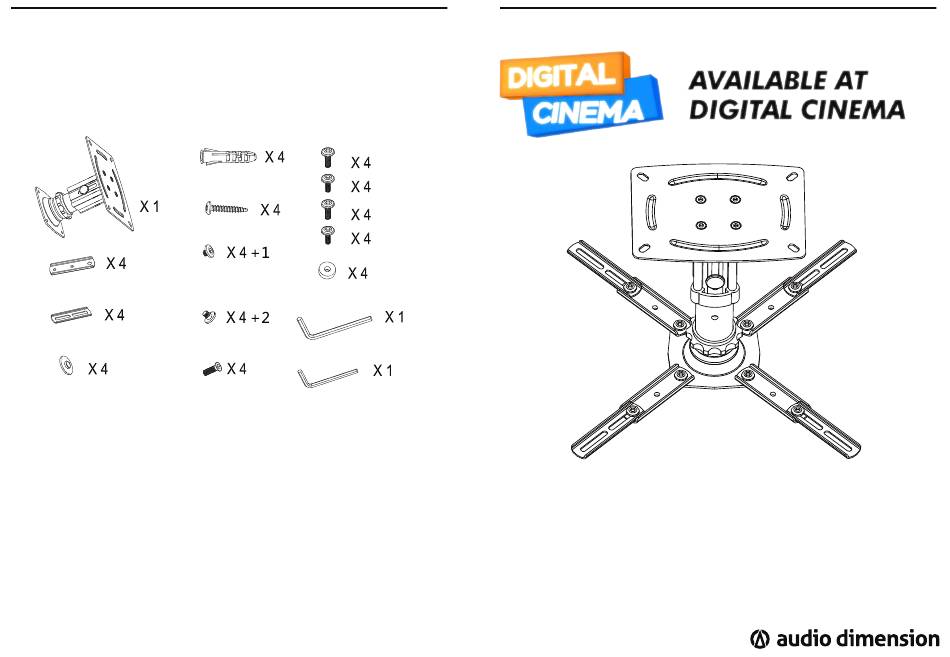

PM12 Projector Ceiling Mount

Part List

Depending on your mount model - The top mounting plate may need to be

assembled to the adjustment pole.

*Use the small hex key and the 4 ﬂat head screws.

product, product speciﬁcations

and data are subject to change

without notice to improve

reliability, function,design or

otherwise. Engineered in Australia.

Made in China.

Table of Contents

Do you have a question about the PM12 and is the answer not in the manual?

Page 1 PM12 Projector Ceiling Mount Part List Depending on your mount model - The top mounting plate may need to be assembled to the adjustment pole. *Use the small hex key and the 4 ﬂat head screws. © AudioDimension.com.au. All product, product speciﬁcations...
Page 2 Assembly Instructions This is the most important step - Using the large hex key, tighten the main bolt very tightly. Note: The longer option mounts include a cable clip. Make sure the adjustment knob stays loose even after the main bolt is tight. If the adjustment knob is tight, loosen it and retighten the main bold.
Page 3 Reattach the base plate to the top mounting plate using the thumb bolt. Prepare the top plate to be mounted on the ceiling. Fasteners for certain types of ceiling are supplied, but the proper fastener for your particular ceiling may not be suplied.
Page 4 It is very important to use the partially threaded screws and the plastic washer to Attach the base plate to your projector after preparing it. attach the legs to the base plate. The fully threaded screws are for extending the legs.
