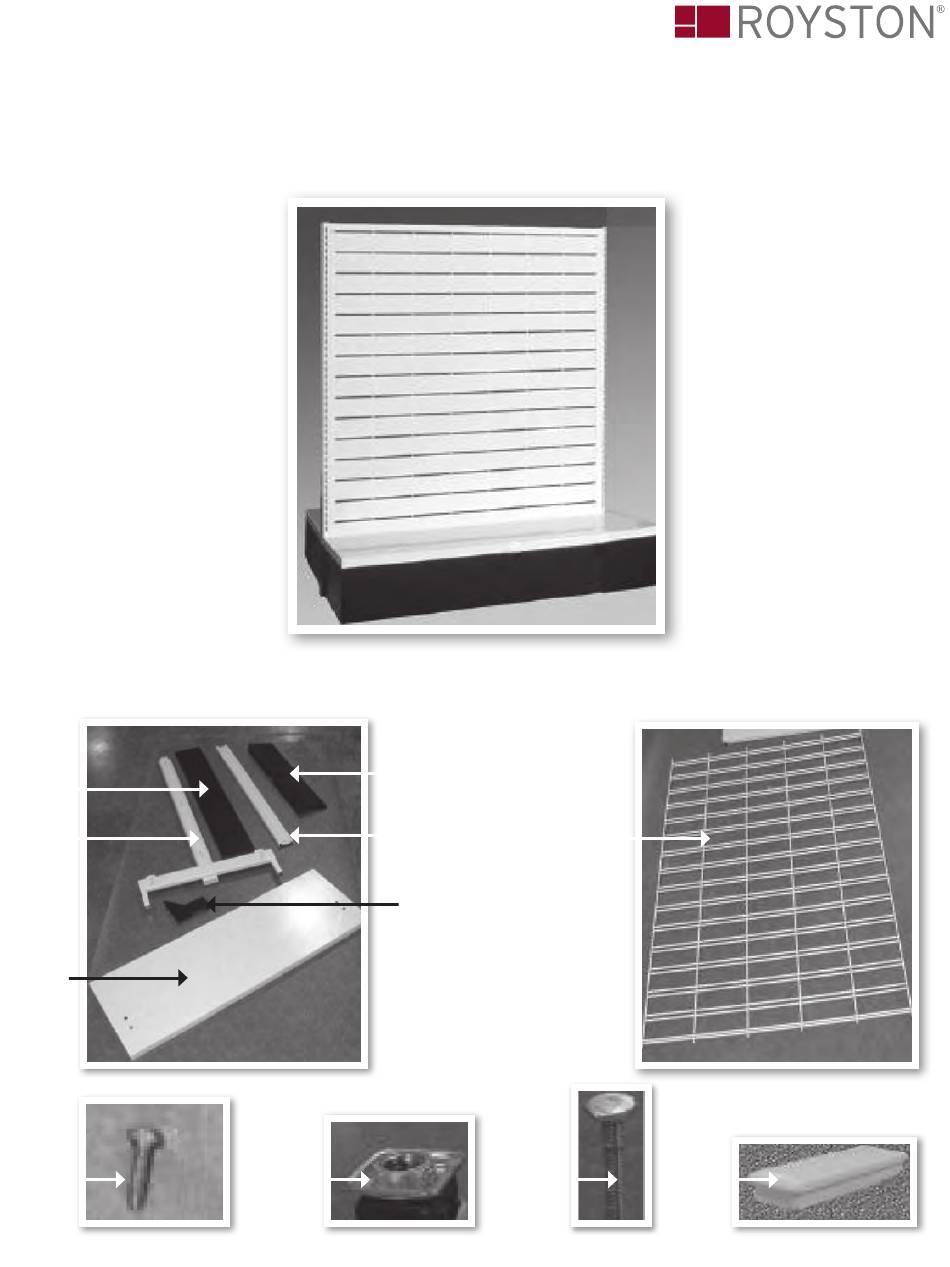

- Page 1 MODULAR MERCHANDISING ASSEMBLY: “T” UNIT Slatwall shown is optional PARTS: E (2) A (2) F (1) B (2) G (2) (2 left hand, 2 right hand) D (2) H (8) J (4) K (4) L (4)
- Page 2 MODULAR MERCHANDISING ASSEMBLY: “T” UNIT ASSEMBLING FEET: Drive Plugs (J) into bottom of Uprights (B). Tap all the way in. Leveler Screws (K) should be screwed into (J). ASSEMBLING FRAME: Insert Wings (C) into both sides of each Upright (B) as shown. Insert the Wire Grids Note: the Wire Grids (G) into the channels...
- Page 3 MODULAR MERCHANDISING ASSEMBLY: “T” UNIT ASSEMBLING FRAME: G (2) Insert open ends of the Wire Grids G (2) (G) into the channels on the second Upright (B) as shown. Next, fasten with Screws (K) as Insert Screws (H) into previously described. holes at top and bottom of both sides of Upright.
- Page 4 Locking completely down. Tabs SHELVES: Shelves can be added at either a right angle or 15 degree tilt. Royston LLC One Pickroy Road Jasper, GA 30143 800.334.1766 770.735.3456 770.735.4017 roystonllc.com #10013660 ©Royston LLC. All rights reserved. 061616...
