TIMETRAX SYNC™ COUNT UP/COUNTDOWN
DIGITAL TIMER CONTROLLER
Models CTPLATEBUZ/CBPLATEBUZ Instructions

OVERVIEW

The TimeTrax Sync™ Count Up/Down or Code Blue Controller is used in conjunction with a TimeTrax Sync™ Digital
Timer (sold separately) to monitor elapsed or remaining time during critical events, educational testing/instruction,
manufacturing processes, lab testing, recreational activities, seminars, transportation depot applications, broadcasting and
other time-sensitive events. Features include a Start/Pause button to start or stop counting function. A built-in buzzer
signals the user when timer reaches zero in countdown mode.
Use Count Up/Countdown or Code Blue Controller with any of the following TimeTrax Sync™ Digital Timer models:
9D26BRCT, S9D2R6CALS, S9D4R6CALB, S9D2B6CALB, S9D2R6CAUB, S9D4R6CAUB, S9D2B6CAUB, S9D4B6CAUB.
TimeTrax Sync™ Digital Timers may also be used in conjunction with a TimeTrax Sync™ RF Wireless Transmitter to
receive accurate, official time signal.

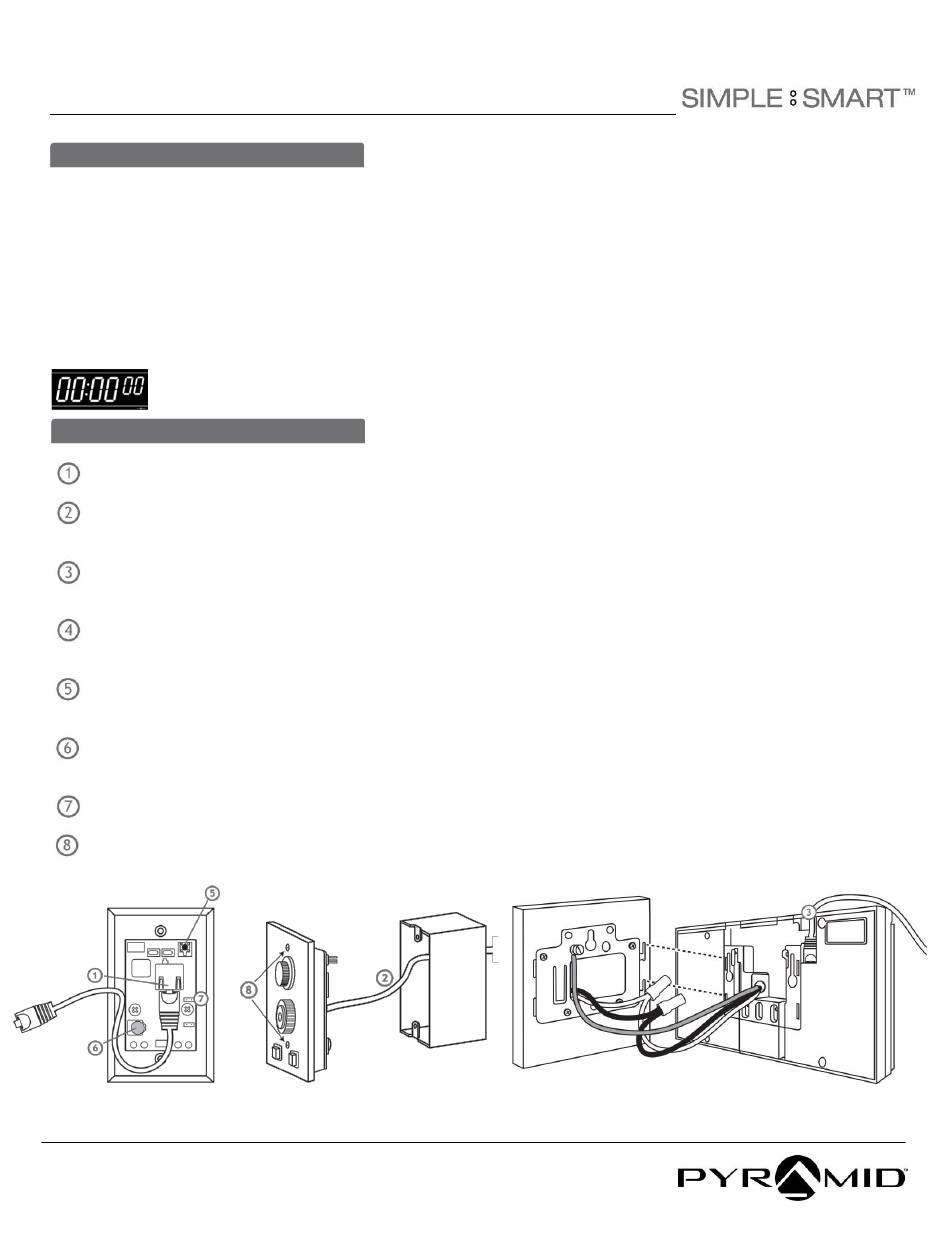

INSTALLATION

Connect RJ45 cable into port located in compartment on back of Controller switch plate.
Route the RJ45 cable through standard single gang electrical box (not included). Pull cable through wall
cavity and out to digital timer installation location.
Plug other end of RJ45 cable into port located in compartment on back of TimeTrax Sync™ Digital
Timer (sold separately). The Controller switch plate is able to control more than one Digital Timer.*
Wire TimeTrax Sync™ Digital Timer according to installation instructions.
CAUTION: 110V CLOCK WIRING SHOULD BE COMPLETED PER ELECTRICAL CODE AND PERFORMED BY A LICENSED ELECTRICIAN.
Before mounting controller switch plate to electrical box, push the buzzer volume test button located on
the back of switch plate in the top right hand corner.
To increase buzzer volume, turn blue volume control button clockwise using a flathead screwdriver. To
decrease buzzer volume or deactivate buzzer, turn blue volume button counter clockwise.
To enable "pulsating" buzzer sound, remove jumper from J2 and install jumper on J1.
Mount Controller switch plate to electrical box using two screws provided.
*Use RJ45 Y-Splitter (part no 41270) to daisy chain more than one digital timer.
I2264 Rev. C
888.479.7264
pyramidtimesystem.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TIMETRAX SYNC CTPLATEBUZ and is the answer not in the manual?

Questions and answers

Summary of Contents for Pyramid Time Systems TIMETRAX SYNC CTPLATEBUZ

  • Page 1 TIMETRAX SYNC™ COUNT UP/COUNTDOWN DIGITAL TIMER CONTROLLER Models CTPLATEBUZ/CBPLATEBUZ Instructions OVERVIEW The TimeTrax Sync™ Count Up/Down or Code Blue Controller is used in conjunction with a TimeTrax Sync™ Digital Timer (sold separately) to monitor elapsed or remaining time during critical events, educational testing/instruction, manufacturing processes, lab testing, recreational activities, seminars, transportation depot applications, broadcasting and other time-sensitive events.
  • Page 2 TIMETRAX SYNC™ COUNT UP/COUNTDOWN DIGITAL TIMER CONTROLLER Models CTPLATEBUZ/CBPLATEBUZ Instructions COUNT UP MODE OPERATION To start COUNT UP, push red START/PAUSE button. Timer counts up from 00:00:00 to 99:59:59. To pause during COUNT UP, push red START/PAUSE button. Timer stops counting. Push red START/PAUSE button again to restart COUNT UP.
  • Page 3 TIMETRAX SYNC™ COUNT UP/COUNTDOWN DIGITAL TIMER CONTROLLER Models CTPLATEBUZ/CBPLATEBUZ Instructions ACCESSORIES PART# DESCRIPTION 9D26BRCT TimeTrax™ Sync Digital Timer, 2.5” x 6 digit, red, black bezel, 105-240V AC S9D2R6CALS TimeTrax™ Sync Digital Timer, 2.5” x 6 digit, red, silver bezel, 105-240V AC S9D4R6CALB TimeTrax™...
  • Page 4 TIMETRAX SYNC™ COUNT UP/COUNTDOWN DIGITAL TIMER CONTROLLER Models CTPLATEBUZ/CBPLATEBUZ Instructions WARRANTY 1-YEAR LIMITED WARRANTY Pyramid warranties this product to the original user against defective material or workmanship for a period of 1 year from date of purchase. The manufacturer’s responsibility under this Warranty is limited to repair or replacement of defective part or parts. Pyramid reserves the right to determine whether parts failed because of defective material, workmanship, or other causes.
