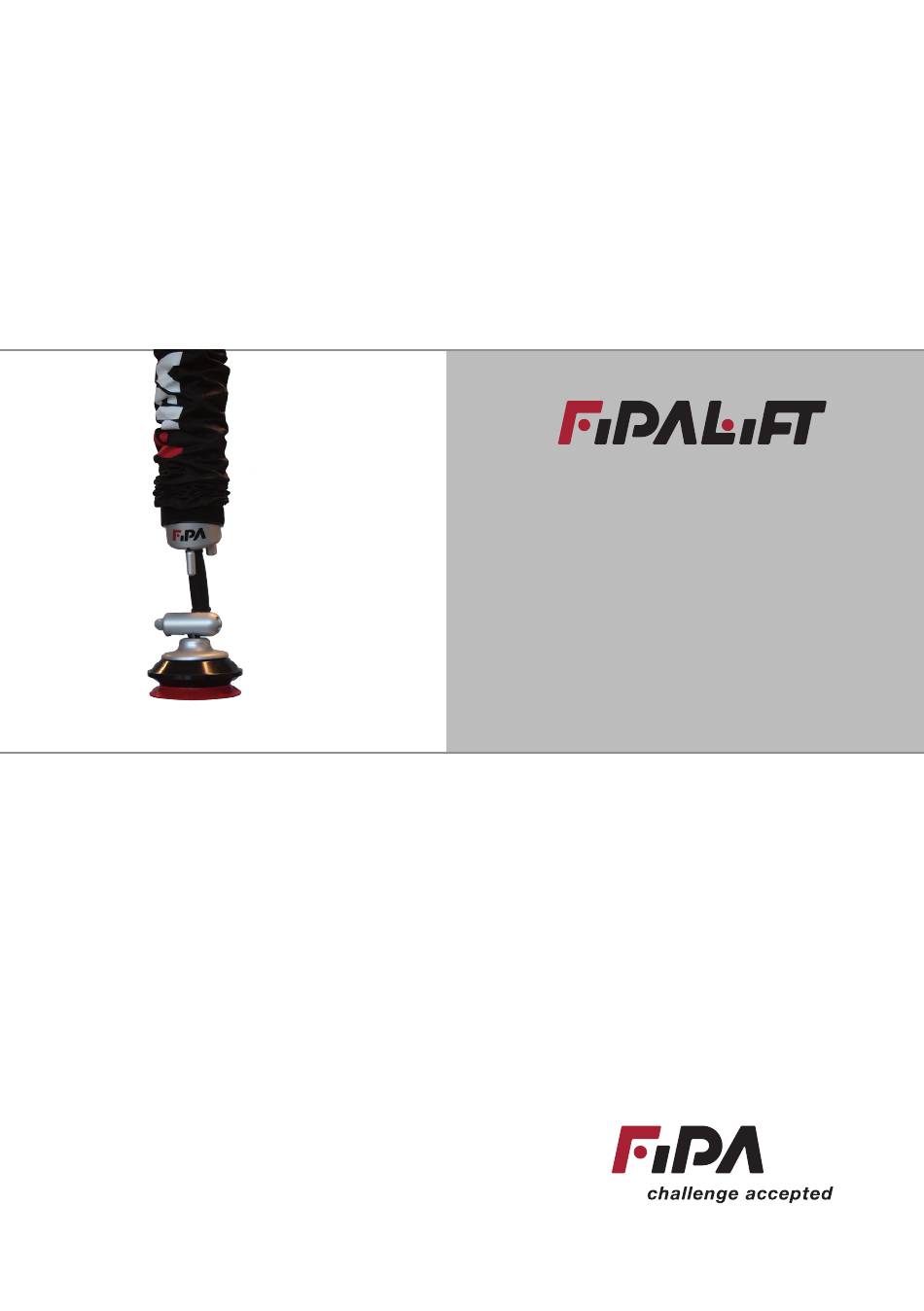

- Page 1 Operating and maintenance instructions SH.BAS.SMA.80 SH.BAS.SMA.100 SH.BAS.SMA.120 SH.BAS.SMA.140 FIPALIFT Smart...
- Page 2 EC declaration of conformity Company: FIPA GmbH Freisinger Str. 30 85737 Ismaning Germany www.fipa.com declares under its sole responsibility that the FIPALIFT Smart: SH.BAS.SMA.80 SH.BAS.SMA.100 SH.BAS.SMA.120 SH.BAS.SMA.140 referred to in this declaration are being produced according to the following regulations:...
-
Page 3: Table Of Contents
Table of contents 1. INTRODUCTION 2. SAFETY 3. PRODUCT DESCRIPTION 4. INSTALLATION AND COMMISSIONING 5. OPERATION 6. MAINTENANCE 7. TROUBLESHOOTING 8. SPECIFICATIONS Symbols Warning Important information Commissioning Check... -
Page 4: Introduction
Please take note of the separate descriptions for these system parts. FIPA is constantly striving to develop and improve the design and construction of its lifting equipment. Therefore FIPA reserves the right to make modifications to the design and technical configuration without notice. -
Page 5: Safety
FIPALIFT Smart 2. SAFETY Read these operating instructions carefully before initial commissioning and note the following safety rules. The FIPALIFT Smart tube lifter may only be operated and maintained by personnel who have read these operating instructions and fully understand the content. Display the operating instructions near the tube lifter so as to be easily accessible and make operators aware of them. - Page 6 FIPALIFT Smart Observe the rules and regulations of your national authorities and institutions for occupational safety and operation of lifting equipment. Important information > It is important to read the entire manual thoroughly before installing and commissioning the system and familiarise yourself with the system. >...
-
Page 7: Product Description
FIPALIFT Smart 3. PRODUCT DESCRIPTION Upper swivel joint Suspension eye Plas c adapter Upper Non-return valve swivel joint Control unit Balancing valve Vacuum hoses Balancing bu on Release lever Li ing unit Control lever Li ing tube Handgrip Filter holder Filter unit Protec ve coa ng Filter cover... -
Page 8: Installation And Commissioning
> The employee responsible for installation of the FIPALIFT Smart tube lifter must ensure that the suspension structure (e.g. the FIPA crane system or the FIPA jib crane or similar) is of suffi- cient size to hold the dead weight of the tube lifter including maximum load plus an adequate safety factor. - Page 9 For the correct design, please contact our Technical Sales Department (+49 89 962489-0). The pumps are not included in the delivery and must be ordered separately. The following pumps are available from FIPA and are approved for the FIPALIFT Smart tube lifter: Technical data Item no.
- Page 10 FIPALIFT Smart Technical data Item no. DT.40B-1 DT.40B-3 DT.60C-3 Suction power at 50 Hz [m Suction power at 60 Hz [m Final vacuum [%] Power supply at 50 (60) Hz [V] 220 - 240 Delta: 220-255 (220-266) Delta: 230 (265) Star: 380-440 (380-460) Star: 400 (460) Current consumption at 50 (60) Hz [A]...
- Page 11 (e.g. the FIPA crane system or the FIPA jib crane or similar). Secure the vacuum hose to the top swivel joint of the lifting unit and to the air filter.
-
Page 12: Operation
The maximum permitted load must be equal to the maximum load of the installed tube lifter and the maximum load of the lifting system. Please note that these signs are not provided by FIPA. 5. OPERATION... - Page 13 FIPALIFT Smart Operating handle 1. Operating handle in outer position: - The lifting unit is in its highest position with load. - Without the lifting unit is moved into its preset neutral position. 2. Operating handle in half-pressed position: - The load is raised or lowered according to pressure on the lever. 3.
- Page 14 FIPALIFT Smart Rotating the load > The entire control unit with the load can be rotated. > The load can be freely rotated even if the control unit is held still. The option of rotating the load while the control unit remains fixed is especially useful when it is necessary to manoeuvre the load in narrow gaps.
-
Page 15: Maintenance
> The device must be switched off during servicing work and secured against being switched back on. > Only FIPA original spare parts are to be used for maintenance and repairs. FIPA original spare parts are matched to the necessary loads and forces of the tube lifter. Using other spare parts can lead to serious defects and to the warranty being voided. -
Page 16: Troubleshooting
FIPALIFT Smart 7. TROUBLESHOOTING Fault: The load is not lifted or is lifted more slowly than normal. Is the air filter blocked? Shake out the filter and clean with the vacuum cleaner. Replace the filter if it is damaged. ... - Page 17 FIPALIFT Smart Fault: The load is not lowered slowly during the power failure test. See "Weekly maintenance". Please contact our Technical Sales Department. Fault: It is impossible to set the desired no-load neutral position. Unfasten the control unit from the lifting tube. ...
-
Page 18: Specifications
FIPALIFT Smart 8. SPECIFICATIONS FIPALIFT Smart dimensions Ø 19... - Page 19 FIPALIFT Smart Filter unit Cover Flat washers Groove Terminal clamps Spindle Fi ng Filter element Wing nut Ø 51 Ø 9 Housing Ø 210...
- Page 20 FIPALIFT Smart Lifting tube and suspensions Suspension double Suspension single Li ing tube Protec ve coa ng Adapter plate Plas c adapter Gasket...
- Page 21 FIPALIFT Smart Notes...
- Page 22 Headquarters: FIPA GmbH Freisinger Straße 30 85737 Ismaning / Germany Phone +49 89 962489-0 +49 89 962489-11 info@fipa.com | www.fipa.com FIPA Inc. FIPA Ltd. 1855 Evans Road The Trendy Plaza, 10/30 1A Floor Cary, NC 27513 / USA Sukhumvit 13 Klong Toey Nua, Wattana...
