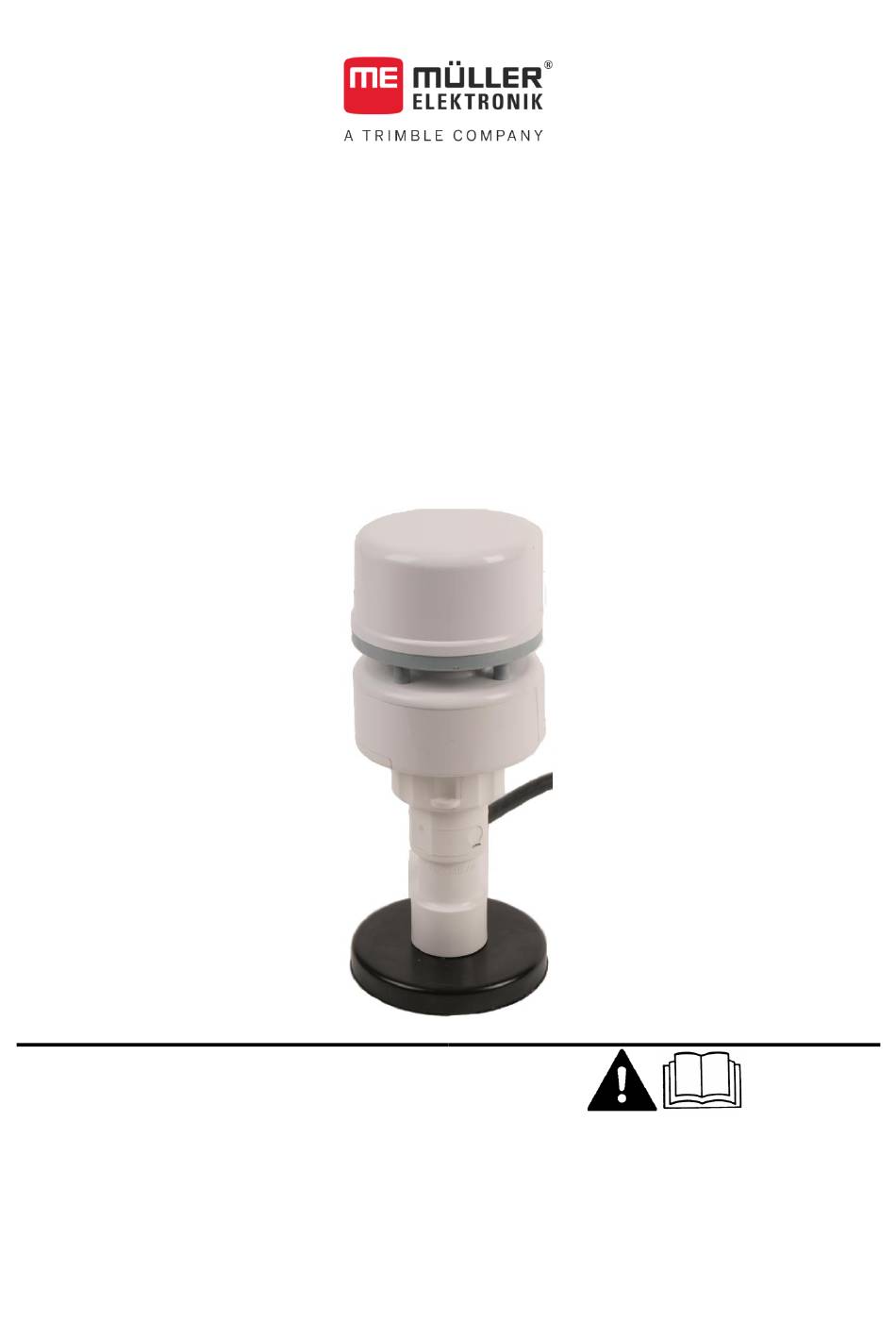

Installation and operating instructions
Version: V7.20171121
3030247102-02-EN
Weather Station
Read and follow these operating instructions.
Keep these operating instructions in a safe place for
later reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Weather Station and is the answer not in the manual?

Questions and answers

Summary of Contents for Muller Elektronik Weather Station

  • Page 1 Installation and operating instructions Weather Station Version: V7.20171121 3030247102-02-EN Read and follow these operating instructions. Keep these operating instructions in a safe place for later reference.
  • Page 2 Company details Document Installation and operating instructions Product: Weather Station Document number: 3030247102-02-EN As of software version: V.03.686 Original language: German Copyright © Müller-Elektronik GmbH & Co.KG Franz-Kleine-Straße 18 33154 Salzkotten Germany Phone: ++49 (0) 5258 / 9834 - 0 Fax: ++49 (0) 5258 / 9834 - 90 Email: info@mueller-elektronik.de...
  • Page 3: Table Of Contents

    Connecting the Weather Station to a terminal 3.2.2 Connecting the Weather Station directly to the ISOBUS in-cab-connector 3.2.3 Connecting the Weather Station with a Deutsch plug to the vehicle's ISOBUS Layout of work screen Configuration Calibrating the compass Configuring the screen layout...
  • Page 4 Table of contents 6.3.5 4-pin Deutsch plug for connection to the vehicle's ISOBUS 6.3.6 4-pin Deutsch socket for connection to the vehicle's ISOBUS Article overview 3030247102-02-EN...
  • Page 5: For Your Safety

    For your safety Basic safety instructions For your safety Basic safety instructions Please read the following safety instructions carefully before using the product for the first time. ▪ Before installation, switch off the engine and the tractor's ignition. ▪ Do not drop the components on the floor because they can be damaged. ▪...
  • Page 6: Disposal

    For your safety Disposal CAUTION This signal word identifies hazards that could potentially cause minor or moderate physical injury or damage to property, if not avoided. NOTICE This signal word identifies hazards that could potentially cause damage to property, if not avoided. There are some actions that need to be performed in several steps.
  • Page 7: Product Description

    The Weather Station is a sensor, which can determine different weather data, and display it on an ISOBUS terminal. If a Weather Station is connected to a terminal, the ISOBUS-TC application will save the determined weather data. The Weather Station can determine the following values. All values can be displayed using the metric, American or imperial systems: ▪...
  • Page 8 The following items are included in the delivery as standard: ▪ Weather Station with connection cable ▪ Magnetic base and adhesive band for magnetic fixture of the Weather Station [ ➙ 9] ▪ Base for screwing on the Weather Station [➙ 11] ▪...
  • Page 9: Mounting And Installation

    Mounting and installation Installing the Weather Station Mounting and installation Installing the Weather Station You can either install the Weather Station using its magnetic base, or screw it to the roof of your vehicle. 3.1.1 Installation with magnetic base CAUTION Crushing hazard due to very powerful magnet The Weather Station has a very powerful magnetic base.
  • Page 10 11. Remove the protective paper from the 3M adhesive plate and bond the metal plate onto this. Place the magnetic base and Weather Station onto the metal plate. Ensure that the Weather Station is firmly secured. The recess must face the direction of travel.
  • Page 11: Installation With Screws

    Mounting and installation Installing the Weather Station 3.1.2 Installation with screws Procedure 4. Identify an appropriate position on the roof of the vehicle. This position must not be in the slipstream. V7.20171121...
  • Page 12: Connecting The Weather Station

    5. Use alcohol to clean the position on which you want to mount the Weather Station. Screw the Weather Station firmly onto the roof of the vehicle. Ensure that the Weather Station is firmly secured. The recess must face the direction of travel.
  • Page 13 1. Switch off the terminal. 2. Route the cable of the Weather Station into the vehicle cab. 3. Connect the connector from the Weather Station to the connector of the communication module. 4. Connect connector A of the communication module to the CAN bus socket of the terminal.
  • Page 14: Connecting The Weather Station Directly To The Isobus In-Cab-Connector

     You have now installed the Weather Station. 1. Route the cable of the Weather Station into the vehicle cab. 2. Connect the connector from the Weather Station to the connector of the communication module. 3. Connect the CPC connector of the communication module to the ISOBUS in- cab-connector of your vehicle.
  • Page 15: Connecting The Weather Station With A Deutsch Plug To The Vehicle's Isobus

    Mounting and installation Connecting the Weather Station 3.2.3 Connecting the Weather Station with a Deutsch plug to the vehicle's ISOBUS Deutsch socket for connection to Connection of the communication the Deutsch plug of the vehicle's module ISOBUS Deutsch plug for connection to the...
  • Page 16: Layout Of Work Screen

    Layout of work screen Layout of work screen You can view directly all of the data determined by the Weather Station on the work screen: Driving speed Direction of apparent wind GPS status Speed of apparent wind ISOBUS TC status...
  • Page 17: Configuration

    Configuration Calibrating the compass Configuration Calibrating the compass After installation on any new vehicle, you must calibrate the Weather Station compass. Procedure 1. On the work screen, press: > > 2. Select "Yes". - Start the compass calibration. 4. Wait until the dot on the screen flashes yellow.
  • Page 18 Configuration Configuring the screen layout Layout in the main window Layout of the compass rose in the main window Layouts in the header Layouts in the additional window The following weather data may appear: Value Icon True wind Apparent wind Temperature Air pressure Air humidity...
  • Page 19: Configuring Alarms

    Configuration Configuring alarms Value Icon Delta T Dew-point Drift Grassland Fire Danger Index Configuring alarms You can set measurement values for different weather data for which an alarm is triggered. See the screen to see which alarms you can set. You can also set a permissible range.
  • Page 20: Configuring The Unit Of Wind Speed

    1. On the work screen, press: 2. Select "Yes". ⇨ The Weather Station application will shut down. - You can now launch of the Weather Station application with the factory settings. Configuring the grassland fire danger index The grassland fire danger index describes the fire risk for different plants.
  • Page 21 Configuration Configuring the grassland fire danger index Cured Colour Physiological Change 20 % Yellowish-Green Seeds heads maturing and seed dropping. 30 % Yellowish-Green Most seeds heads mature and seed dropping. 40 % Yellow-Green Most seeds heads mature and seed dropping. 50-60 % Straw - odd patch of Up to 1/2 of all stems have dropped their...
  • Page 22: Technical Specifications

    Model version of the Weather Station. Serial no. Weather Station serial number Sensor self-test Was the sensor's self-test successful? Procedure 1. On the work screen, press: Technical data for Weather Station with communication module Parameter Value Operating voltage 9-16 V Temperature range -20°C to +55°C Power input <2W...
  • Page 23: Connector Pin Assignment

    Technical specifications Connector pin assignment Connector pin assignment 6.3.1 9-pin Sub-D connector Pin no. Signal Pin no. Signal CAN_L CAN_L IN CAN_H IN CAN_GND CAN_EN OUT CAN_H +12VE CAN_EN IN 6.3.2 9-pin CPC connector Pin no. Signal Pin no. Signal Relay TBC PWR (CAN_EN_IN)
  • Page 24: 8-Pin M12 Plug

    6.3.3 8-pin M12 plug Pin no. Signal Pin no. Signal CAN_H CAN_L 6.3.4 4-pin Deutsch plug for connection to the Weather Station Pin no. Signal Pin no. Signal +12VE CAN_H CAN_L 6.3.5 4-pin Deutsch plug for connection to the vehicle's ISOBUS Pin no.
  • Page 25 Technical specifications Connector pin assignment 6.3.6 4-pin Deutsch socket for connection to the vehicle's ISOBUS Pin no. Signal Pin no. Signal +12VE CAN_H_OUT CAN_L_OUT V7.20171121...
  • Page 26 Article overview Article overview Item number Item name 3030247102 Weather Station with bracket but no communication module 3030247105 Weather Station with bracket and communication module with Sub-D connection cable for Sub-D connection to the terminal 3030247101 Communication module with Sub-D connection cable for Sub-D...
