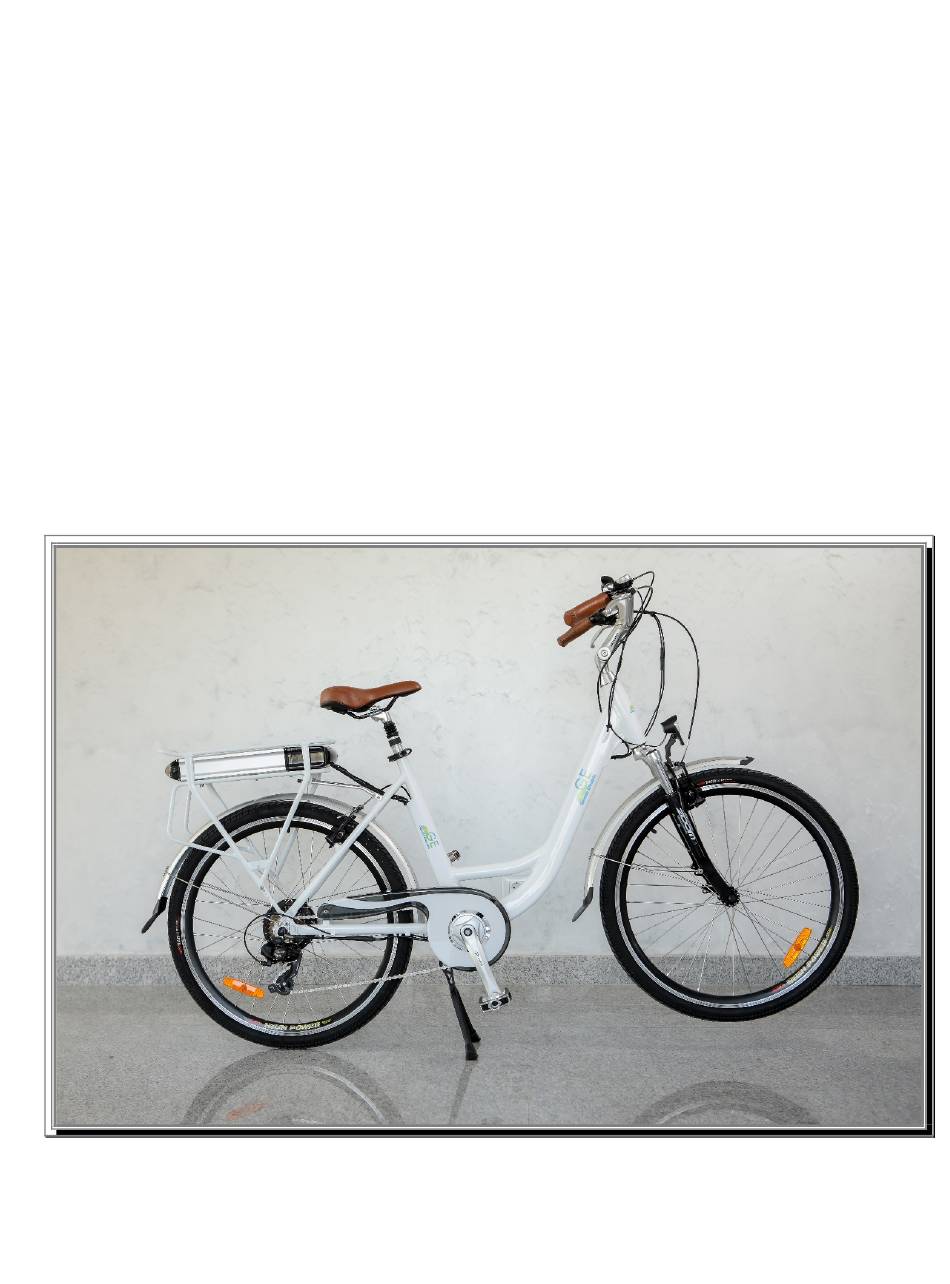

Electric City Bike

City Bike by Gentle Electric

A new era of Urban Mobility

INSTRUCTION MANUAL

Thank you for purchasing our product!

BEFORE USE, PLEASE READ CAREFULLY THIS INSTRUCTION MANUAL INCLUDING THE

WARRANTY TERMS AND CONDITIONS PROVIDED HERE.

Table of Contents

Need help?

Do you have a question about the City Bike and is the answer not in the manual?

Questions and answers

Summary of Contents for Gentle Electric City Bike

Page 1 Electric City Bike City Bike by Gentle Electric A new era of Urban Mobility INSTRUCTION MANUAL Thank you for purchasing our product! BEFORE USE, PLEASE READ CAREFULLY THIS INSTRUCTION MANUAL INCLUDING THE WARRANTY TERMS AND CONDITIONS PROVIDED HERE.
Page 2 CONTROL. Check for local laws and regulations to see where and how to legally use the GENTLE ELECTRIC bike. Obey all rules of the road applicable to vehicles and pedestrians. This manual contains information for basic usage of the GENTLE ELECTRIC bike.
Page 3: Table Of Contents
TABLE OF CONTENT MAIN PARTS & COMPONENTS ...................... 4 SAFETY ............................... 5 FITTING AND ADJUSTING ........................ 6 1. Handlebar ............................ 6 2. Saddle .............................. 7 SAFE OPERATION ............................ 7 1. Introduction of handlebar parts ...................... 7 2. Display Features .......................... 8 ELECTRIC BIKE SETTINGS ........................ 9 BATTERY AND CHARGER .
Page 4: Main Parts & Components
MAIN PARTS & COMPONENTS Magnetic compass Display Manual gearbox Controller Battery Front light Rear light PAS Sensor Motor...
Page 5: Safety
14. To provide adequate product protection, please do not drive the electric bike on a bad weather, such as rain and strong wind. 15. Do not ride the GENTLE ELECTRIC bike after consuming alcohol.
Page 6: Fitting And Adjusting
FITTING AND ADJUSTING 1. Handlebar To adjust the handlebars you need to loosen the 3 screws located on the handlebar (see photo), then place the handlebar in the position that ensures optimum comfort and finally to tighten the screws. High Adjusting Screws Side screws...
Page 7: Saddle
2. Saddle In order to adjust the fore/aft position of the seat, you need to loosen the screw under the saddle, then place the saddle so that it fits you perfectly and finally to o tighten the screw (see photo). To adjust the saddle height you needed to open the clamp under the saddle, then adjust the saddle at your desired position, and finally to close the clamp.
Page 8: Display Features
On the left there is the digital display (see photo). Display 2. Digital display features UP BUTTON Km/H SPEED (IN Km) START BUTTON MPH SPEED (IN Miles) DOWN BUTTON MXS MAXIMUM SPEED 0-5 PAS LEVEL AVS AVERAGE SPEED BATTERY LEVEL INDICATOR Km DISTANCE TRAVELLED (IN Km) CRUISE AUTOPILOT * Mil DISTANCE TRAVELLED (IN MILES) PAS PEDAL ASSIST DST CURRENT TRAVELLED DISTANCE CURRENT MOVING TIME ODO HODOMETER TTM TORQUE MEASUREMENT METHOD VOL BATTERY VOLTAGE INDICATOR...
Page 9: Electric Bike Settings
1. Battery Please charge the battery fully before first use of the GENTLE ELECTRIC bike. For future use, the battery can be charged at any time.
Page 10: Maintenance
Charging jack Battery charging level 2. Plug the charger plug in the charger point. 3. The electric bike battery can be removed and charged separately. (As shown in the picture below). Removing the battery Note: While charging, the light indicator of the charger is red, when it turns green, the battery is fully charged and you can stop charging.
Page 11 SPECIFICAȚIILE PRODUSULUI SISTEM ELECTRIC Motor 36V 250W Motor fără perii 36V/10Ah Baterie Litiu-Ion, SAMSUNG Baterie Detașabilă, cu circuit de protecție electrică Controler Controler inteligent 100~240V, 50-60Hz Încărcător Priză standard Afișaj Sistem de pedalare asistată Far LED CARACTERISTICI Viteză 25Km/h Autonomie 40-55km Sarcină...
