Summary of Contents for LUTZE IP67 DIOSWITCH

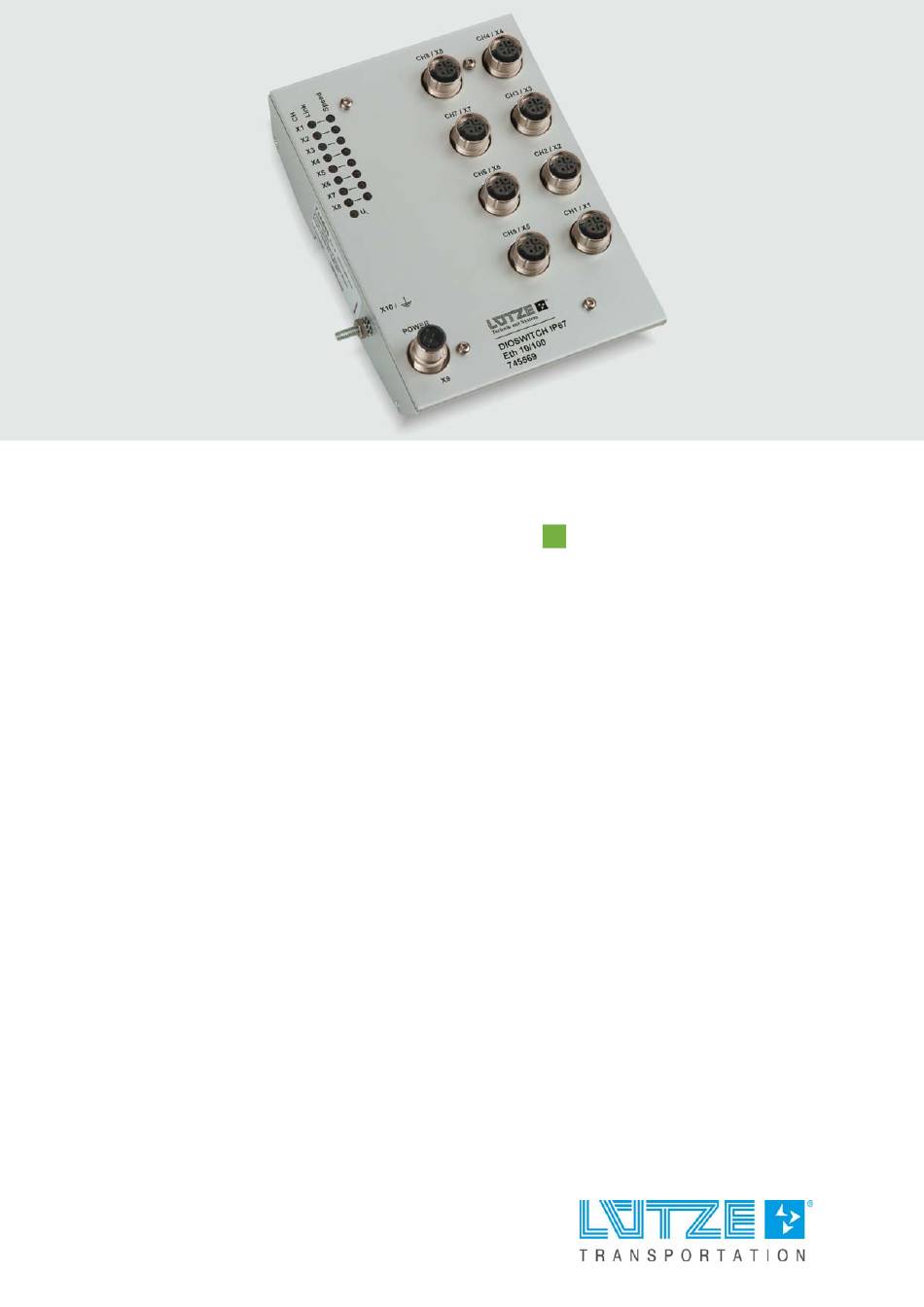

- Page 1 Operating Instructions IP67 DIOSWITCH 10/100 Base–T with 8 Ports Part-No. 745569 Version 1.09 02/07/2017...
- Page 2 Lütze Transportation GmbH Bruckwiesenstraße 17-19 D-71384 Weinstadt Tel.: +49 (0) 7151 6053-545 Fax: +49 (0) 7151 6053-6545 Sales.Transportation@luetze.de www.luetze-transportation.de...
-
Page 3: Table Of Contents
Possible Applications......................... 13 Diagnostics and LED Displays....................14 Technical Data ....................15 Block Diagram ........................... 17 Power Supply of the IP67 DIOSWITCH..................18 Ports of the IP67 DIOSWITCH ....................19 Functional Description................... 20 General Functions ........................20 8.1.1 Behaviour when applying the voltage ..................20 8.1.2 Link Detection .......................... -
Page 4: Introduction
IP67 DIOSWITCH Introduction Introduction This manual is part of the IP67 DIOSWITCH. It contains important information about the handling and safety. To avoid hazardous situations read the manual before installing the product and using it. Store the manual at a handy place. If selling, renting or in case of a divestiture... -
Page 5: General Information
▪ IP67 DIOSWITCH General Information General Information Symbol Description The manual contains several safety messages. Each safety message contains a defined signal word and a color. The color and the word are referring to an alert level. There are 4 levels. The safety messages point out hazardous situations and give information to avoid those. -
Page 6: Safety
▪ IP67 DIOSWITCH Safety Safety Content of the Manual Read and follow the manual before using the product the first time. This applies to every person which is getting in touch with the product. Trained employees and experts especially qualified persons which had worked with similar products before have to read and understand the manual. -
Page 7: Responsibility Of The Operator
▪ IP67 DIOSWITCH Safety Responsibility of the Operator The operator is obligate by the law of occupational safety, if the product is used in a commercial field. ▪ The operator is responsible to train the employees and to inform himself about the industrial safety regulation. - Page 8 ▪ IP67 DIOSWITCH Safety ▪ If electrical welding work is performed on the frame where electronic components are installed, all connections to and from these components must be disconnected in advance. It is only in this way that the modules can be protected from destruction due to compensating currents.
-
Page 9: Transport And Storing
▪ IP67 DIOSWITCH Transport and Storing Transport and Storing ▪ Protect the product against humidity. Store the product in a dry room between -40 and 85°C. ▪ Make sure that the module is safely packaged for transporting, to absorbe possible crushes. -
Page 10: Scope Of Delivery
▪ IP67 DIOSWITCH Scope of Delivery Scope of Delivery ▪ IP67 DIOSWITCH ▪ Instruction Leaflet... -
Page 11: Product Overview
▪ IP67 DIOSWITCH Product Overview Product Overview Fig. 1: IP67 DIOSWITCH IP67 DIOSWITCH, Part-No. 745569 Characteristics: ▪ Power supply: DC 24 V (DC 16.8 ... 30 V) via M12 A-coded connector ▪ Interfaces: 8 x 10/100 Base-T via 8 x M12 D-coded socket ▪... -
Page 12: The Technology
▪ IP67 DIOSWITCH Product Overview The Technology An economic solution is now available with the DIOSWITCH which is based on Layer 2 of the OSI model to realise Ethernet networks in rail vehicles. The DIOSWITCH is simply mounted on a standard DIN rail (standard mounting rail) for commissioning - without further configuration effort. -
Page 13: Possible Applications
▪ IP67 DIOSWITCH Product Overview Possible Applications A closed ring structure with the DIOSWITCH is not permitted. The DIOSWITCH is suitable for the installation of local networks in rail vehicles and is based on the Ethernet 10/100 Base-T technology. Various network structures can be realised. -
Page 14: Diagnostics And Led Displays
IP67 DIOSWITCH Product Overview Diagnostics and LED Displays The IP67 DIOSWITCH has a total of 17 LEDs. These LEDs are used for diagnostics and/or status display. Fig. 3: Display elements of the IP67 DIOSWITCH The individual LEDs mean the following:... -
Page 15: Technical Data
▪ IP67 DIOSWITCH Technical Data Technical Data The IP67 DIOSWITCH is exclusively certified for use in rail vehicles according to EN 50155. Hardware 8 ports 10/100 Base-TX with M12 sockets D-coded (shielded) according to IEC 61076-2-101-A1 Network expansion TransitionTP port – TP... - Page 16 ▪ IP67 DIOSWITCH Technical Data Electrical isolation Ethernet and power 1000 V AC supply separation voltage Diagnostics power supply, link status, speed Miscellaneous Module size 118.0 x 141.5 x 45.4 mm Weight 780g Case Aluminium Mounting DIN rail mounting in any installation position Ambient temperature Operation: -40 ...
-
Page 17: Block Diagram
▪ IP67 DIOSWITCH Technical Data Block Diagram Power supply 10/100 LED- Configuration Ethernet Controller LEDs Switch Addressen Table (8x) RX / TX Intermediate storage Transmitter (8x) Port M12 (8x) Fig. 4: Block diagram of the IP67 DIOSWITCH... -
Page 18: Power Supply Of The Ip67 Dioswitch
A-coding. The connections are protected against reverse polarity. The shielding of the IP67 DIOSWITCH can be made either using Pin 5 of the power supply connector or via the earth screw on the left side of the case. -
Page 19: Ports Of The Ip67 Dioswitch
IP67 DIOSWITCH Technical Data Ports of the IP67 DIOSWITCH The IP67 DIOSWITCH has 8 M12 communication ports as standard. The ports are designed as shielded 4-pin M12 sockets with D-coding according to IEC 61076-2-101-A1. Fig. 7: M12 ports of the IP67 DIOSWITCH Pin-No. -
Page 20: Functional Description
▪ IP67 DIOSWITCH Functional Description Functional Description General Functions 8.1.1 Behaviour when applying the voltage All LEDs light briefly after applying the voltage. Afterwards, the connected devices with the corresponding characteristics are connected to the DIOSWITCH. 8.1.2 Link Detection If a participant is connected to a port, the "Link" LED of the respective port lights. -
Page 21: Auto Crossing
▪ IP67 DIOSWITCH Functional Description 8.1.5 Auto Crossing Straight-through and crossover cables can be connected. The DIOSWITCH automatically switches over to the corresponding cable type. The following diagrams show this function.. In a critical enironment the use of a cross over cable for connecting/ cascading products with integrated auto-crossing function is recommended. -
Page 22: Specific Functions
▪ IP67 DIOSWITCH Functional Description Specific Functions 8.2.1 Link control The DIOSWITCH monitors the connected TP cable segments for short-circuits or interruption with idle signals according to the IEEE 802.2 Logical Link Control standard. The DIOSWITCH does not transmit any data to a TP segment from which it has not received an idle signal. -
Page 23: Maintenance
▪ IP67 DIOSWITCH Maintenance Maintenance The DIOSWITCH itself is maintenance-free. Therefore no inspection and maintenance intervals are needed for running operation. -
Page 24: Final Shutdown And Disposal
▪ IP67 DIOSWITCH Final Shutdown and Disposal Final Shutdown and Disposal Mind the valid environmental standard of your country for the final shutdown and disposal. For the final shutdown the device has to be disassembled. Electric Parts must be disposed after the national electronic scrap regulation. You take the responsibility for the shipped article. -
Page 25: Service
▪ IP67 DIOSWITCH Service Service If you have any further questions regarding the product or our repairing service please contact us: Lütze Transportation GmbH Bruckwiesenstraße17-19 71384 Weinstadt Tel.: +49 (0) 7151 6053-545 Fax: +49 (0) 7171 6053-6545 Sales.Transportation@luetze.de... -
Page 26: Revision Of The Document
▪ IP67 DIOSWITCH Revision of the Document Revision of the Document Version Revision Date 1.08 ▪ New Layout 02/16/2015 ▪ „Auto Crossing“ notice added 1.09 ▪ Change of power supply pin description 02/07/2017...
