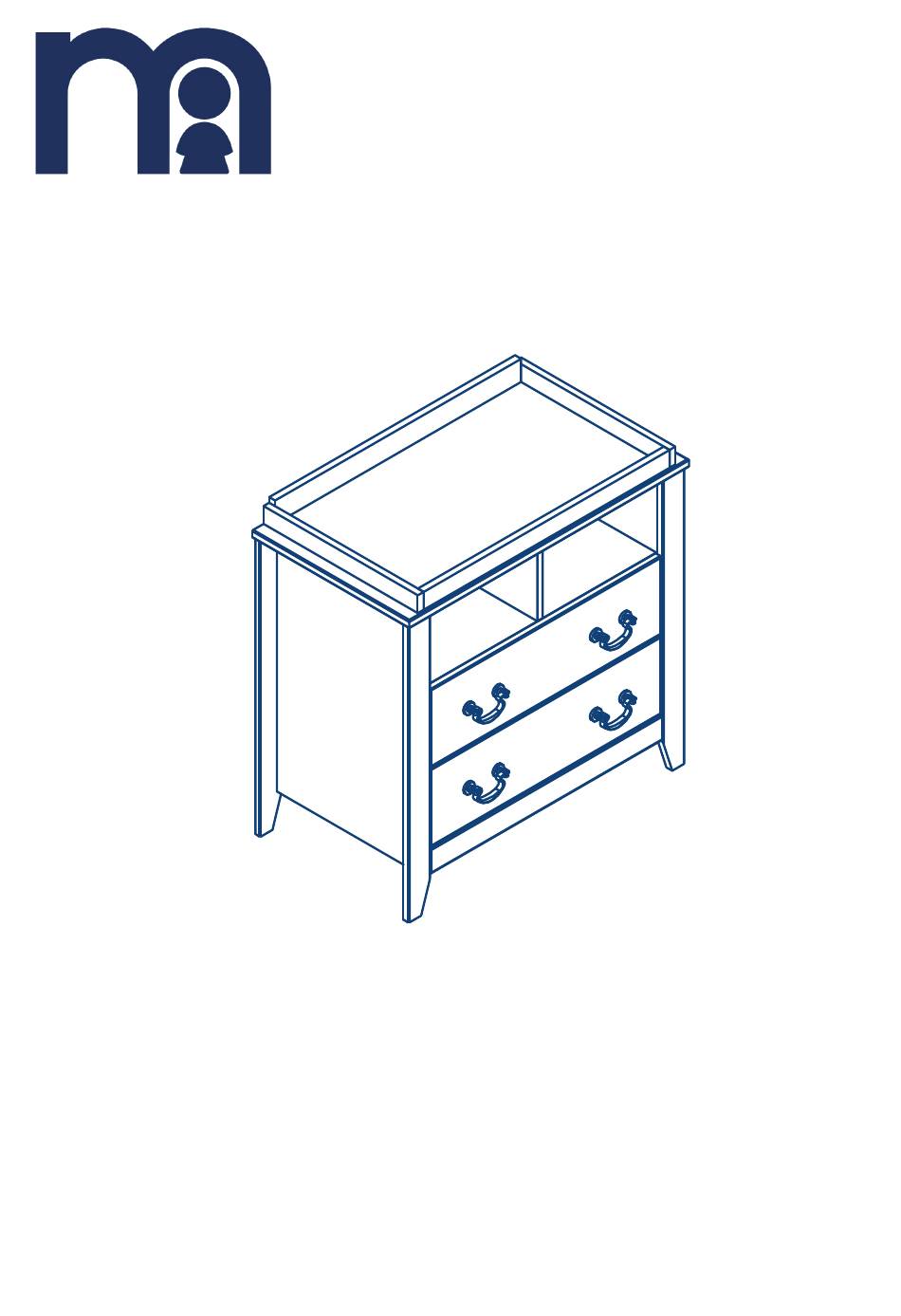

- Page 1 little hampton changing unit user guide important! retain for future reference – read carefully...
- Page 2 This furniture is provided with an anti-topple device for securing to a wall. Failure to use this could result in the furniture toppling onto a child. A Mothercare changing mat is recommended for use with this changing unit with maximum dimensions of 82cm x 48cm. Place the mat evenly between the top rails.
- Page 3 introdduccion parts checklist 2 side rails 1 top 1 back rail 1 rear support rail 1 centre panel 1 front rail 1 shelf 1 large back panel 2 sides (left and right) 1 base 4 drawer sides 1 base rail 2 drawer fronts 1 small back panel...
- Page 4 introdduccion parts checklist 2 drawer backs 2 drawer supports 1 1 1 1 1 1 2 drawer bases tools required: 1 cross head screw driver 1 allen key (provided) assembly introduction introduccion...
- Page 5 introduction introduccion assembly attaching the center panel to the shelf Insert 2 dowels in to the centre panel. Align the dowles in the center panel with their corresponding pre-drilled holes on the shelf and push firmly in to position. Insert 2, 7 x 45mm screws in to the shelf and tighten with the cross head screws driver.
- Page 6 introduction introduccion assembly attaching the shelf to the side Insert 4 dowels into the shelf. Insert 2 cam screws in to the side. Insert 2 cams in to the shelf. Attach the shelf to the side by locating the dowels and cam screws in to their corresponding pre-drilled holes and push firmly into position.
- Page 7 introduction introduccion assembly attaching the second side Insert 4 cam screws in to the side. Insert 4 cams in to the base and shelf. Attach the base, shelf and back support rail to the side by locating the dowels and cam screws in to their corresponding pre-drilled holes and push firmly into position.
- Page 8 introduction introduccion assembly attaching the large back panel Attach the large back panel to the back of the changing unit using 16, 3 x 16mm cross head screws and the 5 back panel plates attaching the top Insert 16 dowels into the sides, center panel and back support rail.
- Page 9 introduction introduccion assembly assembling the drawer back, sides and front Insert 5 cam screws in to each of the drawer front. Insert 4 dowels in to each of the drawers backs. Insert 2 dowels in to each of the drawer sides. Attach the drawer back to the drawer sides by inserting the dowels in to their pre-drilled holes and pushing firmly...
- Page 10 introduction introduccion assembly attaching the changing unit top rails Insert 8 dowels in to the front and back rail. Attach the front and back rail to the side rails by pushing firmly into place. Place the top rails on to the changing unit top and secure on the underside with 2 x m6 x 36mm screws using the Allen key provided.
-
Page 11: Customer Care
Never move the changing unit with the child on it. customer care If you have a problem with this product or require replacement parts, please contact your nearest Mothercare store or telephone the Mothercare customer care line on 08453 30 40 30.
