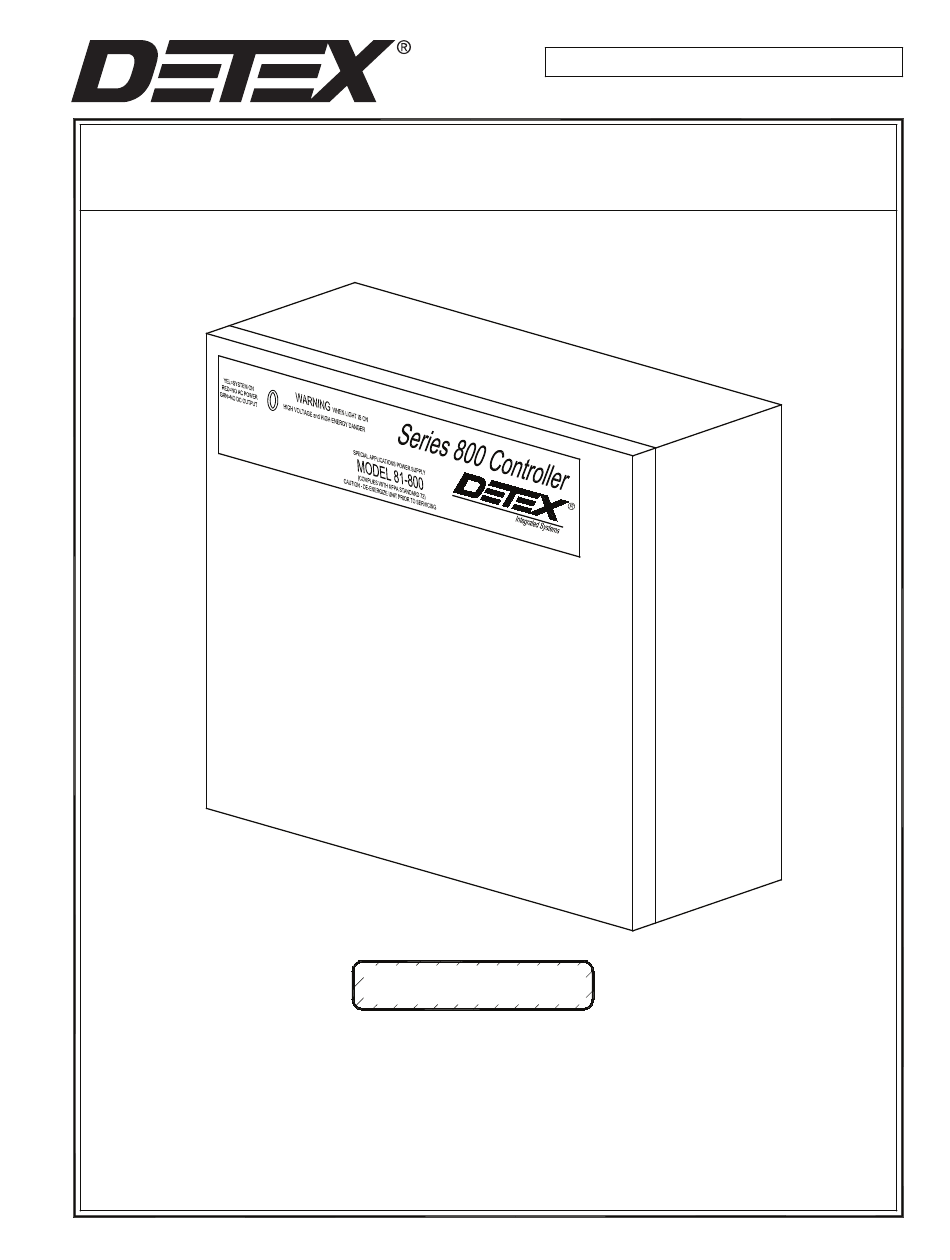

- Page 1 101339 November 16, 2011 Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 (830)629-2900 / 1-800-729-3839 / Fax (830)620-6711 E-MAIL: detex@detex.com INTERNET: www.detex.com INSTRUCTIONS FOR 81-800 Owner's Copy 101339 Page 1...
- Page 2 Typical Single Door It has a selectable output voltage of either 12 or 24 volts DC. Installation For Detex systems always select 24 volts DC. 81-800 Refer to the drawing of the power supply/controller for connections and adjustments. All connections and adjustment must be made with the power supply de-energized AND main power switch (item 3) in the OFF position.
- Page 3 3: Main ON-OFF switch. This switch can be used to de-energize the power supply for service and adjustments. High voltage is still present inside the enclosure as long as the main power feed is energized, so caution should still be used when service is performed using this switch. 4: 1 Amp circuit breaker.
- Page 4 Control Inputs 9: Control Inputs. These require a normally open contact. The door latch will activate and hold once the circuit between the terminals of Inputs 1 (J6) , 2 (J5) or 3 (J4) is closed. Input 1 Input 2 Input 3 N.O.
-
Page 5: Recommended Wire Sizes
Optional 12 volt supply module plugs onto P1 and P2. Plug is instructions for more information. 300 mA max keyed for alignment, do not force. Order DETEX catalog number: M12 RECOMMENDED WIRE SIZES: WIRE GAUGE MAXIMUM LENGTH OF TWO CONDUCTOR CABLE...
