Summary of Contents for Eddyfi Technologies INUKTUN SPECTRUM 90

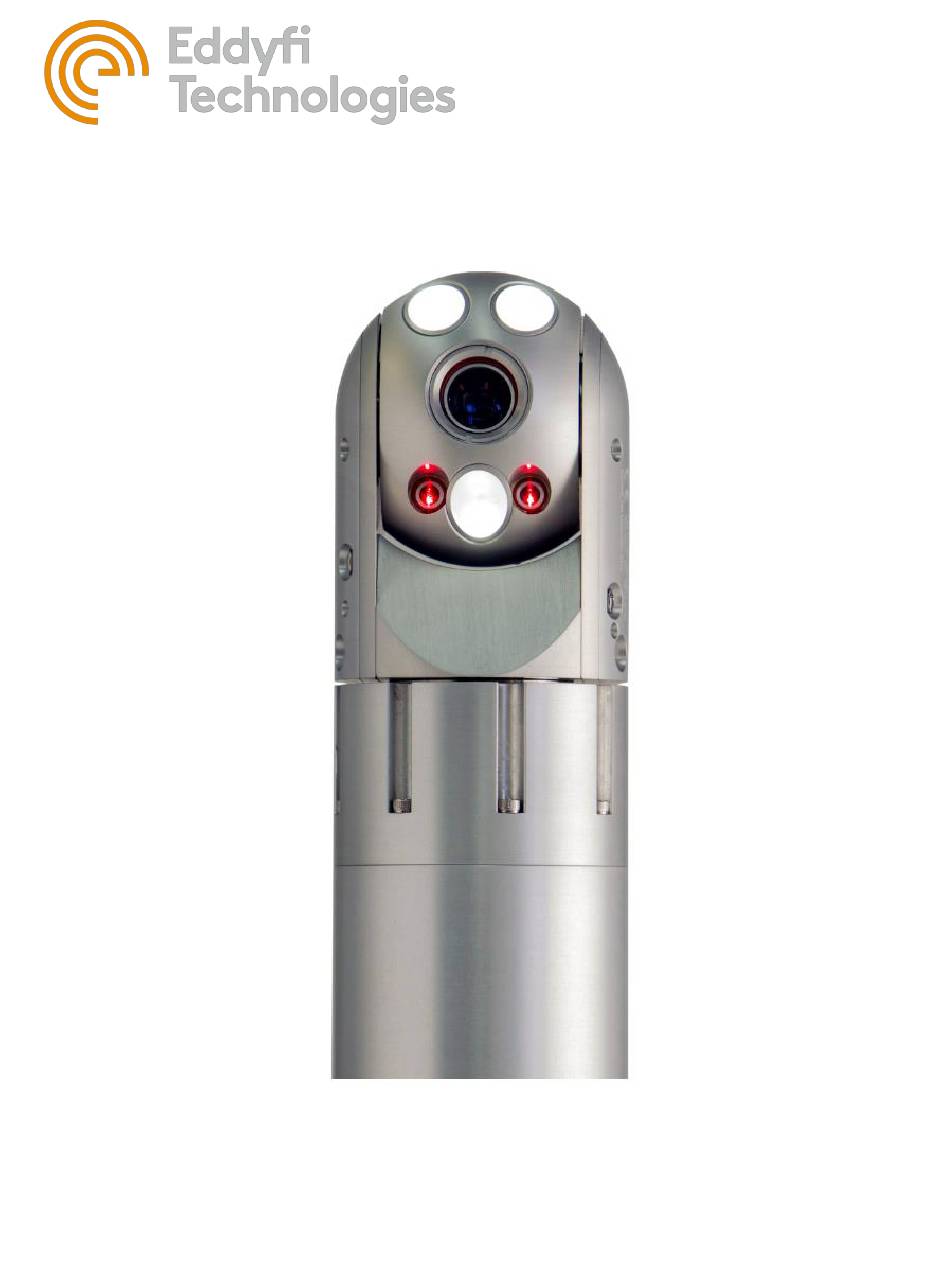

- Page 1 2569 Kenworth Road, Suite C Nanaimo, BC, V9T 3M4 CANADA +1.250.729.8080 info@eddyfitechnologies.com www.eddyfitechnologies.com INUKTUN SPECTRUM 90™...
-
Page 2: Table Of Contents
Spectrum 90™ Camera Table of Contents About This Manual ............................4 Description ..............................4 Specifications ..............................5 Certification ............................... 6 Connector Pin-Out ............................ 6 Laser Lines ............................... 6 Safety ................................7 System Setup ..............................8 Unpacking Components ........................... 8 Mounting the Camera ..........................9 Galvanic Corrosion Control ........................ - Page 3 Spectrum 90™ Camera Rinsing and Cleaning ..........................16 Inclinometer Calibration .......................... 16 Factory Maintenance ..........................17 Parts and Repairs ............................17 Ordering Parts/Customer Service ......................17 Warranty Repairs ............................ 17 Factory Returns to Canada ........................18 Product/System Drawing Package Availability ..................18 Limited Warranty Policy ..........................
-
Page 4: About This Manual
This manual copyright © 2019 by Inuktun Services Ltd. All rights reserved. Description The Inuktun Spectrum 90™ (SP90) pan-tilt-zoom is an industrial video camera system for use in pipe inspection systems, harsh industrial environments and underwater. Standard features include 360 continuous pan, 260 tilt, zoom and a 60m or 300m depth rating. -
Page 5: Specifications
Spectrum 90™ Camera Specifications 36 – 70 VDC Operating Voltage Operating Power 65 W Peak Operating Current 1.8 A Peak Standard 60 m (200 ft) Depth Rating Deep Water 300 m (1000 ft) 0 – 26 °/s Speed 0 – 9 °/s Tilt 360 °... -
Page 6: Certification
Spectrum 90™ Camera Certification The product is built in accordance with: Machinery Directive 2006/42/EC, and Electromagnetic Compatibility Directive 2004/108/EC and Directive 2014/30/EU Connector Pin-Out The Spectrum 90™ connects to power and communications through a Subconn MCBH8M connector on the back of the camera. Note: Pin-out is shown for the Bulkhead Connector on the camera. Function 70 VDC GND (-) 70 VDC (+) -
Page 7: Safety
WARNING: High Voltage 36-70 VDC. If the equipment is powered from a source other than an Eddyfi Technologies provided controller, the power supplied to the product must have reinforced isolation from the mains with no reference to earth ground. -
Page 8: System Setup
Do not operate the camera with a damaged connector or cable. Inspect connectors and cables regularly for damage. • Call the Eddyfi Technologies service department for assistance or service if needed. CAUTION: The Schrader cap installed on your camera is a proprietary cap rated to 300 m (1000 ft) depth. -
Page 9: Mounting The Camera
Spectrum 90™ Camera Mounting the Camera The Spectrum 90™ camera can be mounted at the back plate using the three threaded M6x1 x 13mm deep blind holes. These holes are also utilized for mounting the optional drop cone. Use M6x1 SS SHCS. The length of the screws will depend on the thickness of the mounting bracket. -
Page 10: Galvanic Corrosion Control
Cathodic protection is required whenever the camera is being deployed in a salt water environment, either submerged or in salt spray, regardless of camera material. Eddyfi Technologies Inuktun cameras use aluminum marine anodes for both stainless and aluminum cameras. Aluminum anodes are common in the marine industry and are replacing zinc anodes in many areas. -
Page 11: Connector Handling
Spectrum 90™ Camera FIGURE 4: ANODE ATTACHMENT Connector Handling Connectors are an essential part of system reliability. They should be properly maintained and cared for to ensure long life and reliability. It is recommended to follow these steps to help prevent damage and increase the life of connectors. -
Page 12: Attaching The Drop Cone Assembly (Optional)
Spectrum 90™ Camera • Periodically apply Molykote 111 silicone grease or equivalent before mating connectors • For dry mate connections, a layer of grease corresponding to 1/10 the socket depth should be applied to the female connector • After greasing, fully mate the male and female connector and remove excess grease from the connector joint •... -
Page 13: Flow Thru Cooling (Continuous Purge)
Technologies for more details. Schrader Valve All versions of the Spectrum 90™ camera use a proprietary Schrader valve rated up to 300m (1000 ft) depth. The factory Schrader cap and O-ring must always be installed. Call Eddyfi Technologies for replacement parts. CAUTION: The Schrader cap installed on your camera is a proprietary cap rated to 300 m (1000 ft) depth. -
Page 14: Operation
Spectrum 90™ Camera 4. Let the nitrogen flow for minimum one minute, and then re-install the seal screw again while the nitrogen is still flowing to create a small internal pressure. 5. When the nitrogen source is removed, the Schrader valve will keep the pressure inside. Cap the valve again when done. -
Page 15: Post-Operations Check
Spectrum 90™ Camera Post-Operations Check A Post-Ops inspection should be carried out after every camera mission. 1. The system should be visually inspected for mechanical damage. 2. If the system has been used in salt water, thoroughly rinse the camera and pole with fresh water right away. -
Page 16: Maintenance
Object may be too close to the camera. Maintenance Tether Re-termination Tether termination is a specialized service beyond the scope of this manual. Contact Eddyfi Technologies if the tether is damaged or requires re-termination. Rinsing and Cleaning After every mission check to see if the camera needs cleaning. -
Page 17: Factory Maintenance
When seals are removed or replaced the sealing surfaces and seals must be clean and sufficiently lubricated before installation. To re-certify a camera’s depth rating we recommend the camera be serviced at Eddyfi Technologies in- house service centre. Parts and Repairs... -
Page 18: Factory Returns To Canada
Warranty claims must return to the factory for evaluation. To return an item for evaluation or repair, first contact Eddyfi Technologies at our toll-free number or e- mail address. Eddyfi Technologies will supply a Return Merchandise Authorization (RMA) number with detailed shipping and customs instructions. -
Page 19: Limited Warranty Policy
The foregoing constitutes the sole and exclusive remedy of the purchaser and the exclusive liability of Eddyfi Technologies and is in lieu of any and all other warranties, express, implied or statutory as to merchantability, fitness for purpose sold, description, quality productiveness, or any other matter. Under no circumstances shall Eddyfi Technologies be liable for special, incidental or consequential damages, or for delay in performance of this warranty.
