Summary of Contents for EXALite EXL-XL Profile Zoom CW+WW 200W

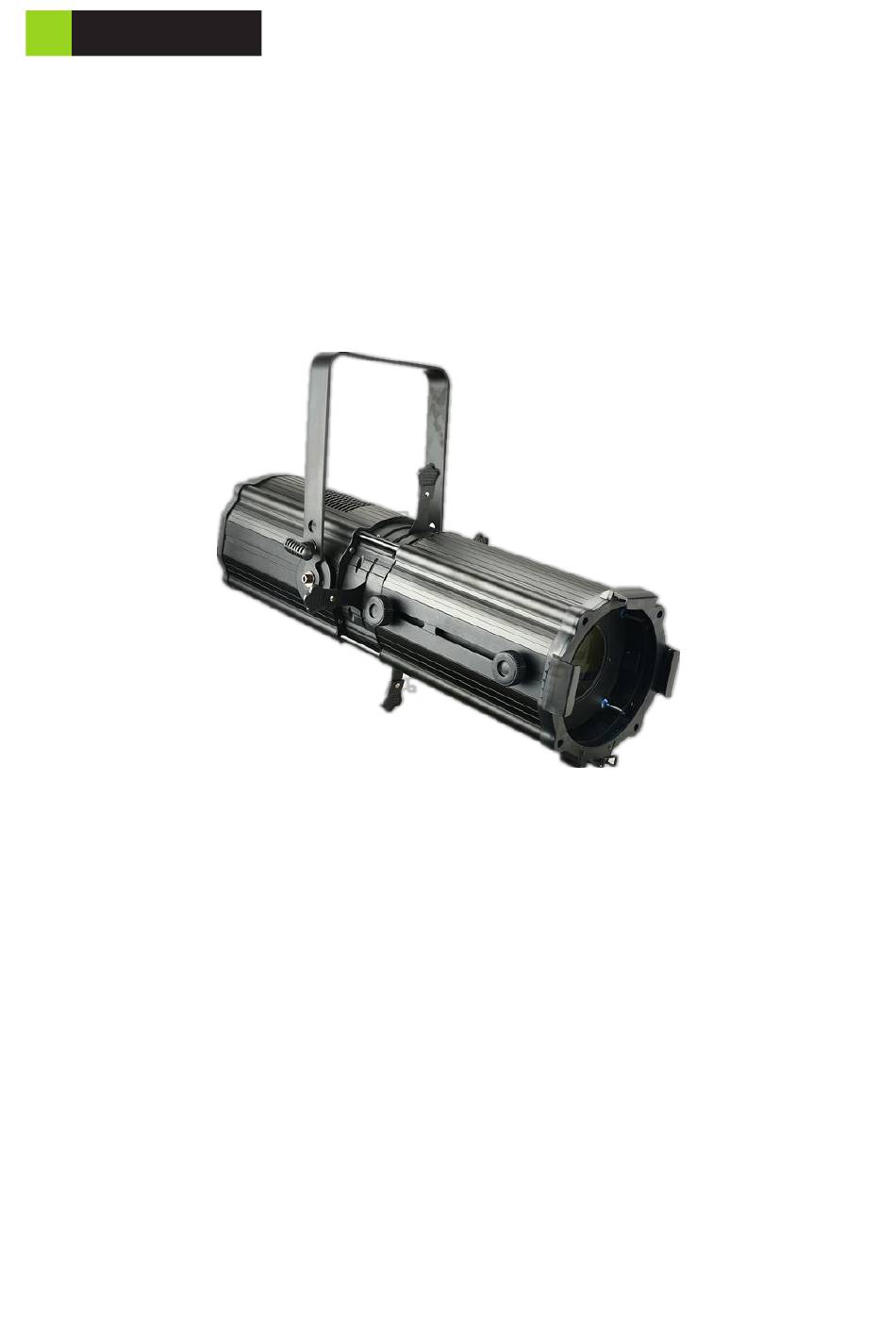

- Page 1 EXALITE EXL-XL Profile Zoom CW+WW 200W USER MANUAL CE RoHS...
- Page 2 OVERVIEW Thank you for using our product, this unit is designed for indoor using, it’s widely used for stage, building, disco, etc. as high power led effects lighting, this unit can be operated as a single unit or multipe units for large applications. Direct input of DMX512 signal to unit to allow it controlled by any DMX controller, powerful internal programs and friendly and convenient operation interface allows customers to program freely to any different lighting project requirements for installation or showing.
-
Page 3: Product Introduction
1. Product Introduction 1.1. Product Feature 4 kinds of running mode External control mode (Slave mode) DMX 512 controller control(2 kinds channel modes) Master/salve model control (auto match the signal from controller and the Master light, no need to set by menu) Auto run mode (Master mode) ... -
Page 4: Key Operation
1.2. Multi-light working in the same time When using controller to control multi lights to work in strobe, the controller just send the channel data . The strobe effect will be depend on each light itself . And please take attention for the follow situation: 1. - Page 5 2.2. Menu Menu State Operation Remark Main menu Vice menu No menu A: advance UP/DOW adjust ID address disconnect the controller and connect the master External control ENTER Save ID address light, then it will mode follow the master (standard channel light.
- Page 6 t: top UP/DOW Change the temperature protection data set the temperature ENTER save and exchange protect No vice menu diSP: display ENTER reverse display set to show reverse display No vice menu reSt: reset ENTER enter the interface The password is of key “UP DONW UP DOWN”...
-
Page 7: Channel Data
2.3. Channel data 2.3.1. Standard channel model channel data function mark 0~255 dimmer 0~255 color1 0~255 color 2 0~10 no strobe this channel control the speed when running the build-in program 11~255 the speed of strobe (255 is the fastest) 0~20 speed of dimmer 4 (the slowest and softest) -
Page 8: Safety Warning
SAFETY WARNING 1. Warning ﹡ Every person involved with the installation , operation and maintenance of this device has to be qualified . ﹡ User must follow the instructions of this manual ﹡ Unqualified person can not open the housing cover and operate the device , or the dealer will not accept liability for any resulting defects or problems. - Page 9 APPENDIX Problem and solution...
- Page 10 Caution : ﹡ Unqualified person involved with installation , operation and maintenance of this device is prohibited . ﹡ If any above mentioned problem happened , or unknown problem happened , please contact manufactory or distributor or distributor for assistance DISCLAIMER 1.
