Lsleds LS-HBN-150 User Manual

150w high bay led light

Hide thumbs

Lsleds Technology Co.,Ltd

User Manual

150w High Bay Led Light

Table of Contents

Need help?

Do you have a question about the LS-HBN-150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lsleds LS-HBN-150

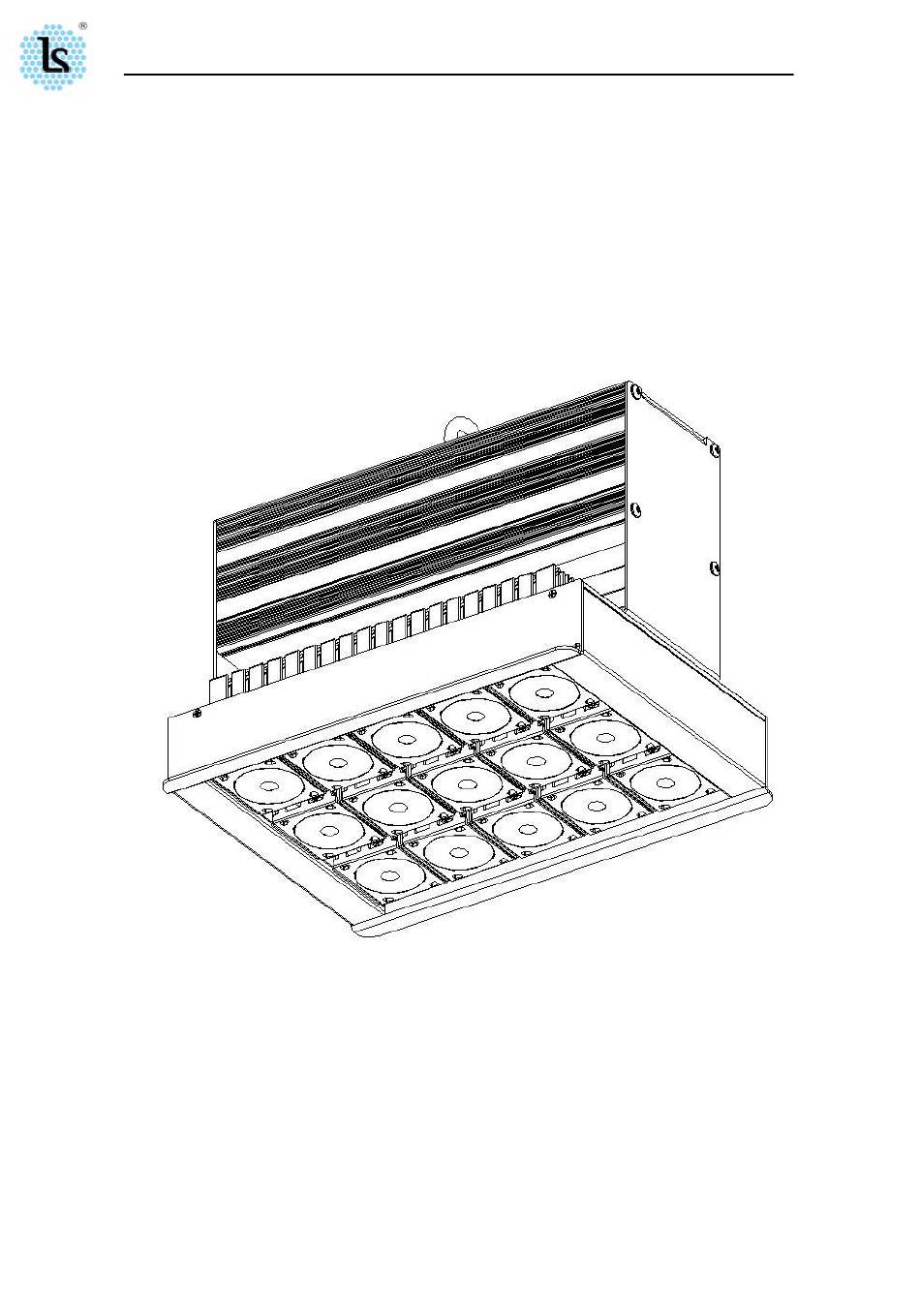

Page 1 Lsleds Technology Co.,Ltd User Manual 150w High Bay Led Light...
Page 2 Lsleds Technology Co.,Ltd To customers ▶Many thanks for buying our product. ▶Please read this user manual carefully before using. ▶Please kindly keep this user manual well. Caution: ▶In case of any damage or accident happened,customers who use this lamp please don’t take apart the lamp or change any part of it.
Page 3 Lsleds Technology Co.,Ltd IES Flood Report Photometric Filename:LS-HBN150-25de.iesz Illuminance-Distance Diagram LS-HBN-150 25de Color Temp: 5000-6000k Lum.Name: LED High Bay light 150W 25de Color Index(CRI) Lamp Name: Bridgelux LED Luminous Efficiency 150lm / Watt Light Source Illuminance-Dtance Curve Beam Angle:25...
Page 4 Lsleds Technology Co.,Ltd IES Flood Report Photometric Filename:LS-HBN150-40de.iesz Illuminance-Distance Diagram LS-HBN-150 40de Color Temp: 5000-6000k Lum.Name: LED High Bay light 150W 40de Color Index(CRI) Lamp Name: Bridgelux LED Luminous Efficiency 150lm / Watt Light Source Illuminance-Distance Curve Beam Angle:40...
Page 5 Lsleds Technology Co.,Ltd IES Flood Report Photometric Filename:LS-HBN150-60de.iesz Illuminance-Distance Diagram LS-HBN-150 60de Color Temp: 5000-6000k Lum.Name: LED High Bay light 150W 60de Color Index(CRI) Lamp Name: Bridgelux LED Luminous Efficiency 150lm / Watt Light Source Illuminance-Dtance Curve Beam Angle:60...
Page 6 Lsleds Technology Co.,Ltd Dimension: unit（mm） Package size: unit（mm）...
Page 7 Lsleds Technology Co.,Ltd Installation procedure: 1. Intall the hook in the right place where led high bay light will be installed（the hook should match with M8 rings on top of high bay ligth,at the same time,load capacity of the hook should be more than 60kg）...
Page 8 Lsleds Technology Co.,Ltd Connect the power cables as below ACL: Connect the Brown input ACN: Connect the Blue input Grount Line: Connect the Green/Yellow input 4. Power Switch on,make sure light on. 5. All done. Remark： 1. Make sure power off when installing or changing spare parts;...
