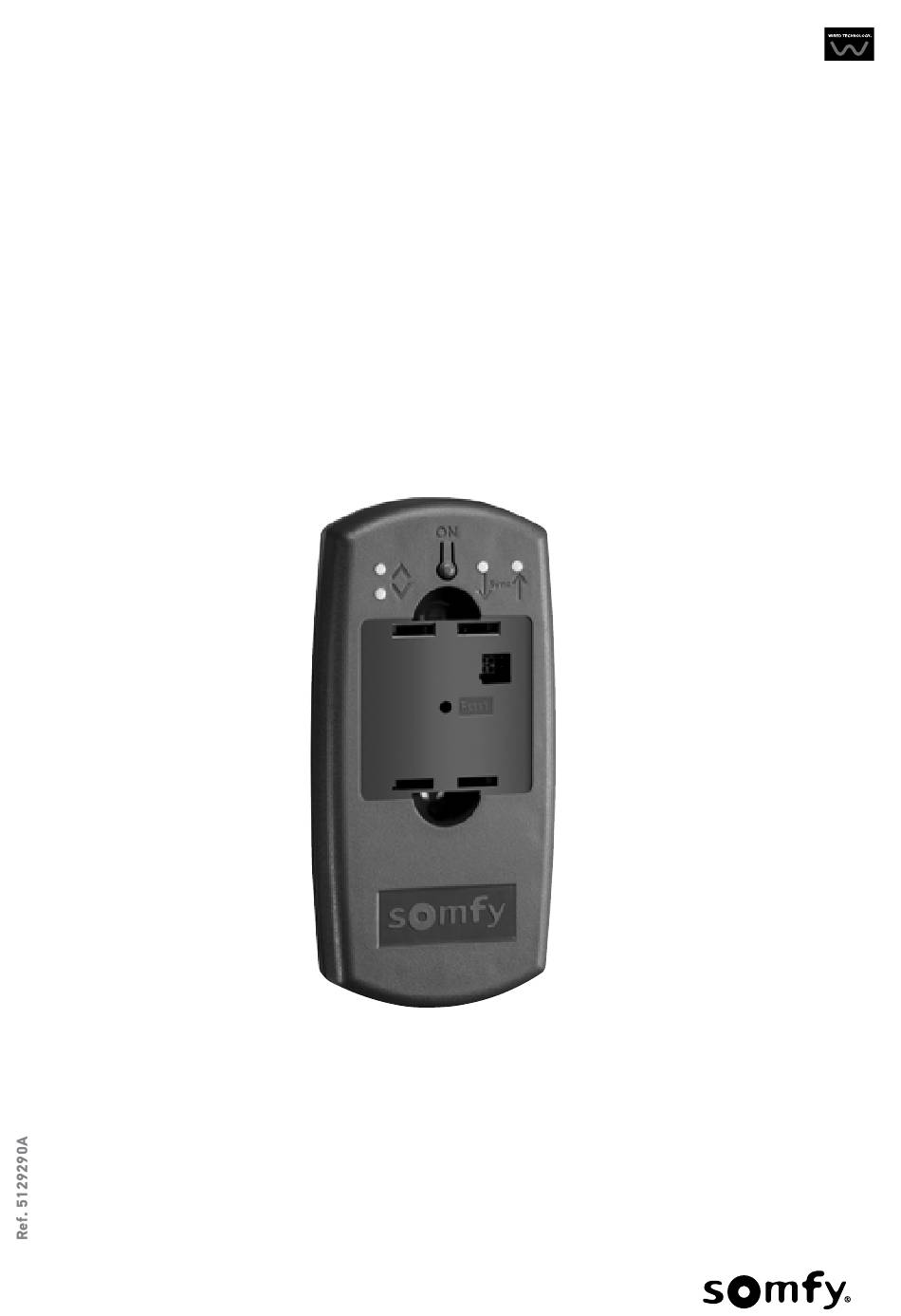

- Page 1 QuickCopy & QuickCopy PC Software Interactive operating instructions...
- Page 2 WELCOME PAGE The QuickCopy device enables the quick copying of settings of a Chronis / Soliris Smoove or Smoove UNO io device to other Chronis / Soliris Smoove & Smoove UNO io controllers. QuickCopy is operated over the plugged in Chronis / Soliris Smoove & Smoove UNO io device (see chapter "Soft Key functions of the Smoove device").
-
Page 3: Table Of Contents
5. QUICKCOPY PC SOFTWARE 5.1. Starting-up the QuickCopy PC Software 5.2. Copy function of the software 5.3. Parameter settings 6. TECHNICAL DATA 3/18 Copyright © 2016 Somfy SAS. All rights reserved. Non contractual images Interactive operating instructions QuickCopy & QuickCopy PC Software... -
Page 4: Description
RESET BUTTON There is a QuickCopy PC Software written for the QuickCopy. It is a user-friendly software which enables copying of device settings to additional devices (as with the QuickCopy device), as well as parameter settings of the Chronis / Soliris Smoove & Smoove UNO io device. -
Page 5: Starting Up The Quickcopy Device
2. Place the batteries in the QuickCopy device and screw the device closed. 3. Plug the Chronis / Soliris Smoove or Smoove UNO io device to the QuickCopy device. 4. Press the ON button of the QuickCopy device to supply the Chronis / Soliris Smoove or Smoove UNO io device with power. -
Page 6: Soft Key Functions Of The Smoove Device
Confirm selection or setting Go back to the previous menu or to menu Navigate through the menu 6/18 Copyright © 2016 Somfy SAS. All rights reserved. Non contractual images Interactive operating instructions [ Back to Contents ] QuickCopy & QuickCopy PC Software... -
Page 7: Copy Function Of The Quickcopy Device
QuickCopy storage are copied to the plugged-in Smoove device (see chapter "Copy QuickCopy to device"). Copy settings Configure: exit the copy function. QuickCopy is used as a power QuickCopy to Devi supply for the device (see chapter "Configure"). Configure 7/18 Copyright ©... -
Page 8: Copy Smoove Device To Quickcopy
Copy only Time and Date In the factory state, the storage in the QuickCopy device is empty and with no time and date settings. Here, you have the option of copying only from the plugged-in Smoove device to the QuickCopy device. -
Page 9: Copy Quickcopy To Device
When the Smoove device has not been supplied with electrical power for several hours, it loses the time and date. For this reason, it is possible to copy only time and date from the QuickCopy device. 1. Following storage destination number 10, choose the option "Only QuickCopy source time+date". -
Page 10: Configure
QuickCopy device. 4.4. Reset / Delete storage location In case the complete QuickCopy storage were deleted, press the Reset button for at least 10 seconds. To show confirmation, both synch LEDs light up briefly. 10/18 Copyright ©... -
Page 11: Quickcopy Pc Software
5. QUICKCOPY PC SOFTWARE The software serves as a user-friendly support for setting and copying the device parameters. Configurations can be prepared on the PC and then transferred later to to the QuickCopy device, to Chronis / Soliris Smoove or Smoove UNO io. - Page 12 1. Connect the QuickCopy device to the PC via the supplied USB cable. 2. Plug the Chronis / Soliris Smoove or Smoove UNO io device to the QuickCopy device. > The "Controlled by PC application" notification appears on the display of Chronis / Soliris Smoove.
- Page 13 1. Right click on the storage location to name or rename it. 2. Enter the name. We recommend always naming the occupied storage location. > When working with QuickCopy device without software, the name of the storage location will now appear. Deleting the storage location •...
-
Page 14: Copy Function Of The Software
5.2. Copy function of the software The settings of a device can be copied quickly and easily to another device. In the QuickCopy device, there are 10 storage locations available for Chronis / Soliris Smoove. For the Smoove UNO io, there is one location available. -
Page 15: Parameter Settings
PC file and then proceed with changing. 15/18 Copyright © 2016 Somfy SAS. All rights reserved. Non contractual images Interactive operating instructions [ Back to Contents ]... - Page 16 Note: • In the QuickCopy PC Software, the number of zones is defined and the corresponding parame- ters are set. Following this procedure, the Smoove devices are not yet assigned to the corres- ponding zones. There is a further procedure to assign zones. As soon as the Soliris Smoove IB+ or Chronis Smoove IB+ is plugged into the wall adaptor again and the Smoove devices are connected, this procedure can be carried out.
-
Page 17: Technical Data
1250 mAh max. 18 hours in uninterrupted operation Somfy hereby declares that the radio equipment covered by these instructions is in compliance with the requirements of Radio Directive 2014/53/EU and the other essential requirements of the applicable European Directives. - Page 18 Somfy SAS 50 avenue du Nouveau Monde F-74300 CLUSES FRANCE www.somfy.com...
