JACUZZI
IMPORTANT: J-VSP PROGRAMMING CAN ONLY BE PERFORMED IN THE OFF POSITION
Changing Programmed Speeds:
The Jacuzzi VS Pump is factory programmed at the following speeds:
LOW: 1200 RPM
MED: 2300 RPM
HIGH: 3075 (1.5 HP) or 3450 (2.5 HP)
To increase or decrease speeds:
1. Select the desired speed (LOW, MED, or HIGH)
2. Use the Up or Down arrows to change speed in 25 RPM increments.
Programming Priming Mode:
Features of the J-VSP Priming Mode include:
Completely programmable run time and RPM
May be utilized as a specialty timer period for additional circulation and filtration
Priming mode can be programmed from 2 to 120 minutes, and from 600 RPM to 3075
(1.5 HP) or 3450 (2.5 HP)
To Program:
1. Press MENU until PRIM appears on display
2. Press ENTER to edit.
3. Press the UP or DOWN arrow to change RPM. When finished, press ENTER.
4. Press UP or DOWN arrow to change minutes. When finished, press ENTER. This will
return you to the Main Menu.

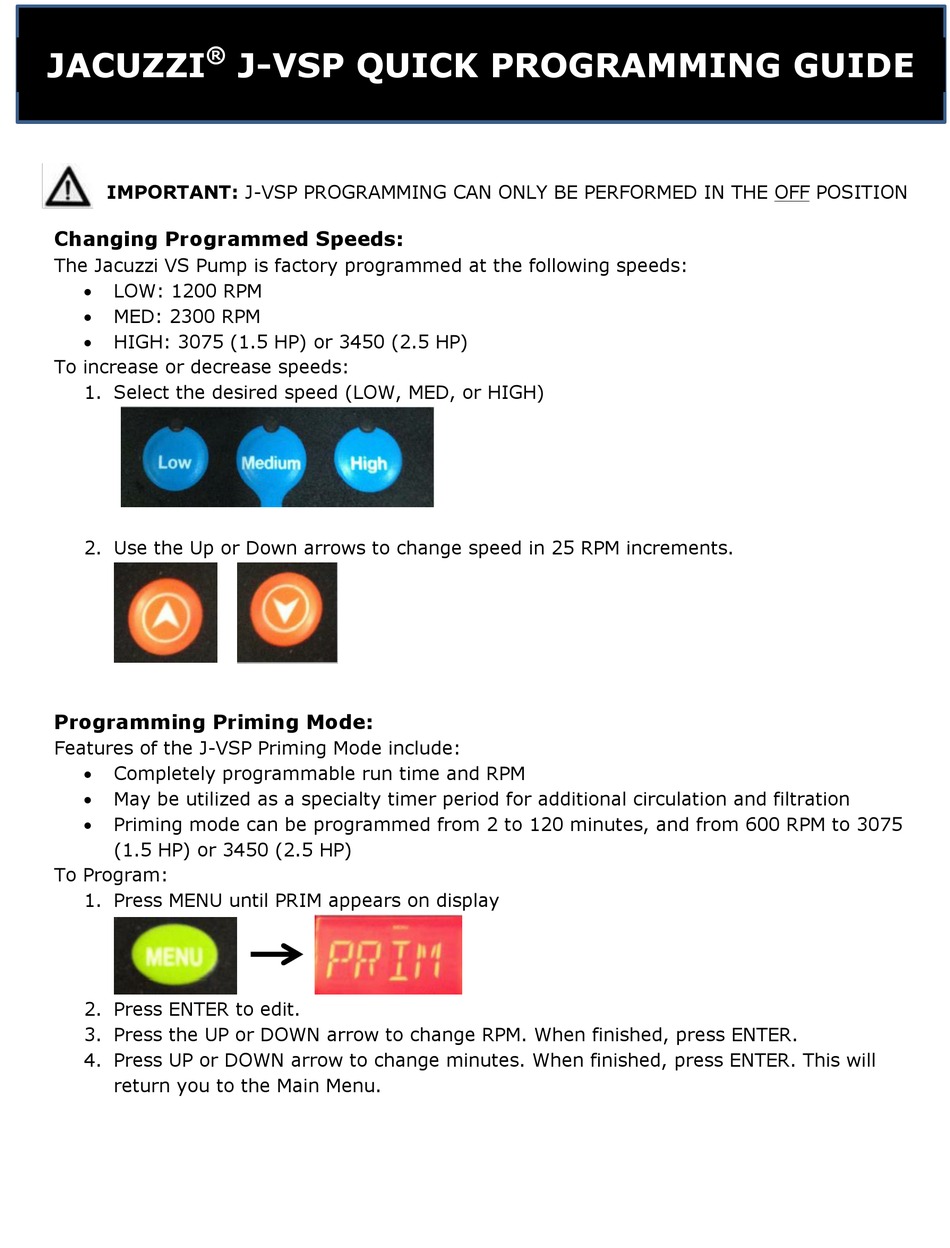

J-VSP QUICK PROGRAMMING GUIDE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jacuzzi J-VSP Series
Summary of Contents for Jacuzzi J-VSP Series
- Page 1 ® JACUZZI J-VSP QUICK PROGRAMMING GUIDE IMPORTANT: J-VSP PROGRAMMING CAN ONLY BE PERFORMED IN THE OFF POSITION Changing Programmed Speeds: The Jacuzzi VS Pump is factory programmed at the following speeds: LOW: 1200 RPM MED: 2300 RPM ...
- Page 2 This comes preset in the OFF position. DIM: This menu controls the brightness of LCD display and can be adjusted using the UP and DOWN arrows to desired brightness. FOR ADDITIONAL QUESTIONS, PLEASE CONTACT THE JACUZZI HOTLINE AT 1-844-615-8994 OR JACUZZI SUPPORT AT questions@jacuzzipool.com.
