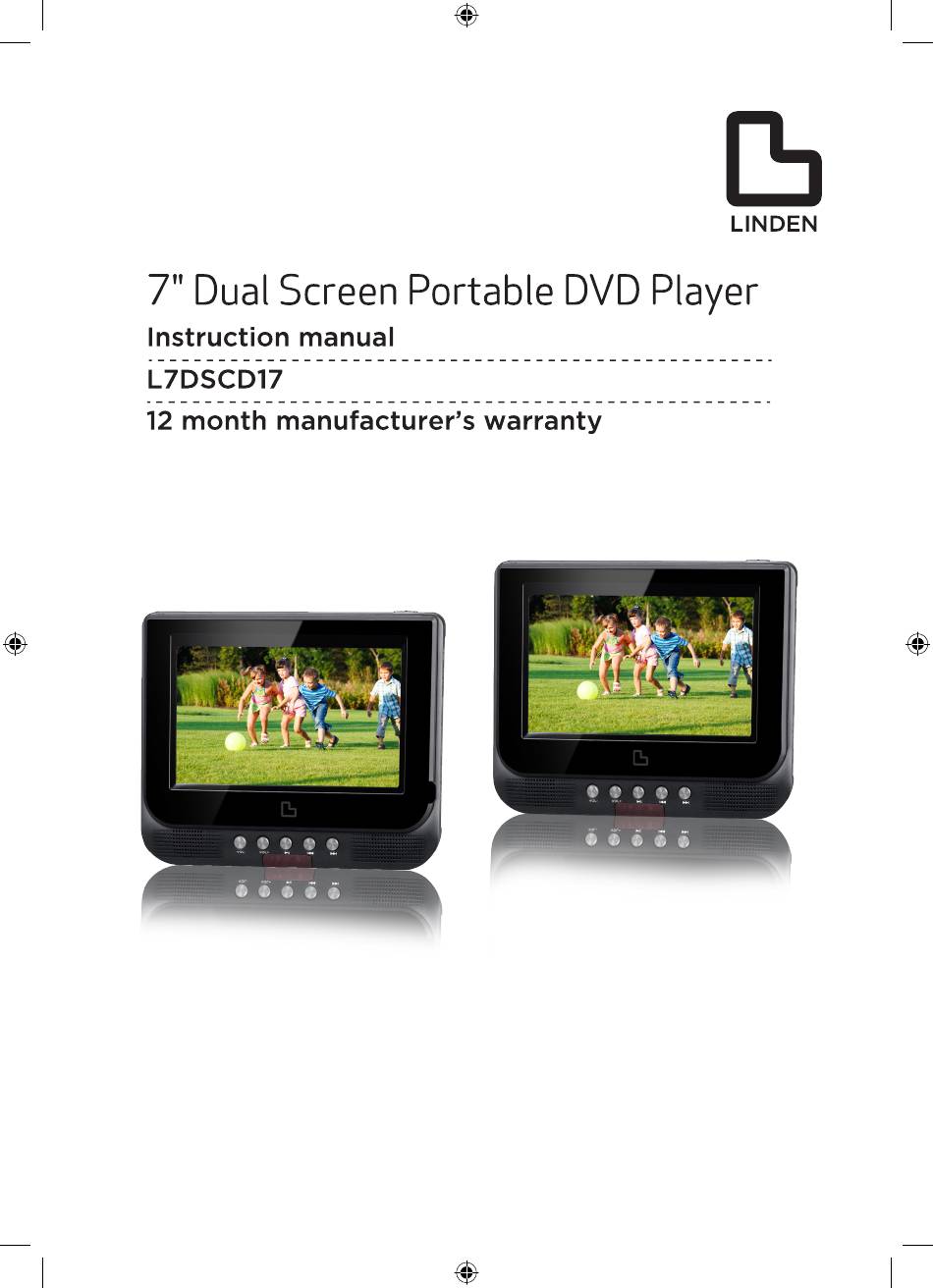

Linden L7DSCD17 Instruction Manual

7" dual screen portable dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L7DSCD17 and is the answer not in the manual?

Questions and answers

Summary of Contents for Linden L7DSCD17

  • Page 2: Table Of Contents

    Contents Guide to the Device ........................2 Caring for the Environment ......................4 Safety Information and Warnings ....................5 Items in the Box .......................... 8 Installation Instructions ........................ 9 Basic Set Up ..........................12 Operation Instructions ......................15 Troubleshooting ........................19 Care and Maintenance ......................

  • Page 3: Guide To The Device

    Guide to the device Control Reference Guide DVD Player 1. Play/Pause Press to switch between play and pause. 2. STOP Press to stop the playback. 3. DISPLAY ON/OFF: Press turn on or turn off the display. 4. VOL-: Press to decrease volume level. 5.
  • Page 4 DVD Player 15. ON/OFF: Power ON/OFF Switch Slide to ON position to power on Slide to OFF position to power off 16. EARPHONE: Earphone jack 17. AV OUT: Audio/video output jack 18. SD/MMC CARD: Card slot 19. USB: USB port 20.

  • Page 5: Caring For The Environment

    Caring for the environment Responsible disposal of the packaging The packaging of your appliance has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can be a suffocation hazard for babies and young children, please ensure all packaging materials are out of reach and are safely disposed of.

  • Page 6: Safety Information And Warnings

    Safety information and warnings CAUTION: RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK) OF THE UNIT, REFER SERVICING ONLY TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated (dangerous voltage) within the product’s enclosure that may be of suffcient magnitude to constitute a risk of electric shock.
  • Page 7 Safety Information and Warnings 1. Read Instructions: All the safety and operating instructions should be read before the product is operated. 2. Retain Instructions: The safety and operating instructions should be retained for future reference. 3. Heed Warnings: All warnings on the product and in the operating instructions should be adhered to.
  • Page 8 15. Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualifed service Personnel. 16. Heat: The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

  • Page 9: Items In The Box

    Items in the box Monitor 2 x In-car headrest mounts DVD player 1 x DC to DC cable L7PDVD17 Remote control 1 x 3.5mm to 3.5mm cable AC Adaptor 2 pairs of Earphones Items not shown: Instruction manual (this document) Statutory warning Car Adaptor Warranty card...

  • Page 10: Installation Instructions

    Installation instructions A. Using the Car Power Adapter The included 12V car power adapter is designed for use with vehicles that have a 12V, negative ground electrical system. Using the DVD Player and the Monitor Together DVD player right side Monitor right side To DC 12V power outlet...
  • Page 11 B. Watching a DVD on the DVD Player and the Monitor You can watch the same DVD on the DVD player and the monitor. DVD player right side Monitor right side 1. Connect the DVD player and the monitor using the included DC cable and AV cable. DC to DC cable 2.
  • Page 12 Mounting in the vehicle Use the supplied mounting straps to install the DVD player and monitor on the back of the vehicle’s headrests. Tightly wrap the mounting strap around the headrest. Mounting the DVD Player Mounting strap SAFETY WARNING! • This unit should never be used by the vehicle’s driver or left unsecured in the vehicle while driving.

  • Page 13: Basic Set Up

    Basic set up Remote Control The remote control transmits a directional infrared beam. Be sure to aim the remote control directly at the infrared remote sensor during operation. The sensor may not be able to receive signals properly if the sensor is covered, if there is a large object between the remote control and the sensor, or if it is exposed to direct sunlight or a strong case,...
  • Page 14 Setup Various features of the player can be adjusted in the SETUP menu. 1. Press to enter the player’s setup menu. 2. Press the direction buttons to select the desired item. 3. Press ENTER to confirm. Language Setup Item Description Default setting Sets the language of the player’s onscreen display.
  • Page 15 Rating Item Description Default setting Sets the maturity rating level of play. The player will not play any discs rated higher than Parental Level: 1to 8(8 this setting. Control Adult is default) This setting is password protected (the initial password is: 0000).

  • Page 16: Operation Instructions

    Operation instructions Turning on the Unit 1. Slide the ON/ OFF switches on the DVD player and the monitor to the ON positions. The start-up picture will appear on the screens. 2. After use, slide the POWER ON/ OFF switches on the DVD player and the monitor to the OFF positions (power off).
  • Page 17 Numeric Keypad • Use the numeric keypad to skip directly to a DVD chapter or CD track. (Some discs may not allow direct access function.) • Use the numeric keypad to input numeric data in menu option fields when possible. Note: Use the 10+ key for inputting numbers greater than 10.
  • Page 18 Function buttons Press the OSD button to show playback information. Setup Press it to enter the player’s setup menu. Enter the Setup menu to adjust the player’s Internal settings, please see the SETUP section for more details. Zoom Press ZOOM to change the magnification level of the picture. During DVD playback, each successive press of ZOOM will change the level of magnification.
  • Page 19 Multi-Ianguage Subtitles During playback of a DVD that has been mastered with subtitles, press SUBTITLE to view the available subtitle tracks. (A DVD may have up to 32 selectable subtitles.) CD Ripping Function You may rip the CD disc content to USB or SD memory device. When it is playing CD disc, insert USB or SD memory device to the unit, and then press Copy button to run to the ripping function menu.

  • Page 20: Troubleshooting

    Troubleshooting If you experience a problem with your appliance, check here for solutions to help you solve the problem. If after these checks you are still experiencing problems with your appliance, contact Customer Service for advice. There is no power to the device. •...

  • Page 21: Care And Maintenance

    Care and maintenance CAUTION: Always switch off the unit before performing any cleaning. • Wipe the outer surface with a soft cloth. • Do not use abrasive cleaners or solvents. • Do not allow water to enter inside the unit. Disc Care and Maintenance •...
  • Page 22 Distributed by: M.E.W. (Australia) Pty Ltd, 15 Vaughan St, Essendon Fields, VIC 3041 ACN 152 719 036 Customer care: Aus-1300 530 800 customercare@lindenproducts.com.au lindenproducts.com.au While every effort has been made in the preparation of this instruction manual, the publishers cannot be held responsible for the accuracy of the information contained herein or any consequences arising from it.
