Autonomous Bassline Generator
Builder's Guide 1.0.2
Step 1: Get comfortable
Look at the graphical parts list, compare the parts you have to the pictures and make sure you can
identify every component. Look at the color bands on the resistors. Read the numbers on the other
components.

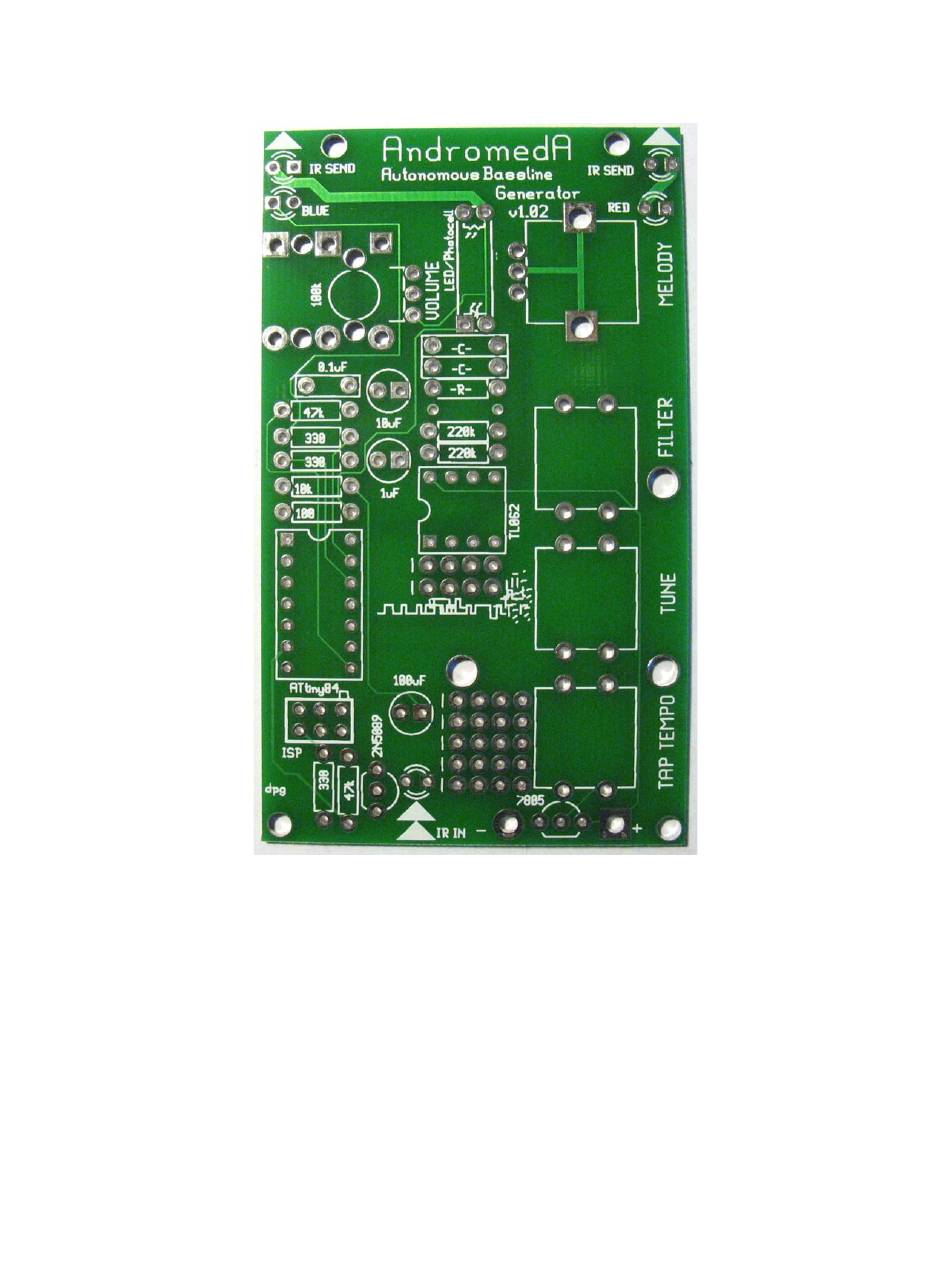

It's also a good idea to spend a moment getting familiar with the PCB, too.
Pull out your tools: soldering iron, solder, flush cutters, maybe needle-nose pliers.
Take a deep breath.... here we go!
