- Page 1 Artistic Licence Rail-Split RDM User Guide Serial nos. 4900 and upwards Rail-Split RDM User Guide Version 5-0...
- Page 2 MUST be installed in an appropriate IP rated cabinet. Do not allow this product to be exposed to rain or moisture. Do not allow liquid to penetrate the product. Please recycle all packaging. Copyright © Artistic Licence Engineering Ltd. All rights reserved. Download the user guide by scanning the following QR code: Page 2...
-
Page 3: Mounting Diagram

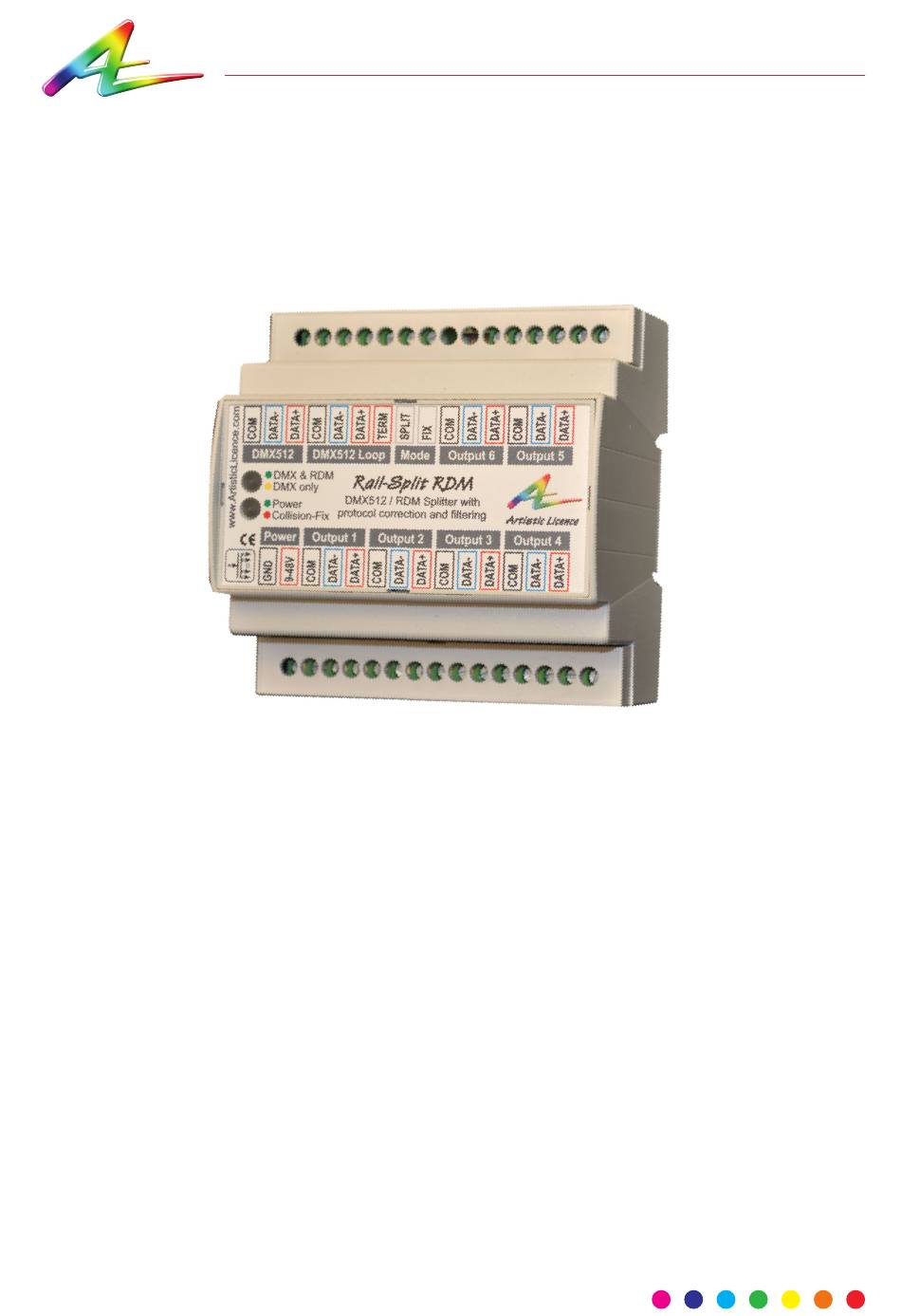

Mode Output 6 Output 5 DMX & RDM Rail-Split RDM DMX only DMX512 / RDM Splitter with Power protocol correction and filtering Collision-Fix Artistic Licence Power Output 1 Output 2 Output 3 Output 4 Page 3 Rail-Split RDM User Guide... - Page 4 Data + Overview Rail-Split RDM is a fully bi-directional DMX512 splitter and distribution amplifier, with the added feature of a ‘data fixer’ for DMX. The latter functionality is used for resolving flickering problems arising from product incompatibility issues - see ‘Fixer Mode’ on page 6 for more information.
-
Page 5: Application Diagram
Earth-Ground and 0V the DMX outputs become Ground Referenced. Otherwise the DMX outputs are Floating. When the recommended PSU is used, DMX outputs are Floating. Application Diagram The diagram below shows how Rail-Split RDM could be utilised in a typical application. DMX Controller Device 1 Device 2... -
Page 6: Operating Modes
Accepts refresh period from 23 ms – 1000 ms and outputs 30ms Filters out multiple consecutive breaks Re-times bytes of 1 stop bit to 2 stop bits Filters out all non-zero start code packets Re-times digital signal Page 6 Rail-Split RDM User Guide... - Page 7 Rail-Split RDM Input connector: 2-pin screw terminal User guide (1 no.) Ordering Info Input power (max): 8 W Product code: Rail-Split RDM Duty cycle: 100% @ 25°C Accessories (not included) DC fuse: internal resettable fuse for PSU-9-1.5-FER control electronics DMX512 Outputs...
-
Page 8: Warranty
Waste Electrical & Electronic Equipment authorisation. In order to discuss a request to (WEEE) return goods, please email: Artistic Licence is a member of a WEEE Sales@ArtisticLicence.com compliance scheme and will happily recycle any of our products that you, at your expense, return to us.
