Omega Pergola
1.
OVERVIEW
Architecturally inspired retractable pergola that offers outdoor sun & rain protection at the
push of a button. Engineered with European technology and elegant design features with versatile
installation options to integrate into any outdoor space. Components are aluminium and stainless
steel paired with a high quality PVC membrane skin and intelligent Somfy automation.
Advertisement
Summary of Contents for Shade Elements Omega Pergola

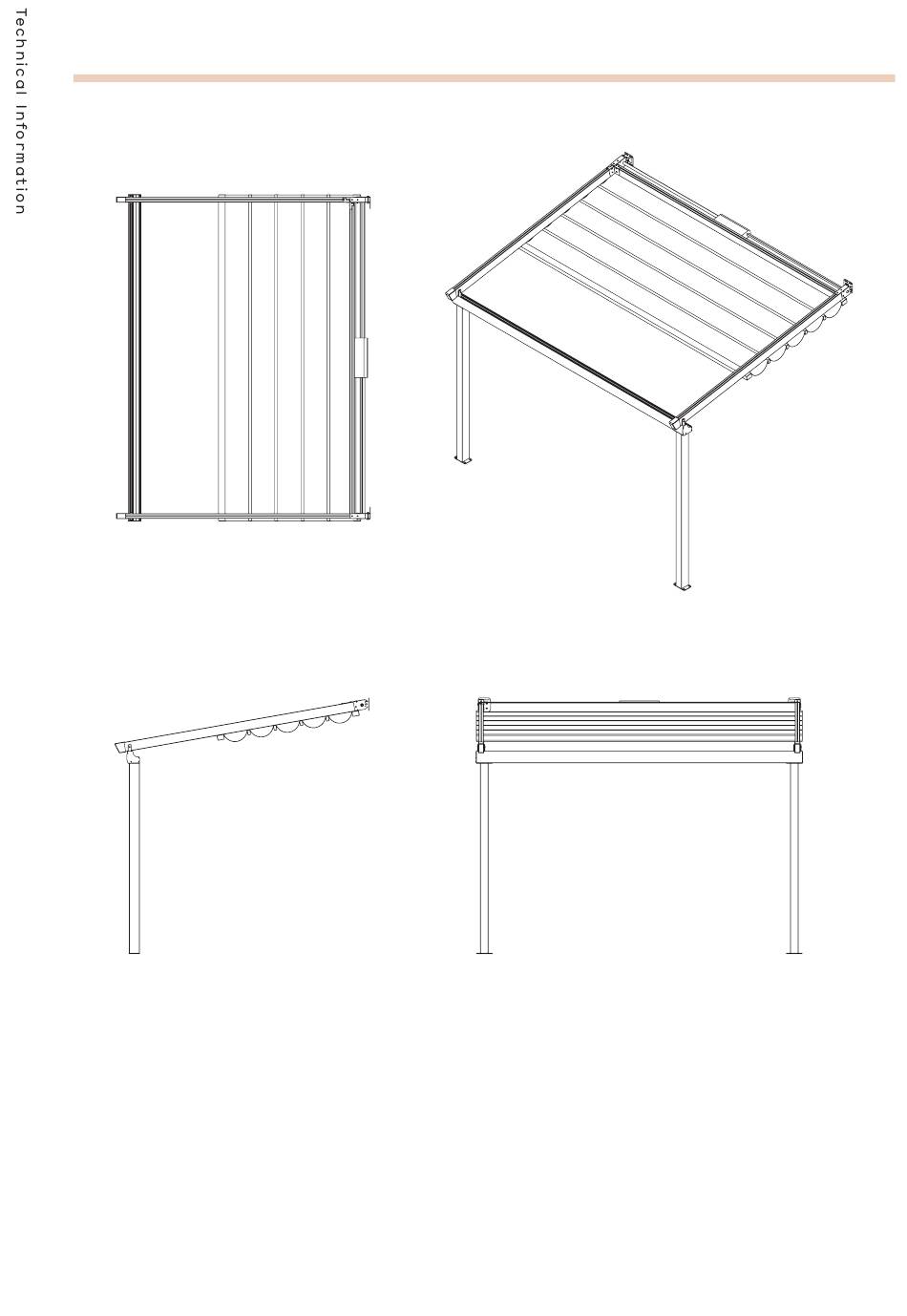

- Page 1 Omega Pergola OVERVIEW Architecturally inspired retractable pergola that offers outdoor sun & rain protection at the push of a button. Engineered with European technology and elegant design features with versatile installation options to integrate into any outdoor space. Components are aluminium and stainless...
- Page 2 Omega Pergola PERGOL A DIMENSIONS Max 4.5m Max 6m ONE MODULE Up to 4.5m wide x 6.0m projection Max 9m Max 6m TWO MODULE Up to 9.0m wide x 6.0m projection Max 13m THREE MODULE Up to 13.0m wide Max 6m x 6.0m projection...
- Page 3 Omega Pergola PROFILE DIMENSIONS 148.8 GUTTER POST RETURN BEAM RAFTER 120 (mm) COUNTER WEIGHT SKIN PROFILE GEARBOX TUBED DRIVE TUBE...
- Page 4 Omega Pergola MOUNTING OPTIONS 12.5 12.5 12.5 12.5 MIDDLE BRACKET POST FOOT OUTSIDE BRACKET RETURN BEAM WALL BRACKET RETURN BEAM CORNER PLATE...
- Page 5 Omega Pergola CONNECTION DE TAILS CONNECTION DE TAILS RAF TER / GUT TER / POST CONNECTION FOOT / POST CONNECTION CONNECTION DE TAILS MOUNTING BRACKE T / RAF TER SLEE VE CONNECTION...
- Page 6 Omega Pergola MOTOR OPERATION MOTOR GE ARBOX MOTOR OPERATION MOTOR DRIVE TUBE (mm) HEIGHT / PITCH DIAGRAM (mm) Dimensions in millimetres (approximate) * Top of wall bracket to bottom of gutter. ** Fabric stack including rafter is approximately 325mm – 375mm.
- Page 7 Omega Pergola MODULES shadeelements.co.nz...
