27-0027-0111
June 2, 2008
Rev-01

Installation and Operation

3-Phase Power Monitoring and
Distribution Unit
Manual
72A-196BAREM Series
72A-190BQREM Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 72A-190BQREM Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Spectrum Brands 72A-190BQREM Series

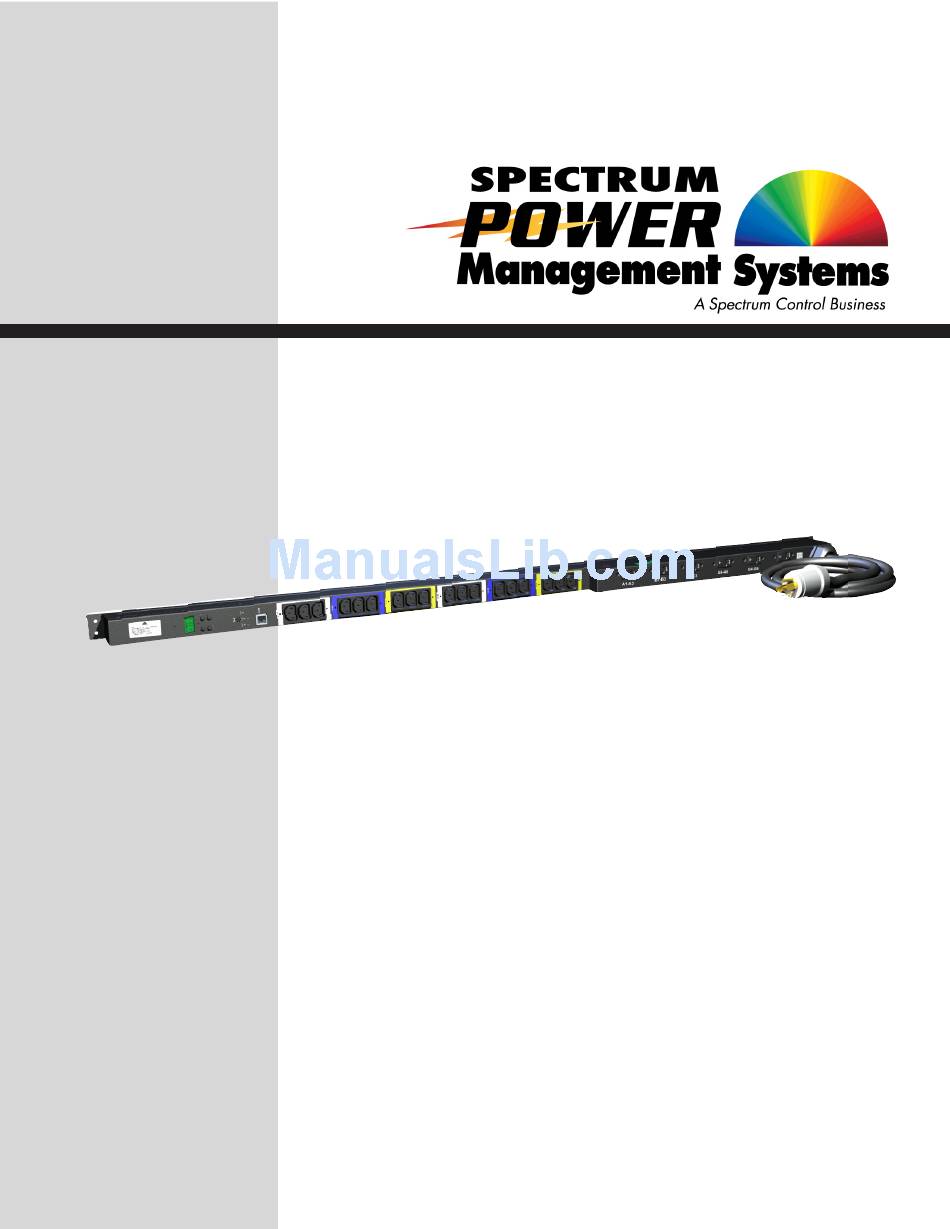

  • Page 1: Installation And Operation

    27-0027-0111 June 2, 2008 Rev-01 Installation and Operation 3-Phase Power Monitoring and Distribution Unit Manual 72A-196BAREM Series 72A-190BQREM Series...
  • Page 2: Table Of Contents

    27-0027-0111 Contents SCI P/N: 72A-196BAREM Series 72A-190BQREM Series ntroduction & Safety Information ... Technical Specifications ... Declaration of Conformity ... 5 Connections and Installation Operating Environment ... 6 Electrical Connections ... 7 Input and Output Connections ... 7 LAN Module and Communications ... 8 LAN Module Interface ...
  • Page 3: Introduction & Safety Information

    Manual Conventions Safety Information SCI P/N: 72A-196BAREM Series 72A-190BQREM Series The Spectrum Control PDU is an AC power distribution unit designed to distribute power for up to eighteen (18) AC loads. The PDU distributes 3 phase power to six individual, over current protected, output banks. The unit has multiple alarm capabilities and includes an audible alarm circuit.
  • Page 4: Technical Specifications

    27-0027-0111 Technical Specifications Input Output Environmental Physical SCI P/N: 72A-196BAREM Series 72A-190BQREM Series Global Power Entry IEC 309, 4pole, 5 wire, 32A, Connector WYE connected Nominal Input 3 ∅ 400/230VAC ±10% Voltage Input Frequency 50 – 60 Hz Input Current 72A maximum...
  • Page 5: Declaration Of Conformity

    Spectrum Control, Inc. Power Management Systems 1900 West College Avenue State College, PA 16801 814-272-2700 SCI P/N: 72A-196BAREM Series 72A-190BQREM Series Installation and Operation Manual Spectrum Power Management Systems, a Spectrum Control Business 1900 West College Avenue State College, PA 16801...
  • Page 6: Connections And Installation

    27-0027-0111 Connections and Installation Operating Environment SCI P/N: 72A-196BAREM Series 72A-190BQREM Series • Locate PDU in dry area. • Rack Mount in equipment rack using mounting brackets. • Restricted Access Location not required. • This PDU relies on protective devices in the building installation for short circuit and over current protection.
  • Page 7: Electrical Connections

    Connections and Installation Electrical Connections Input and Output Connections SCI P/N: 72A-196BAREM Series 72A-190BQREM Series • Depress rocker handle of all circuit breakers to “off” position. Example: Breaker Off • Connect input supply cord to a grounded power source rated for the input voltage and current of the PDU.
  • Page 8: Lan Module And Communications

    LAN Module Interface LAN LED Status Guide SCI P/N: 72A-196BAREM Series 72A-190BQREM Series RJ45 LAN Connection The LAN Module provides an interface between a computer network and the power distribution unit using the front RJ-45 jack. Communications between the PDU and a computer can take place via a Telnet session or SNMP manager.
  • Page 9: Lan Module Ip Address, Dhcp, And Auto Ip

    LAN Module IP Address, DHCP, and Auto IP SCI P/N: 72A-196BAREM Series 72A-190BQREM Series The LAN module consists of integrated hardware and a network agent software program. These components provide the ability to configure, control, and monitor aspects of multiple units using a standard web browser. The network interface can operate using Telnet and SNMP.
  • Page 10: Device Discovery

    27-0027-0111 Connections and Installation Device Discovery SCI P/N: 72A-196BAREM Series 72A-190BQREM Series The discovery tool “digi_dev_disc.exe” has the following: 1. “Configure Network Settings” is to configure the IP/Subnet/Gateway. 2. “Restart Device” is to reboot the PDU after assigning the new network configuration . 3. “Refresh View” is to search again.
  • Page 11: Testing The Ip Address Configuration

    Configuration Telnet Configuration Password LAN Module Configuration Using a Telnet Connection SCI P/N: 72A-196BAREM Series 72A-190BQREM Series Once the IP address is assigned, you should test the IP address configuration to be sure it works as configured. Prerequisite This procedure assumes that you have configured the device server with an IP address. Procedure Access the command line of a PC or other networked device.
  • Page 12: Set Pdu And Lan Module To Factory Defaults

    Module to Factory Defaults SCI P/N: 72A-196BAREM Series 72A-190BQREM Series Menu option 8 restores all PDU and LAN module defaults back to the factory settings. This command will ensure that both the LAN module and internal PDU microprocessor are returned to identical communication settings. PDU with LAN modules should have all configu-...
  • Page 13: Exit Configuration Mode

    Mode LAN Module Reflash Instructions SCI P/N: 72A-196BAREM Series 72A-190BQREM Series Select 9 to exit the configuration mode without saving any changes, or select 10 to exit and save all changes. All values are stored in nonvolatile RAM. The LAN Module will automatically reset, but the state of the PDU outputs will not be affected.
  • Page 14: Operational Control Of Pdu

    Operational Control of PDU Front Panel Menu Menu Navigation SCI P/N: 72A-196BAREM Series 72A-190BQREM Series The unit’s LCD is used to monitor incoming power and configure the software. The LCD has two modes of operation: Monitor or Menu. The system menu is organized in a top down tree structure. The unit has four buttons that are used to navigate through the menu system.
  • Page 15 27-0027-0111 Operational Control of PDU SCI P/N: 72A-196BAREM Series 72A-190BQREM Series Alarm Acknowledgment Incoming Power Peaks None Minimum Current Channel A Maximum Current Channel A Minimum Current Channel B Maximum Current Channel B Minimum Current Channel C Maximum Current Channel C...
  • Page 16: Alarm Capabilities

    27-0027-0111 Operational Control of PDU Alarm Capabilities SCI P/N: 72A-196BAREM Series 72A-190BQREM Series CONFIG - CYCLE TIME The CYCLE TIME parameter sets the amount of time to wait before displaying the next bank measurement. The parameter can be set to FAST, MEDIUM, or SLOW.
  • Page 17: Networking Functions

    Telnet Communication SCI P/N: 72A-196BAREM Series 72A-190BQREM Series The PDU LAN Port supports the Telnet and SNMP networking functions, which allow remote monitoring through the network environment. Table 1 lists the available Telnet commands. Table 2 lists the content of SNMP functions –...
  • Page 18: Telnet Commands

    27-0027-0111 Networking Functions Telnet Commands SCI P/N: 72A-196BAREM Series 72A-190BQREM Series telnet <IP Address> 10001 [space before and after address] Table 1 List of Commands: Command Description @AACK Alarm Acknowledgement @SYSF Save settings to EEPROM @BNKV A,? Voltage Bank A...
  • Page 19 27-0027-0111 Networking Functions SCI P/N: 72A-196BAREM Series 72A-190BQREM Series @BULC B,? Read High Threshold Current Bank B @BULC C,? Read High Threshold Current Bank C @BULC T,? Read High Threshold Current Bank T @BLLV A,? Read Low Threshold Voltage Bank A...
  • Page 20: Simple Network Management Protocol (Snmp)

    Networking Functions Simple Network Management Protocol (SNMP) SCI P/N: 72A-196BAREM Series 72A-190BQREM Series An SNMP-managed network consists of three key components: 1. Managed devices 2. Agents 3. Network Management Systems (NMSs) A managed device is a network node that contains an SNMP agent and that resides on a managed network.
  • Page 21: Accessing The Snmp Interface

    27-0027-0111 Networking Functions Accessing the SNMP Interface SCI P/N: 72A-196BAREM Series 72A-190BQREM Series Interactions between the NMS and managed devices can be any of four different types of commands: reads, writes, traversal operations, and traps. • Reads - To monitor managed devices, NMSs read variables main- tained by the devices.
  • Page 22: Key Snmp Settings

    SNMP Security SNMP MAX and MIN Data SCI P/N: 72A-196BAREM Series 72A-190BQREM Series SNMP read community name SNMP read/write name You can access the SNMP settings using Telnet <unit IP address> 9999. The default username and password is “root” and “1234”, respectively.
  • Page 23: Snmp V2 Functions

    27-0027-0111 Networking Functions SNMP v2 Functions SCI P/N: 72A-196BAREM Series 72A-190BQREM Series Table 2 SNMP v2 Functions Variables Voltage Bank A Voltage Bank B Voltage Bank C Current Bank A Current Bank B Current Bank C Total Current on PDU (All banks)
  • Page 24: General Mib Usage

    Infrastructure Monitoring SCI P/N: 72A-196BAREM Series 72A-190BQREM Series This section addresses the loading and compiling of MIBS into Network Management Systems (NMS). Alternatively, you can consult the docu- mentation of other NMS on MIB loading and compilation. Below are the instructions for HP OpenView and IBM NetView, but you should still con- sult HP or IBM documentation, as the products may change.
  • Page 25: Maintenance & Warranty

    Maintenance and Replacement parts Warranty SCI P/N: 72A-196BAREM Series 72A-190BQREM Series There are no user serviceable parts inside the PDU. In the event there is an electronic problem with the unit, please contact the factory. Under normal use and specified operation conditions the PDU is warrant- ed from the day of delivery for a period of three years. During this pe- riod, if the product should fail, the device can be sent back to the factory for repair or replacement at the discretion of Spectrum Control.
  • Page 26: Pdu Front Panel

    27-0027-0111 Installation and Operation Manual PDU Front Panel IEC C13 Outlets 20A Circuit Breakers SCI P/N: 72A-196BAREM Series Date: 6/02/2008 72A-190BQREM Series...
