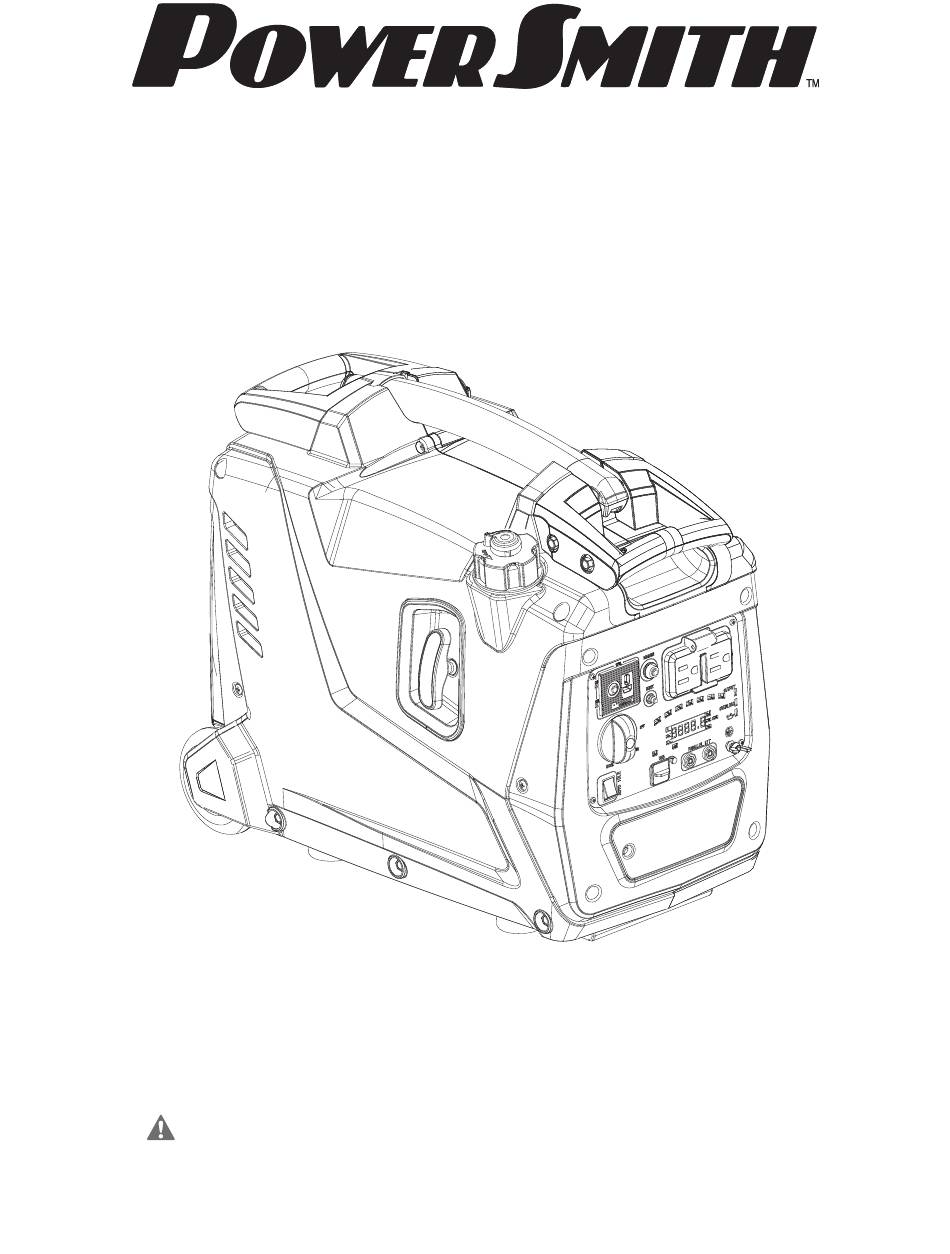

Richpower Power Smith PGA2200i Operator's Manual

2200w digital inverter generator

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

2200W Digital

Inverter Generator

Operator's Manual

WARNING:

To reduce the risk of injury, user must read and understand this

TOLL-FREE

888-552-8665

HELP LINE:

WWW.POWERSMITHPRODUCTS.COM

operator's manual before operating this product.

SAVE THIS MANUAL FOR FUTURE REFERENCE

PGA2200i

Table of Contents

Need help?

Do you have a question about the Power Smith PGA2200i and is the answer not in the manual?

Questions and answers

Summary of Contents for Richpower Power Smith PGA2200i

Page 1 PGA2200i 2200W Digital Inverter Generator Operator's Manual TOLL-FREE 888-552-8665 HELP LINE: WWW.POWERSMITHPRODUCTS.COM WARNING: To reduce the risk of injury, user must read and understand this operator's manual before operating this product. SAVE THIS MANUAL FOR FUTURE REFERENCE...
Page 2: Table Of Contents
English TABLE OF CONTENT CONTENTS---------------------------------------------------------------------------------------2 IMPORTANT SAFETY RULES-------------------------------------------------------------------3-4 SYMBOLS / LABELS---------------------------------------------------------------------------5-6 ELECTRICAL-----------------------------------------------------------------------------------7-8 SPECIFICATIONS---------------------------------------------------------------------------------9 UNPACKING & CONTENTS------------------------------------------------------------------------9 KNOWING YOUR GENERATOR---------------------------------------------------------------10-12 OPERATION---------------------------------------------------------------------------------13-17 MAINTENANCE------------------------------------------------------------------------------18-21 TRANSPORTING / STORAGE-----------------------------------------------------------------21-22 TROUBLESHOOTING----------------------------------------------------------------------------23 WARRANTY-------------------------------------------------------------------------------------24 CALIFORNIA PROPOSITION 65 WARNING The engine exhaust from this product contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm.
Page 3: Important Safety Rules
English IMPORTANT SAFETY RULES DANGER: Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell. LOCATE GENERATOR AT LEAST 20 FEET* AWAY TO REDUCE THE RISK OF CARBON MONOXIDE GETTING INSIDE THE HOME.
Page 4 English IMPORTANT SAFETY RULES Operate the generator on a level surface. If the generator is tilted, fuel spillage may result. Know how to stop the generator quickly and understand operation of all the controls. Never permit anyone to operate the generator without proper instructions. The generator produces enough electric power to cause a serious shock or electrocution when misused;...
Page 5: Symbols / Labels
English SYMBOLS / LABELS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME EXPLANATION Volts Voltage Amperes...
Page 6 English SYMBOLS / LABELS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. DANGER Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
Page 7: Electrical
English ELECTRICAL GUIDELINES FOR USING EXTENSION CORDS that it is acceptable for outdoor use. cord or have it repaired by a qualiﬁed person before using it. Recommended Minimum Wire Gauge for Extension Cords (120 Volt) Nameplate Extension Cord Length Amperes 25 Feet 50 Feet 75 Feet...
Page 8 English ELECTRICAL Estimate how many surge (starting) watts you will need. Surge wattage is the short burst of power needed to start electric motor of tools or appliances such as electric drill or refrigerator. It lasts only a few seconds. Because not all motors start at the same time, total surge watts needed can be estimated by adding only the item with the highest surge watts to the total rated watts.
Page 9: Specifications
English SPECIFICATIONS Portable Generator Model # PGA2200i Surge Power 2200 Watts Running Power 1700 Watts Number of Phases Single Rated Power Factor Rated Speed 5000 RPM Rated AC Output 120V, 60Hz, 14.17A Rated DC Output 12V, 7.5A Rated USB Output 5.0V, 2A IP Rating Rated Ambient Temperature...
Page 10: Knowing Your Generator
English KNOWING YOUR GENERATOR CONTROL PANEL FIG 2 DC Current Breaker DC Outlet AC Current Breaker Output Reset Button AC Outlets Fuel Level Indicator Frequency Indicator Output Indicator Overload Indicator 10. Oil Alarm Indicator 11. Maintenance Indicator 12. Engine Revolution Speed 13.
Page 11 English KNOWING YOUR GENERATOR FIG 4 25. Lift Handle 26. Recoil Starter 27. Fuel Tank Vent 28. Fuel Tank Cap 29. Carrying Handle 30. Handle Locking Pin 31. Unfold Locking Pin 32. Transportation Handle 33. Spark Arrester 34. Transportation Wheel 35.
Page 12 English KNOWING YOUR GENERATOR DC OUTLET -- Provides 12V DC power up to 7.5A. The DC outlet should only be used for charging 12 volt automotive-type batteries. AC OUTLET -- Your generator has two outlets that provide 120V, 60Hz AC power up to 14.17A. These can be used for operating the appliances, electrical lighting, tools, and other motor loads.
Page 13: Operation
English OPERATION APPLICATIONS This generator is designed to supply electrical power to electrical devices, including lights, appliances, tools, and etc. BEFORE STARTING THE GENERATOR WARNING: Read and understand the Important Safety Rules before starting the generator. Location Selection – To avoid exhaust and location hazards, select location with following conditions. Outdoors and well ventilated.
Page 14 English OPERATION Replace and secure the oil cap/dipstick securely. Reinstall the maintenance cover and tighten the cover screws securely. FIG 7 This engine comes with a feature that will shut off the engine when the oil level falls below the safe limit. The engine will not restart until an appropriate oil level is reached.
Page 15 English OPERATION WARNING: Do not smoke or allow ﬂames or sparks in the area where the engine is refueled or where gasoline is stored. Do not overﬁll the fuel tank (there should be no fuel above the upper limit mark). After refueling, make sure the tank cap is closed properly and securely.
Page 16 English OPERATION Turn the auto idle switch to the OFF position and connect the appliance to the generator. If the engine still will not reach normal operating speed, check that the appliance does not exceed the rated load capacity of the generator. USING THE GENERATOR Before using the generator, be aware of the generator's capacity: 2200W: For short time (3 seconds) surge, do not exceed this rated surge power.
Page 17 English OPERATION WARNING: The battery contains sulfuric acid (electrolyte). Contact with skin or eyes may cause severe burns. Wear protective clothing and a face shield. -If electrolyte gets on your skin, ﬂush with water. -If electrolyte gets in your eyes, ﬂush with water for at least 15 minutes and call a physician. Battery posts, terminals and related accessories contain lead or lead components, wash hands after handling.
Page 18: Maintenance
English MAINTENANCE Good maintenance is essential for safe, economical and trouble-free operation. It will also help reduce air pollution. The purpose of the maintenance and adjustment schedule is to keep the generator in the best operating condition. WARNING: Read and understand the Important Safety Rules before starting the generator. DANGER: Shut off the engine before performing any maintenance.
Page 19 English MAINTENANCE CHANGING ENGINE OIL (FIG 14) For best performance, engine oil should be changed after every 100 hours or 6 months of operation. Drain the oil while the engine is still warm to assure rapid and complete draining. Loosen the cover screws and remove the maintenance cover. Remove the oil dipstick and wipe it clean.
Page 20 English MAINTENANCE SPARK PLUG REPLACEMENT (FIG 16) To ensure proper engine operation, the spark plug must be properly gapped and free of deposits. Loosen the maintenance cover screws and remove the maintenance cover. Remove the spark plug cap. Clean any dirt from around the spark plug base. Use the wrench to remove the spark plug.
Page 21: Transporting/Storage
English MAINTENANCE A. Spark arrester B. Spark arrester screw C. Mufﬂer shield D. Mufﬂer shield screws FIG 17 DRAINING FUEL TANK/CARBURETOR (FIG 18,19) Unscrew the fuel tank cap, empty the fuel tank into an approved gasoline container using a commercially available hand siphon.
Page 22 English TRANSPORTING/STORAGE Transportation handle (FIG 20) When carrying the generator set for a short distance, the transportation handle and transportation wheel could be used for easy transport. Pull out the unfolded ring, and unfold the transportation handle until a CLICK sound. Pull out the folded ring, and fold the transportation handle to the original position after transporting.
Page 23: Troubleshooting
English TROUBLESHOOTING WARNING: Risk of electric shock. Before any troubleshooting, switch off the engine. Suspected malfunctions are often due to causes that users can ﬁx themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. Problems Probable Causes Solutions...
Page 24: Warranty
English WARRANTY This product is warranted free from defects in material and workmanship for 3 years after date of purchase. This limited warranty does not cover normal wear and tear or damage from neglect or accident. The original purchaser is covered by this warranty and it is not transferable.
Page 25 NOTES...
Page 26 NOTES...
Page 27 NOTES...
Page 28 Richpower Industries, Inc. 736 Hampton Road Williamston, SC USA www.richpowerinc.com 2018. 08. V01...
