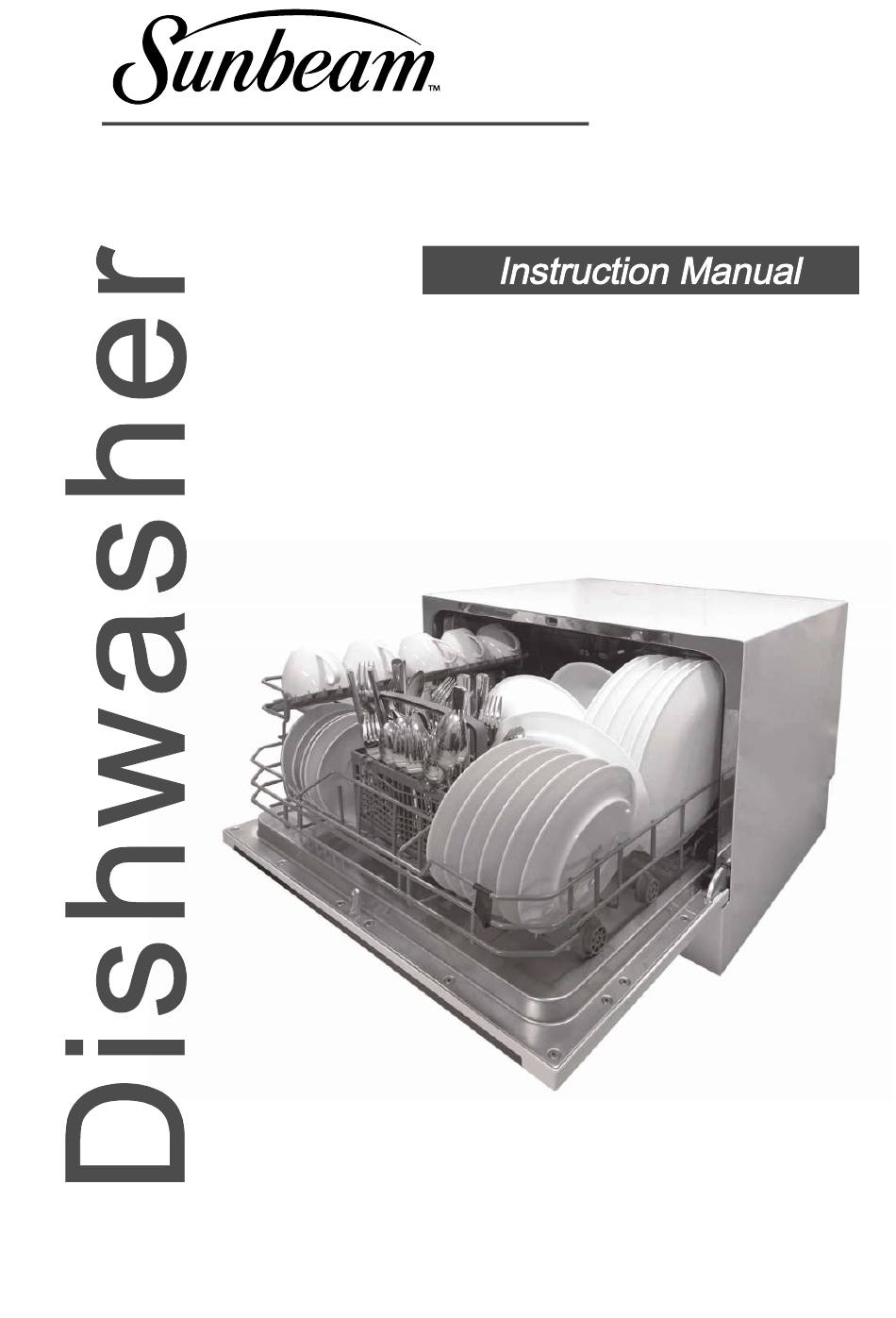

- Page 1 DWSB3607WW DWSB3607BB DWSB3607RR...
- Page 2 Dear Customer, Please carefully read this manual before using the dishwasher. It will help you to use and maintain the dishwasher properly. Keep it to refer to at a later date. Pass it on to any subsequent owner of the appliance. This manual contains sections of Safety Instructions, Control Panel............2 Operating Instructions, Installation Instructions and...
- Page 3 READ ALL INSTRUCTIONS BEFORE USING AND SAVE FOR FUTURE REFERENCE. When using your dishwasher, follow the precautions listed below: GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in a risk of electric shock.
- Page 4 IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time. WQP6-3607-US Start/Pause Button: Press this button to start Power Button: To turn on/off the power supply. or pause the dishwasher. Wash Cycle Selector: Press the button Rinse aid function indicator to select wash cycles.
- Page 5 Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes. That can leave spots and streaks. It also improves drying by allowing water to sheet off the dishes. Your dishwasher is designed to use liquid rinse aids.
- Page 6 Adjusting Rinse Aid Dispenser The rinse aid dispenser has four settings. The recommended setting is "3". If the dishes still are not drying properly or are spotted, adjust the dial to the next highest level "4". Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.
- Page 7 Detergent Dispenser The dispenser must be refilled before the start of each wash cycle following the instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent and rinse aid then conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. Also, more heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.
- Page 8 Consider buying utensils which are identified as dishwasher-safe. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the wash cycle has ended. Are not suitable: Are of limited suitability: Some types of glasses can become Cutlery with wooden, horn china or dull after a large number of washes mother-of-pearl handles...
- Page 9 Position the dishes and cookware so that they will not get moved by the spray of water. Cups Serving Bowl Glasses Saucers Oval Platter Fruit Bowl Bread and Dinner Plates Butter Plates Cutlery Basket Plate Racks of Basket The basket is fitted with plate racks which can be stowed horizontally if required.
- Page 10 Cutlery should be placed in the cutlery basket with handles at the bottom. If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown. Dinner Forks Salad Forks Knives...
- Page 11 Means: need to fill rinse into the rinse aid dispenser. *AHAM DW-1-2005: This program is the test cycle, the rinse aid dispenser setting is recommended to Position 3. Program Information Pre-wash Pre-wash For the heaviest soiled loads, Wash such as pots, pans, casserole Wash 0.6oz dishes and dishes that have...
- Page 12 Premise: You can still modify the wash cycle if the cycle has just started. If cycle has begun the detergent may have already been released and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled. (See the section titled "Filling the Rinse Aide Dispenser").
- Page 13 The filter prevents larger remnants of food or other objects from getting inside the pump. The filter system consists of a coarse filter, a flat ( ain filter) and a micro filter (fine filter). Main filter Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down the drain.
- Page 14 Inspect the filters for residue/build up after each use. By unscrewing the coarse filter you can remove the filter system. Remove any food remnants and clean the filters under running water. The entire filter assembly should be cleaned once a week. Cleaning The Filter To clean the coarse filter and the fine filter, use a cleaning brush.
- Page 15 Cleaning the Spray Arms The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging. Wash them under running water and carefully replace them in their seats, checking that their rotary movement is in no way impeded. Grasp the middle of the spray arm, pull it upwards to remove it.
- Page 16 Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation. Do not use an extension cord or an adapter plug with this appliance.
- Page 17 Water Connection Back View Your dishwasher comes equipped with a 'quick connect' assembly (includes inlet and drain hose). The faucet adapter must be installed on the faucet before you can connect the dishwasher. This adapter is included inside your dishwasher. The faucet adapter is compatible with faucets inclusive of either male (outside) or female (inside) threaded faucet connections.
- Page 18 Connection of Drain Hoses ． Screw the faucet adapter onto (or into) the faucet tap. Check for leaks (use tape to eliminate if necessary). Connect the six-sided connection of the drain hose to the drain port connection on the back of the dishwasher cabinet.
- Page 19 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other Dishwasher doesn't circuit breaker tripped. appliances sharing the same circuit with the dishwasher start Power supply is not Make sure the dishwasher is turned on and the door is turned on.
- Page 20 The dishes The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. are not clean The wash cycle was Select a more intensive wash cycle. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent.
- Page 21 6 Place settings 2017 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. Sunbeam logo is a trademark of Sunbeam Products, Inc. used under license. All rights reserved. Manufactured by Foshan Shunde Midea Washing Appliances Manufacturing Co. Ltd. Distributed by Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd.
