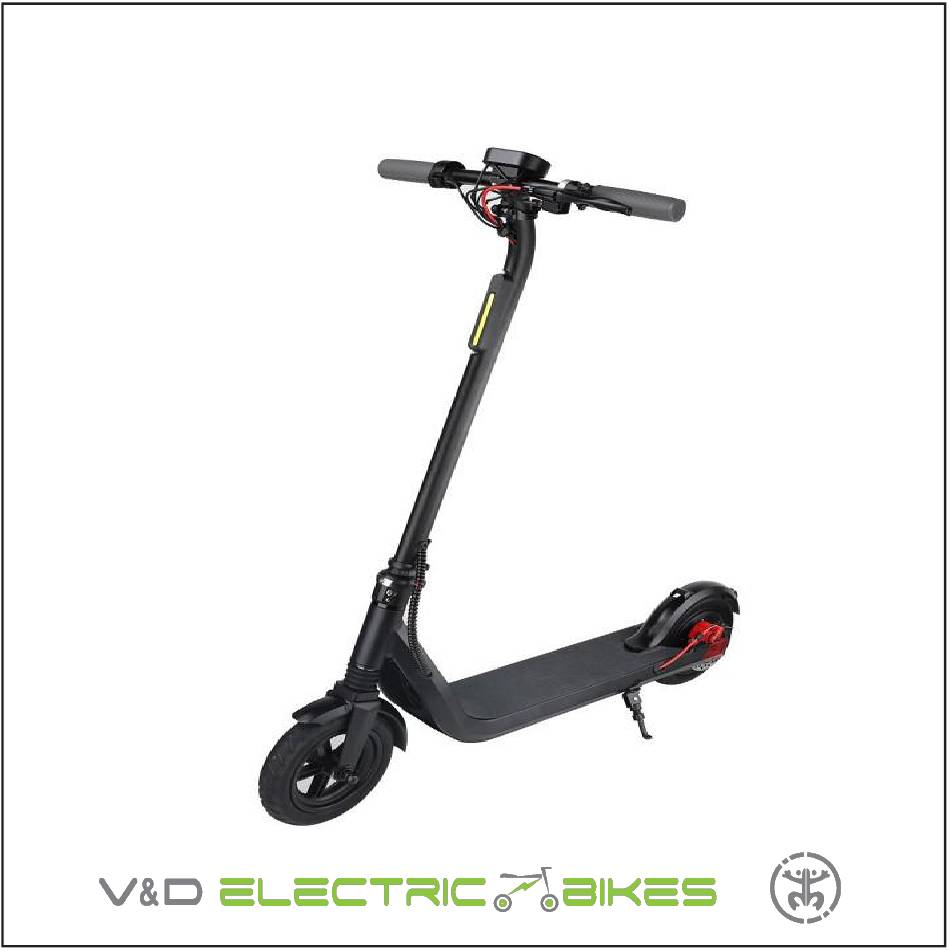

- Page 1 Scoot E-3 Instructions...
-
Page 2: Table Of Contents
Directory ································ 01 Products and accessories 2. Instrument description ·································· 02 3. Folding steps ············································· 02 4. Operating instructions ·································· 03 5. Functional features ······································ 04 6. Charger connection ····································· 05 7. Safety instructions ······································· 06 8. Daily maintenance and maintenance ·················· 07 9. -
Page 3: Products And Accessories
Products and accessories Operating instructions Hexagon wrench The adapter －１－... -
Page 4: Instrument Description
1. Instrument description For your better operation, please read the instructions carefully. speed electricity Gear position Headlight Gear shift Switch switchboard 1. Operation instructions 1. Push the button on/off. 2. After starting up, press the headlight switch to turn on the headlight. 3. -
Page 5: Functional Features
Functional features （1） Fold function； （2） Headlights lighting function, rear taillights； （3） Adapter charge function； （4） Electronics display function: speed； （5） Gear requirements: 3 gear shift at will, 1 gear for low gear, 3 gear for high grade ； （6） Power display: 5 power display ； （7）... -
Page 6: Charger Connection
Charger connection adaptor Car port Charging port Insert charging plug into charging port Note: please aim the adapter socket at the charging port and insert again －４－... - Page 7 Folding steps 1、 ： folding ①Hold the clasp in your hand and pull it out ②Push the front tube down（Pay attention to the position of limit position） ③Finish folding when you hear "click" Card buckle 2、clasp： ①The tap is pushed upwards and the snap lock is raised －５－...
-
Page 8: Safety Instructions
7 Safety instructions It must be worn with helmets and protection No cycling into motor vehicle driveways and car mixed flow of residential district ， Do not drive in water exceeding 2CM。 No more people riding or hugging children。No riding up or down stairs or escalators，Encounter deceleration belt, elevator threshold, potholes road surface，Please keep low speed (3 ~ 10KMH) or stop using and get off the cart。... -
Page 9: Daily Maintenance And Maintenance
Daily maintenance and maintenance Cleaning and storage If the car body surface stains, use soft cloth dips in water to wipe a little amount; If the stain is difficult to clean, use toothpaste on a soft cloth and wipe it with a wet cloth. Tip: do not use alcohol, gasoline, kerosene or other corrosive, volatile chemical solvent cleaning, otherwise it will seriously damage the appearance and internal structure of the car. - Page 10 Product parameters Body color: black Controller: Liquid crystal Positive octave controller Vehicle weight: 12 KG Electric machine: 450W/350W brushless motor Vehicle gross 15.1KG Braking way: Electronic brakes weight: and mechanical brakes Maximum weight: 120KG Battery type: 18650 lithium batteries Packing size: 112*20.5*55.5cm Battery capacity: 6AH/8AH/10AH...
