INSTALLATION INSTRUCTIONS
EVOAQ Ventilation Controller
Please read all instructions before commencing installation.

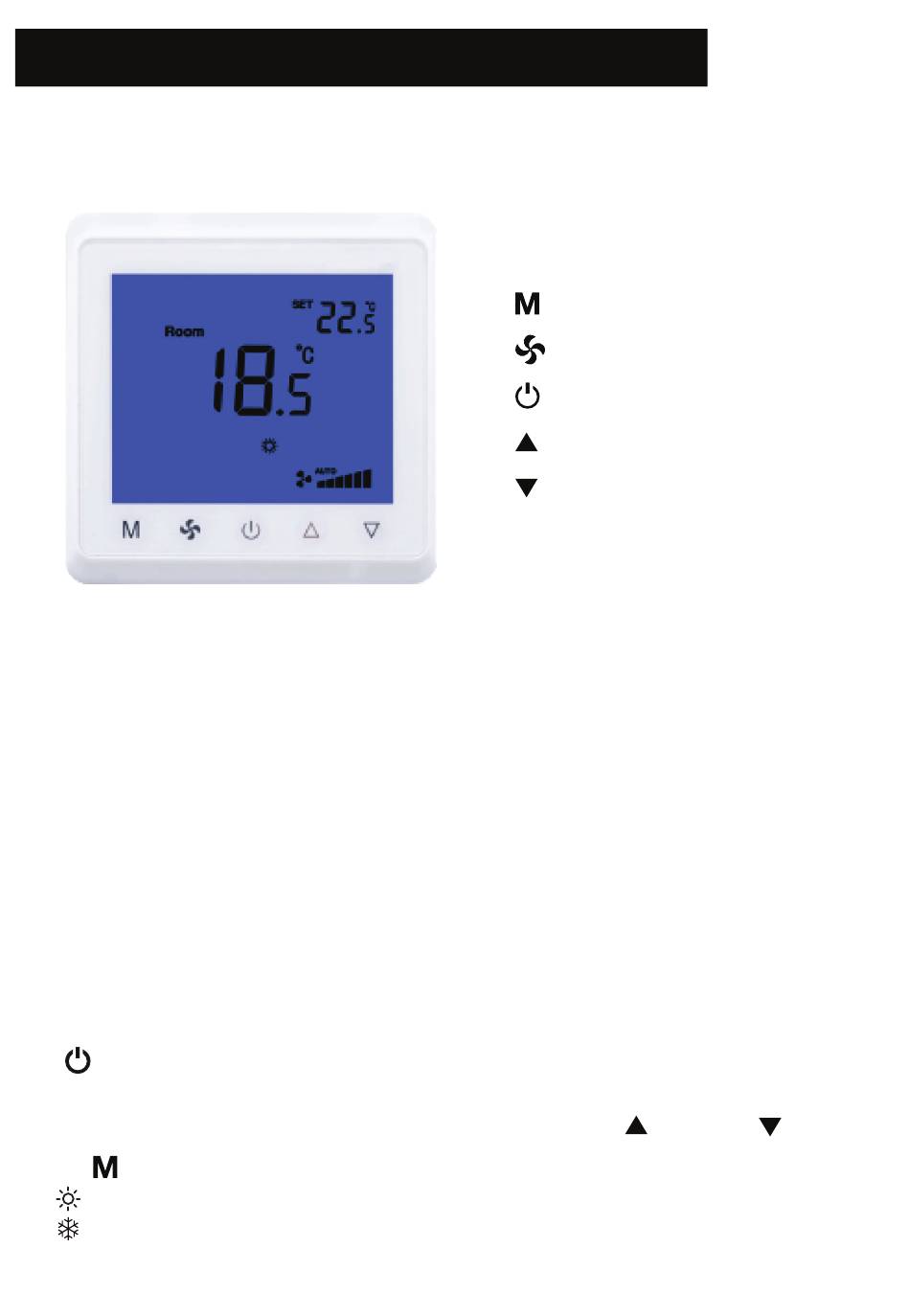

Automated Touch Screen Overview

This digital controller has been specifically designed to ensure the best possible ventilation for
your home. The large screen is designed to measure the indoor air temperature using a high
precision built-in sensor.
The digital controller communicates your ventilation requirement to the intelligent fan control
board which is constantly sensing the air quality and adjusting the fan speed. By selecting the
ventilation requirement this control board will increase/decrease the amount of ventilation to
your house. The ventilation requirement is adjusted according to your Set Comfort
Temperature.
No further inputs or adjustments are required. Simply set and forget.
Display Inform at ion
Off
System is Off. The system will switch to shutdown mode and stop after several minutes.
Set Comfort Temperature – The controller adjusts the ventilation requirement according to the
set temperature. Adjust the set temperature using the Adjust Up
Mode
Switch between Summer and Winter mode
Summer - Heat Transfer OFF / Air is taken from outside
Winter - Heat Transfer ON / Air is taken from the roof space
NB Without the respective air source options installed the mode selection has no effect.
Page 1
Mode
Ventilation rate adjust
Power ON/OFF
Set Comfort Temperature Up
Set Comfort Temperature Down
and Down
buttons.
V1.1:20181005
