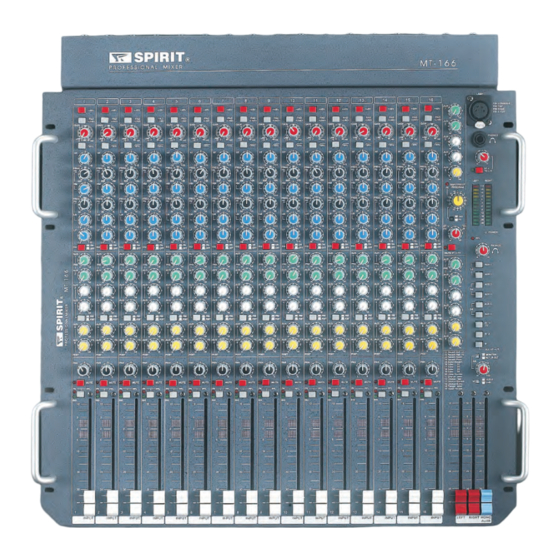

- Page 2 The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintance...
- Page 5 1. +48V Switches +48VDC to the channel input XLR for powering microphones or DI boxes that need phantom power. The power is current limited through 6k8 ohm resistors to pins 2 and 3. WARNING: Do not connect unbalanced sources or cables to inputs with phantom power selected.
- Page 6 1 0 ~ 1 4 . AUX SENDS These rotary controls adjust how much channel signal is mixed to the aux outputs. Each of the 6 auxes has its own control. They adjusts from fully off to +6dB boost. Unity gain 0dB is marked at 3 dB lock position.
- Page 7 1 . AUX1~AUX5 Effect return Adjust effect Aux1~ Aux5 output 2 2.DSP Effect selector switch The effect have 16 kinds of procedures , and can be Clockwise or counterclockwise to change the effect . 3 .built-in DSP effect (hidden switch) To push built-in DSP 4.ST1 return , built-in DSP and volume control To be changed ST1 and built-in effect from switch to +6db...
- Page 8 13.AUX1~AUX6 master level control Adust AUX1~Aux6 output level , level control range close to =6db 14.Monitor switch 9 switchs for headphone monitor and level signal . According to priority to work . if all the switch on work ,that means all post-faders lefe and right channel supply to monitor headpone ., Aux1 and AUX2 push means Aux1 supply signal to left channel , AUX2 supply single to right channel to return monitor , if stereo channel AUX1 and...
- Page 9 15.AB Monitorl AT LR Out AB OUTPUT This is an additional stereo output that can be configured as a separately controlled mix output or a local loudspeaker monitor send. A recessed mode switch above the AB level control selects the source. Use a pen or pointed object to change the setting.
- Page 10 1. XLR input jack 3 standard XLR jack such as pin=1 ( groundwire ) pin=2 (hot (+)) Pin3=cold (-) 2 . input jack 1/4(6.25mm)jack for balance and unbalance level signal .top= hot (+),ring =cold (- ) , shield =groundwire input and Mic input at the time to use , if connect XLR input , must be keep not inset line .
- Page 12 -60 to +10dBu MIC （ ） Input channel： balance -40 to +10dBu LINE（balance） MIC 2k ohm LINE>10k ohm Max output level: XLR +26dBu into 600 ohms max load Jack +21dBu into 2k ohm max load Frequency 20Hz to 40kHz +/-0.5dB response (at +10dBu 1kHz): <...
