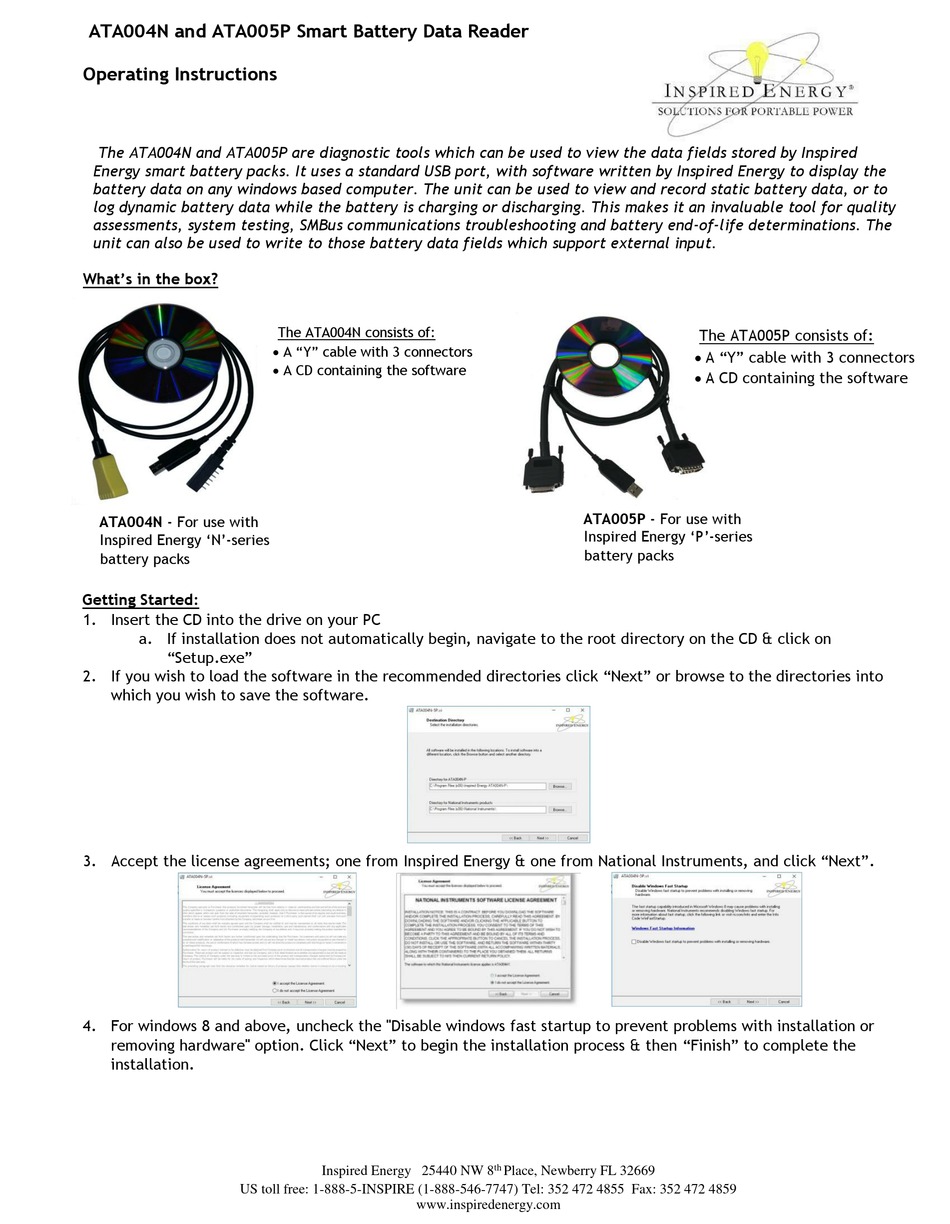

ATA004N and ATA005P Smart Battery Data Reader
Operating Instructions
The ATA004N and ATA005P are diagnostic tools which can be used to view the data fields stored by Inspired
Energy smart battery packs. It uses a standard USB port, with software written by Inspired Energy to display the
battery data on any windows based computer. The unit can be used to view and record static battery data, or to
log dynamic battery data while the battery is charging or discharging. This makes it an invaluable tool for quality
assessments, system testing, SMBus communications troubleshooting and battery end-of-life determinations. The
unit can also be used to write to those battery data fields which support external input.
What's in the box?
ATA004N - For use with
Inspired Energy 'N'-series
battery packs

Getting Started:

1. Insert the CD into the drive on your PC
a. If installation does not automatically begin, navigate to the root directory on the CD & click on
"Setup.exe"
2. If you wish to load the software in the recommended directories click "Next" or browse to the directories into
which you wish to save the software.
3. Accept the license agreements; one from Inspired Energy & one from National Instruments, and click "Next".
4. For windows 8 and above, uncheck the "Disable windows fast startup to prevent problems with installation or
removing hardware" option. Click "Next" to begin the installation process & then "Finish" to complete the
installation.
US toll free: 1-888-5-INSPIRE (1-888-546-7747) Tel: 352 472 4855 Fax: 352 472 4859
The ATA004N consists of:
 A "Y" cable with 3 connectors
 A CD containing the software
Inspired Energy 25440 NW 8
www.inspiredenergy.com
ATA005P - For use with
Inspired Energy 'P'-series
battery packs
th
Place, Newberry FL 32669
The ATA005P consists of:
 A "Y" cable with 3 connectors
 A CD containing the software
