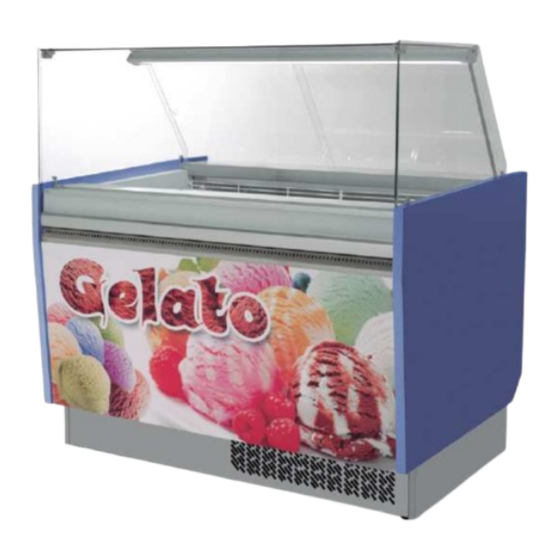

Gelato display cases

Advertisement

Quick Links

VBZ Ibiza Cases
GELATO DISPLAY CASES
Service & Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VBZ Ibiza and is the answer not in the manual?

Questions and answers

Summary of Contents for Infrico VBZ Ibiza

  • Page 1 VBZ Ibiza Cases GELATO DISPLAY CASES Service & Installation Manual...
  • Page 2: Table Of Contents

    CONTENTS GENERAL INFORMATION ........................3 SAFETY PRECAUTIONS ......................... 3 SERIAL DATA PLATE..........................3 RECEIVING AND INSPECTING THE EQUIPMENT .................. 4 INSTALLATION ............................4 Location ............................4 Uncrating ............................. 5 Ventilation ........................... 5 Leveling ............................5 Sealing Case to Floor ........................6 Initial cleaning procedure ......................
  • Page 3: General Information

    Congratulations on your purchase. This refrigerator has been manufactured under strict quality controls and meets the high standards set by Infrico. Before shipping, each individual cabinet has been tested in order to assure a quality product. Furthermore, it has been produced with recyclable materials using an environmentally friendly process, making an active contribution to the preservation of our environment.
  • Page 4: Receiving And Inspecting The Equipment

    RECEIVING AND INSPECTING THE EQUIPMENT • All Infrico products are factory tested for performance and are free from defects when shipped. • When your equipment arrives, you should carefully inspect the unit for damage during delivery. • If damage is detected, you should save all the crating material and make note on the carrier's bill of lading describing the damage.
  • Page 5: Uncrating

    Uncrating These Infrico units are shipped from the factory on a wooden pallet and packaged in a wooden container. The wooden is attached to the wooden base with the use of large staples. These should be first removed to avoid scratching the unit when lifting off the crate.
  • Page 6: Sealing Case To Floor

    Verify that this information exactly matches the electrical characteristics at the installation location. NOTE: Infrico requires that a sole use circuit be dedicated for the unit. Failure to do so voids warranty.
  • Page 7: Startup Procedure

    Furthermore, never use an adapter plug. WARNING: Infrico will not warranty any units that are connected to an extension cord. The wiring diagram of the purchased model will be provided attached to this manual as well as other useful documents.
  • Page 8: Defrost Control

    The temperature is set at the factory but local conditions may need slight adjustment. : This turns the condensing unit and lights off. There is still power to the controller. : for displaying or modifying the set point. When displaying the maximum and minimum temperature, these can be deleted by keeping the button pressed for 3 second.
  • Page 9 After every cycle, the water generated is routed to a pan on the rear of the unit and is evaporated by the heat given off by the compressor except to VBZ where this pan must be removed manually. The defrost timer is located on the condensing unit, in the back of the cabinet. UP key DOWN key DEF key...
  • Page 10: Loading Product

    These models defrost with every cycle of the compressor. The water generated is routed to a pan on the rear of the unit and is evaporated by the heat given off by the compressor. Important: If the thermostat is set too cold, the compressor will be running continuously and the evaporator will become blocked by ice.
  • Page 11 clean cloth. Failure to dry all surface completely may cause water stains. There are also stainless steel cleaners available which can restore and preserve the finish of the steels protective layer. • Return all accessories to their initial positions and plug the unit in. •...
  • Page 12: Specifications

    Drain Maintenance Each unit has a drain located inside the unit which removes the condensation from the evaporator coil and evaporates it at an external condensate pan. If you notice excessive water accumulation on the inside of the unit be sure the drain tube is connected from the evaporator housing to the condensate evaporator drain pan.
  • Page 13 PROBLEM POSSIBLE SOLUTION 1.- Low voltage. 2.- Unit wired incorrectly. 3.- Starting capacitor seal. Compressors start, but starting 4.- Running capacitor defective. remains in circuit. 5.- Starting relay defective. 6.- High head pressure. 7.- Bearings of pistons tight-low oil charge. 1.- Low voltage.
  • Page 14: 11 Warranty

    PROBLEM POSSIBLE SOLUTION 1.- Control differential set too close. 2.- Refrigerant undercharge, check pressure control. 3.- Refrigerant overcharge. Compressor short cycles 4.- Discharge valve leaking. 5.- Cutting out on high pressure control, if used. 6.- Cutting out on overload protector because if tight bearings struck piston, high head pressure or restricted air cooled condenser.
  • Page 15: Two Year Parts & Labor Warranty

    If there is a defect in material or factory workmanship covered by this Warranty reported to Infrico during the period the applicable Warranty is in force and effect, Infrico will repair or replace, at Infrico’s option, that part of the Equipment that has become defective. Infrico will cover labor cost within (2) years from the Warranty Commencement date or (27) months from shipment date, whichever occurs first.
  • Page 16: Warranty Conditions For The Supplied Products

    User discovered, or should have discovered, the claim. In connection with all claims under this Warranty, Infrico will have the right, at its own expense, to have its representatives inspect the Equipment at the User’s premises and to request all of User’s records pertaining to the Equipment to determine whether a defect exists, whether the conditions set forth in this Warranty have been satisfied, and whether or not the applicable Warranty is in effect.
  • Page 17: Exclusions From And Conditions To Warranty Coverage

    11. This guarantee shall be invalidated in the case of faults produced as a result of force majeure (weather and geological phenomena, fires, etc.) or those derived from improper or non-compliant installation of the apparatus (connection voltage, power supply fluctuations, electrical connection not conforming to instructions, etc.) or from manipulation of the nameplate or of the data included in this certificate.
  • Page 18: Report For The Client

    11.6 Report for the client Please, complete the following report. User: ___________________________________________________________ Address:_____________________________________ Tel:________________ Town / City State:__________________________________________________ Distributor:_______________________________________________________ Purchase date:____________________________________________________ Model:_________________________ Serial No:_________________________ Compressor No: __________________________ Vendor Signature Purchaser Signature User: ___________________________________________________________ Address:_____________________________________ Tel:________________ Town / City State:__________________________________________________ Distributor:_______________________________________________________ Purchase date:____________________________________________________ Model:_________________________ Serial No:_________________________ Compressor No: __________________________...
  • Page 19 Infrico SL. CR CO-762 Los Piedros-Las Navas s/n 14900 Lucena (Córdoba) España 00 34 957 59 51 16 office 00 34 957 59 51 06 fax asistenciatecnica@infrico.com info@infrico.com www.infrico.com...
