Summary of Contents for SCREENLINE Videolift

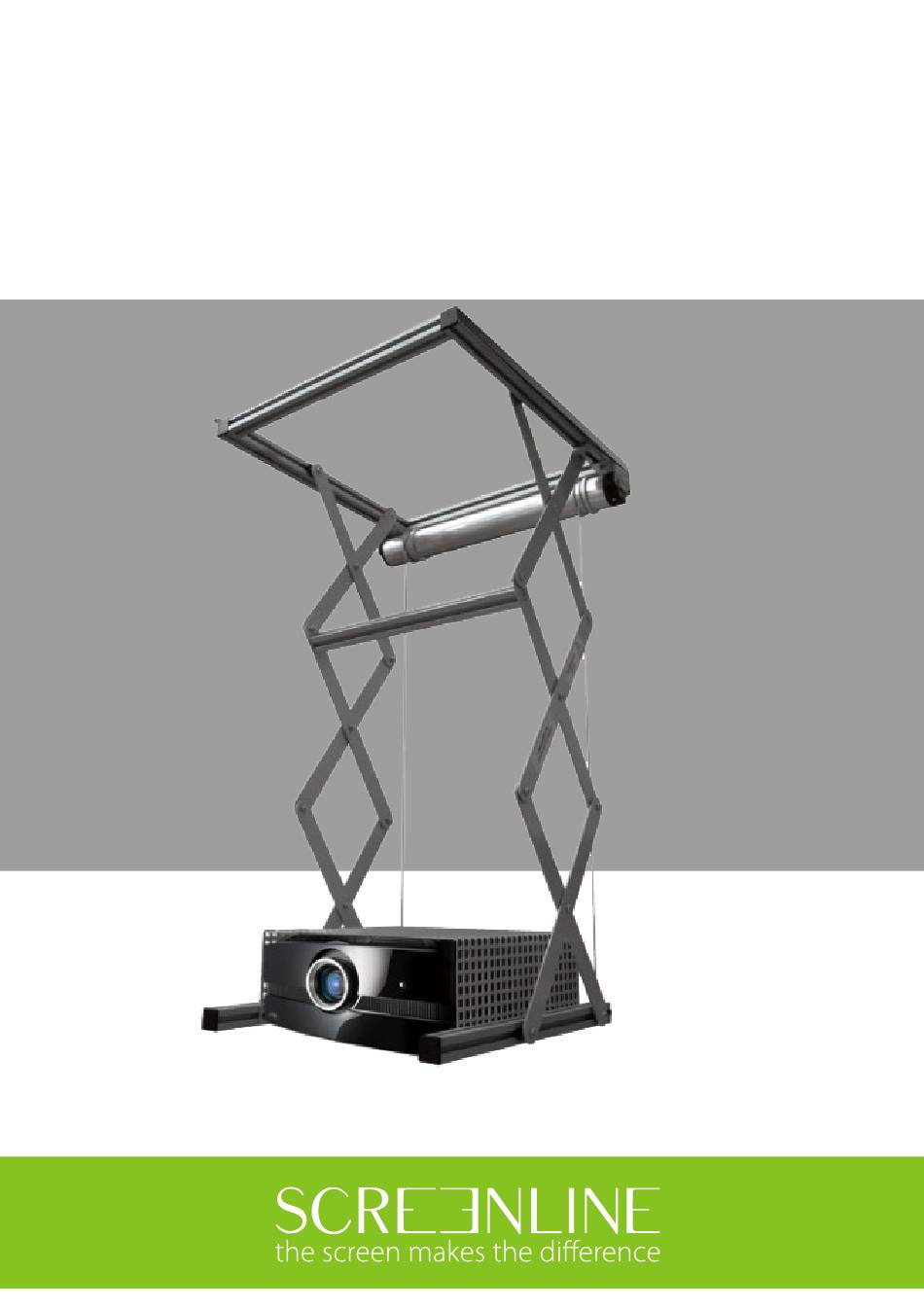

- Page 1 VIDEOLIFT MOTORIZED CEILING BRACKET Videolift...
-
Page 2: General Warranty
GENERAL WARRANTY The product is guaranteed against any manufacturing aw for 2 YEARS from the day of purchase. Should any manufacturing aw occur during this period, the product or its faulty parts will be repaired under the terms and condi ons below at our Assistance Centre with no charge for the cost of the work and the spare parts. -
Page 3: Product Applications
PRODUCT APPLICATIONS VIDEOLIFT motorized ceiling bracket is designed to li3 a videoprojector. Thanks to its motor, it is able to quietly move a weight and has an extension which varies according to the model. By simply adjus ng it, the extension can be reduced both when going up and going down. -
Page 4: Installation Of The Unit
INSTALLATION OF THE UNIT The installa on must be carried out by specialized personnel. Install the ceiling unit in the desired posi on using the most suitable *xing system for the kind of ceiling. Only connect the unit to the power supply when the installa on is *nished. ... -
Page 5: Maintenance
MAINTENANCE Before performing any maintenance opera on, disconnect the appliance from the power supply (unplug it) using an bipolar switch. A yearly check is recommended in order to verify: the proper fastening of the bracket; the integrity of the li3ing cables and the power supply cable; ... - Page 6 VIDEOLIFT LARGE 100/200 (30 KG) closed bracket projector holder code overall basket size cm. dimensions cm. Building materials characteristics: zinc-coated project holder metal net basket; zinc-coated made pantograph system; 2 to 4 lifting strand steel cables, according to model and payload.
- Page 7 VIDEOLIFT MEDIUM 100/200(18KG) closed bracket projector holder overall basket size cm. code dimensions cm. Building materials characteristics: zinc-coated project holder metal net basket; zinc-coated made pantograph system; 2 to 4 lifting strand steel cables, according to model and payload. Optional: cable holder chain – radio-frequency remote control.
- Page 8 VIDEOLIFT SMALL (15 kg) projector holder speed basket size cm. code Building materials characteristics: zinc-coated project holder metal net basket; zinc-coated made pantograph system; 2 to 4 lifting strand steel cables, according to model and payload. Optional: cable holder chain – radio-frequency remote control.
- Page 9 3) Insert the false ceiling panel inside the frame. You might have to slightly trim it beforehand in order to adapt it to the internal measurements of the panel holder frame. 4) Fix the panel holder kit to the Videolift motorized bracket. VIDEOLIFT MODEL...
