Summary of Contents for Alienware 510H 7.1

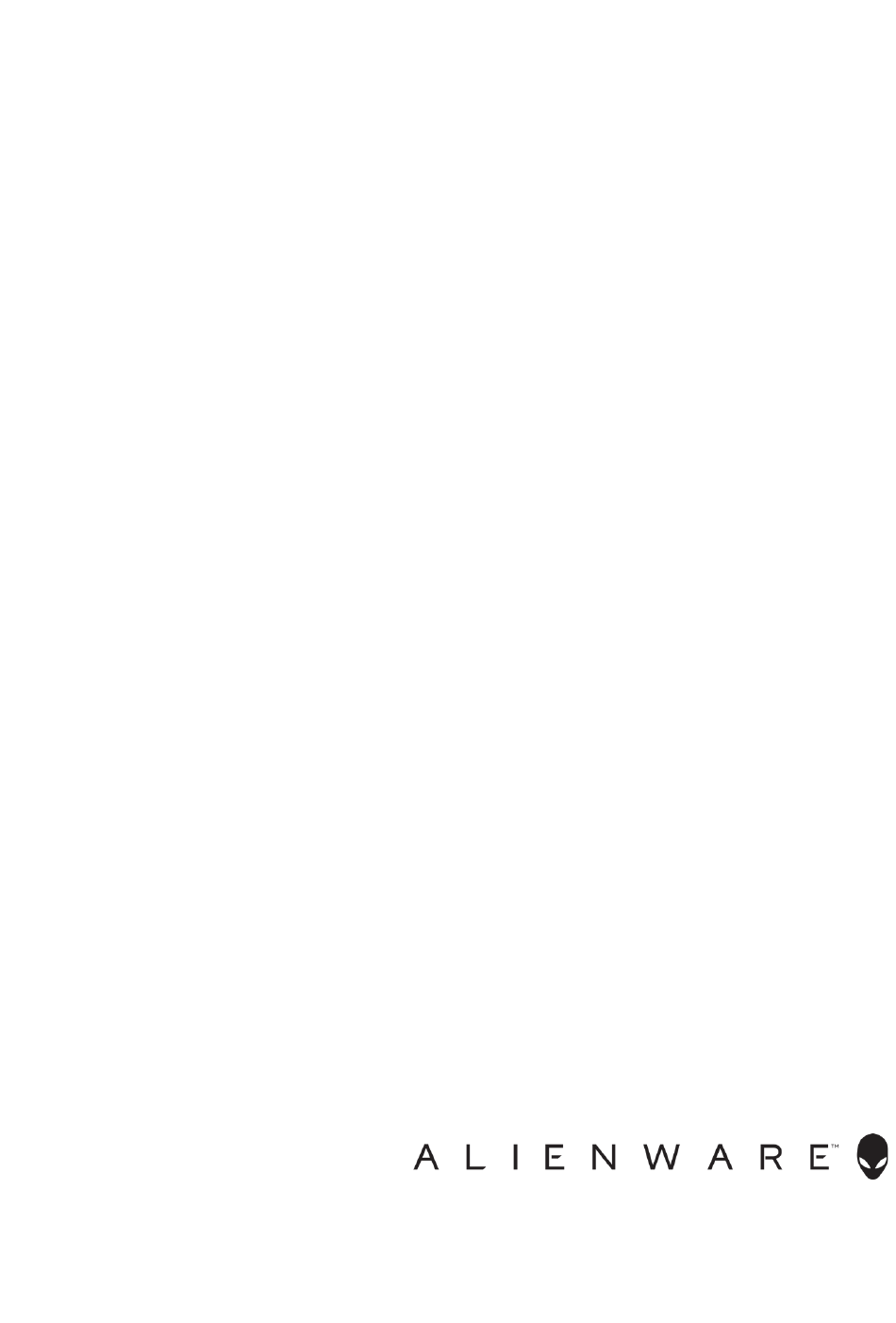

- Page 1 Alienware 510H 7.1 Gaming Headset User Guide Headset Model: AW510H Regulatory Model: HS2001/UD2001...
- Page 2 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
-
Page 3: Table Of Contents
Configuring the headset ....9 Alienware Command Center .....12 Installing Alienware Command Center (AWCC) . - Page 4 Troubleshooting ....... .18 Warranty information ......20 Limited warranty and return policies .
-
Page 5: What's In The Box
What‘s in the box Alienware 510H 7.1 Gaming Audio cable Headset (with microphone mute and volume control) Y-cable with audio and USB cable with DAC (Digital/ microphone connectors Analog converter) (0.15 m) Documents NOTE: The documents shipped with your headset may vary depending on the region. -
Page 6: Features
Features Headset Ear pads 3.5 mm audio port Retractable boom microphone Audio cable Microphone mute switch Volume control wheel Features │... -
Page 7: Usb Cable With Dac
USB cable with DAC Microphone mute switch Volume (+/-) buttons Features │... -
Page 8: Setting Up Your Headset
Setting up your headset Connecting the headset to your computer using the USB cable with DAC Connect one end of the USB cable with DAC to the 3.5 mm audio port on your headset, and connect the other end to the USB port on your computer. Headset Desktop Laptop... -
Page 9: Connecting The Headset To Your Mobile Device
Connecting the headset to your mobile device Connect one end of the audio cable to the 3.5 mm audio port on your headset, and connect the other end to the headset port on your mobile device. Mobile device Headset NOTE: USB-C to 3.5 mm converter is not included. Configuring the headset Connect the headset to your computer using the audio cable and the Y-cable or the USB cable with DAC. - Page 10 2. Click the Playback tab, set the Alienware 510H as the default device. 3. Click the Recording tab, set the Alienware 510H as the default device. Setting up your headset │...
- Page 11 4. Click the Communications tab, select Do nothing. Click Apply. Setting up your headset │...
-
Page 12: Alienware Command Center
AWCC requires Windows 10 version 16299 or later. Installing AWCC through Windows Update 1. Connect your Alienware USB Cable with DAC to your computer through the USB port. The AWCC application is downloaded and installed automatically. AWCC installation may take up to 10 minutes to complete. - Page 13 2. Go to the folder where you saved the setup files. 3. Double-click the setup file and follow the on-screen instructions to install the application. NOTE: You can customize the headset feature by using the Alienware Command Center. Alienware Command Center...
-
Page 14: Using The Headset
Using the headset Adjusting the headset Adjust the ear pads to find an optimal fit for your head. When using the retractable microphone, position it approximately two centimeters away from your mouth. The earcups can be rotated to wear the headset around the neck comfortably, or for easier storage. -
Page 15: Adjusting The Volume
Adjusting the volume Use the volume control wheel on the audio cable or the volume (+/-) buttons on the USB cable with DAC to adjust the speaker volume. In the audio cable, scroll the volume control wheel up to increase the volume, or down to decrease the volume. -
Page 16: Replacing The Ear Pads
Replacing the ear pads The ear pads can be removed and replaced, if necessary. To remove the ear pads, hold the ear pads firmly and rotate counter-clockwise, and then pull the ear pads away from the headset. To replace the ear pads, fit them around the edges of the earcup firmly and rotate them into position. -
Page 17: Specifications
Specifications General Model number AW510H Supported operating Windows 10 systems Physical characteristics Weight (headset only) 370 (+/- 5) g Dimensions (headset 217.50 mm x 202 mm x 104 mm only) Washable item None (general cleaning with damp cloth) Environmental Operating temperature 5°C to 40°C (41°F to 104°F) Storage temperature -5°C to 45°C (23°F to 113°F) - Page 18 Troubleshooting Problems Possible solutions Headset has no sound • Ensure that the headset is connected to the computer using an audio cable with the Y-cable or the USB cable with DAC, or the smartphone or tablet using an audio cable. •...
- Page 19 Problems Possible solutions Unbalanced sound in the Check the computer Volume Balance is set headset correctly. - Right-click the speaker icon on the system tray in your computer. - Select Sounds and select Playback tab. - Double-click on speakers, and select the Levels tab.
- Page 20 Warranty information Limited warranty and return policies The Alienware 510H 7.1 Gaming Headset carries a 2-year limited hardware warranty. If purchased together with a Dell computer, it will follow the system warranty. For U.S. customers: This purchase and your use of this product are subject to Dell’s end user agreement, which you can find at www.dell.com/terms.
