Summary of Contents for Ohm-Labs 100 Series

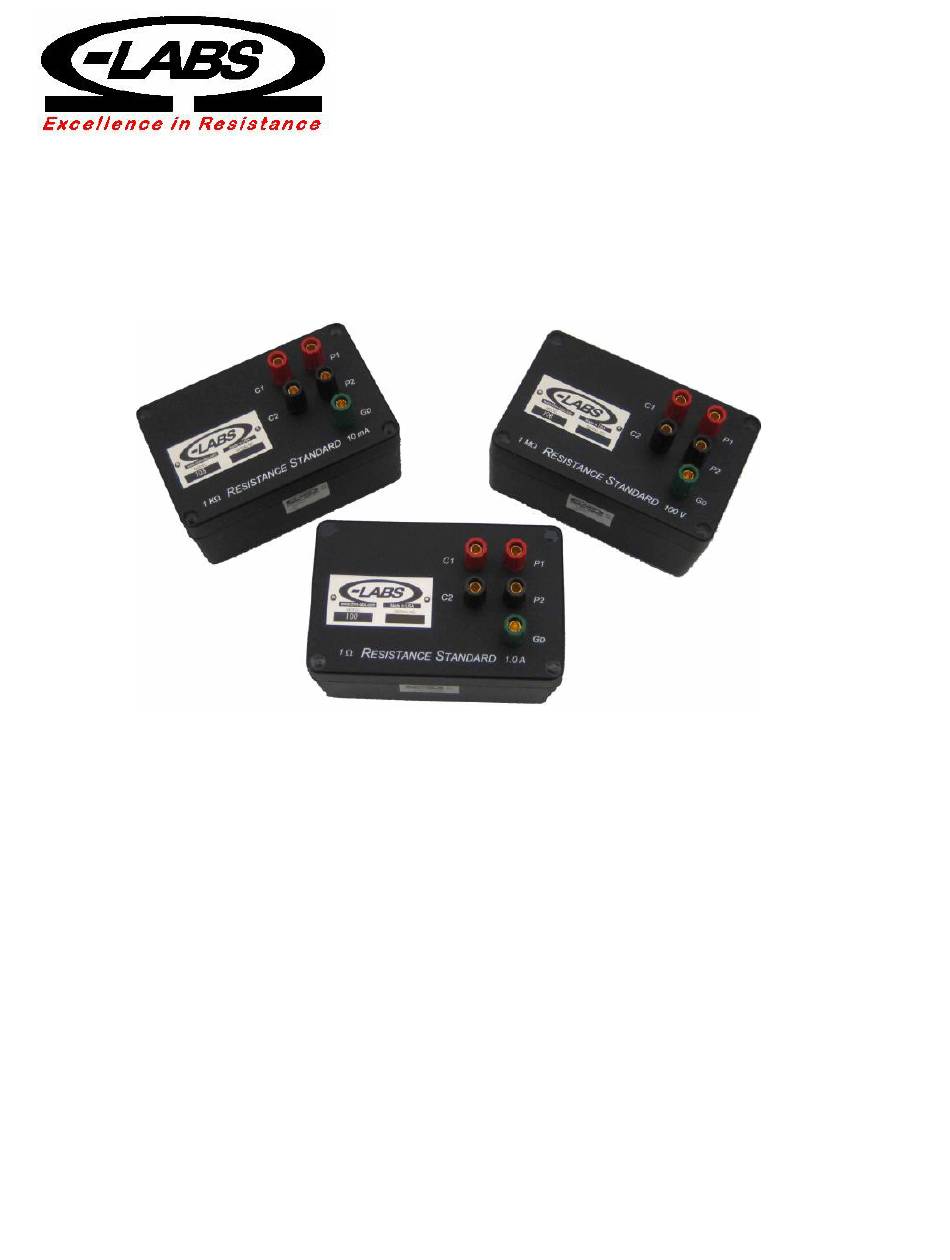

- Page 1 100-Series Resistance Standards Instruction Manual © 2006-2019 Ohm-Labs, Inc. Ohm-Labs, Inc. 611 E. Carson St. Pittsburgh, PA 15203-1021 Tel. 412-431-0640 www.ohm-labs.com...
- Page 2 Installed 10K thermistor with standard dual miniature banana jack Transit case, foam lined for protection during shipment (holds 4 standards) Environmental Limits: 0-40°C, 0-95% RH, protect from shock or excessive vibration Ohm-Labs, Inc. 611 E. Carson St. Pittsburgh, PA 15203-1021 Tel. 412-431-0640 www.ohm-labs.com...
- Page 3 Resistance at 23°C Temperature of resistor Each resistor is supplied with a table of resistance versus temperature. As a visual aid, this data is also presented in a graph. Ohm-Labs, Inc. 611 E. Carson St. Pittsburgh, PA 15203-1021 Tel. 412-431-0640 www.ohm-labs.com...
- Page 4 (or send it to another qualified laboratory) for calibration. The calibration method is comparison against a calibrated reference standard (such as Ohm-Labs’ 200- Series) using a current comparator bridge. Less accurate calibration may also be performed using Wheatstone or Kelvin type bridges, or a long scale multimeter.
