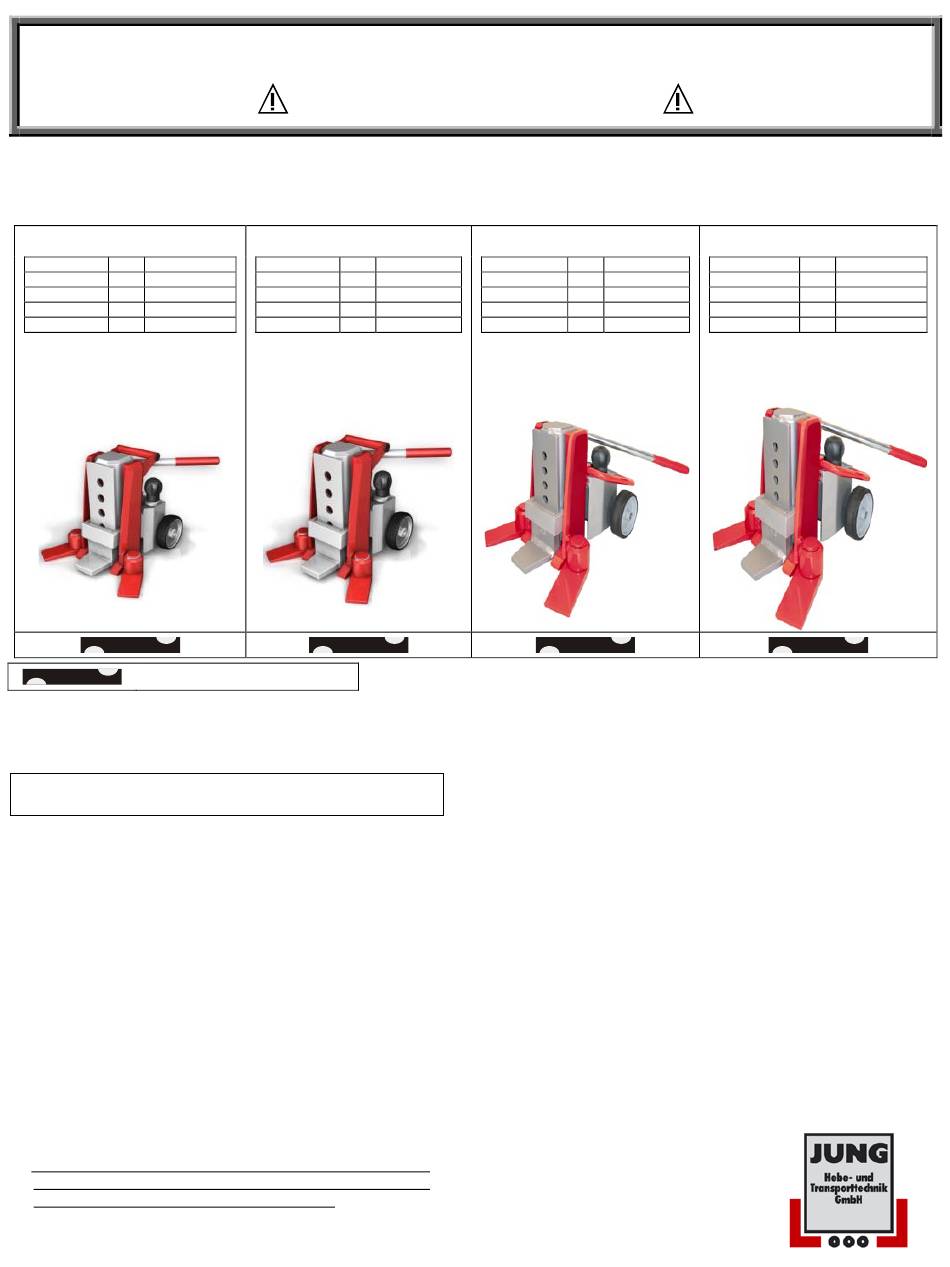

Jung JH G-plus Series Operating Instructions Manual

JH 5 G-plus
L x W x H mm 311x233x280
Weight kg 22
Capacity kg 5500
Lifting height mm 150
Workingpress. bar 520
= with slide shoe guiding
Recommended Use
These jacks are designed specifically for lifting heavy loads vertically.
They should only be used on solid level ground. Do not use on a
•
slope. The load must have a suitable strong pick-up point which will
accept the full surface of the lifting toe.
The centre of gravity must be in the under half of the load
•
Do not exceed the maximum load recommended in this document
and shown on the identification plate on the jack.
Always lower the jack slowly and carefully. Otherwise the guide of
•
the housing may be damaged due to high friction forces.
Every other use than recommended must be avoid. The
•
manufacturer or supplier is not liable for any damage resulting from
improper use of the jack. Accidences resulting from improper use
are the responsibility of the user.
These products are not designed:
For lifting and moving people or mobile devices.
•
For use in extreme environment (i.e. under hazardous, explosive,
•
flammable or corrosive conditions)
Materials and lubricants used may not meet local food and
•
agricultural industry regulations
The user should read these operating and service instructions
carefully before attempting to use the jacks. Particular attention
should be paid to the safety instructions on page 8.
Operating Instructions
Read it before commencement please
Hydraulic Jacks JH G-plus Series
JH 10 G-plus
L x W x H mm
Weight kg
Capacity kg
Lifting height mm
Workingpress. bar
JH 15 G-plus
330x247x310 L x W x H
28 Weight
10000 Capacity
160 Lifting height
520 Workingpress.
JH 20 G-plus
mm 415x300x310 L x W x H
kg 44 Weight
kg 15000 Capacity
mm 180 Lifting height
bar 520 Workingpress.
mm 435x330x340
kg 58
kg 20000
mm 190
bar 520
