Lowel Fren-L 650 Instructions

General Warnings

The Lowel Fren-L 650 TM is a profes-
sional lighting system. Read these
instructions and lamp manufactur-
ers' warnings before operating.
■ Make certain that lamp voltage
matches power voltage (example: both
must be 120v or both 220v).
■ Units such as these emit
considerable light and heat. Touch only
relatively cool parts such as handle and
knobs or use thermal gloves.
■ Avoid placing unit too close
to people or to delicate objects, materials
or art, especially in spot setting.
■ Do not use closer than 3 feet
from subject.
■ The lens will absorb much of the
ultraviolet (UV) emission. Ultraviolet light
ray emissions can cause damage to the
eyes and reddening of the skin.
The likelihood of either occurring is
increased with length of exposure, focus
intensity and proximity. Caution must be
used if the fixture is operated for long
periods of time or excessively close to
people' s faces. Bounce illumination also
eliminates this problem.

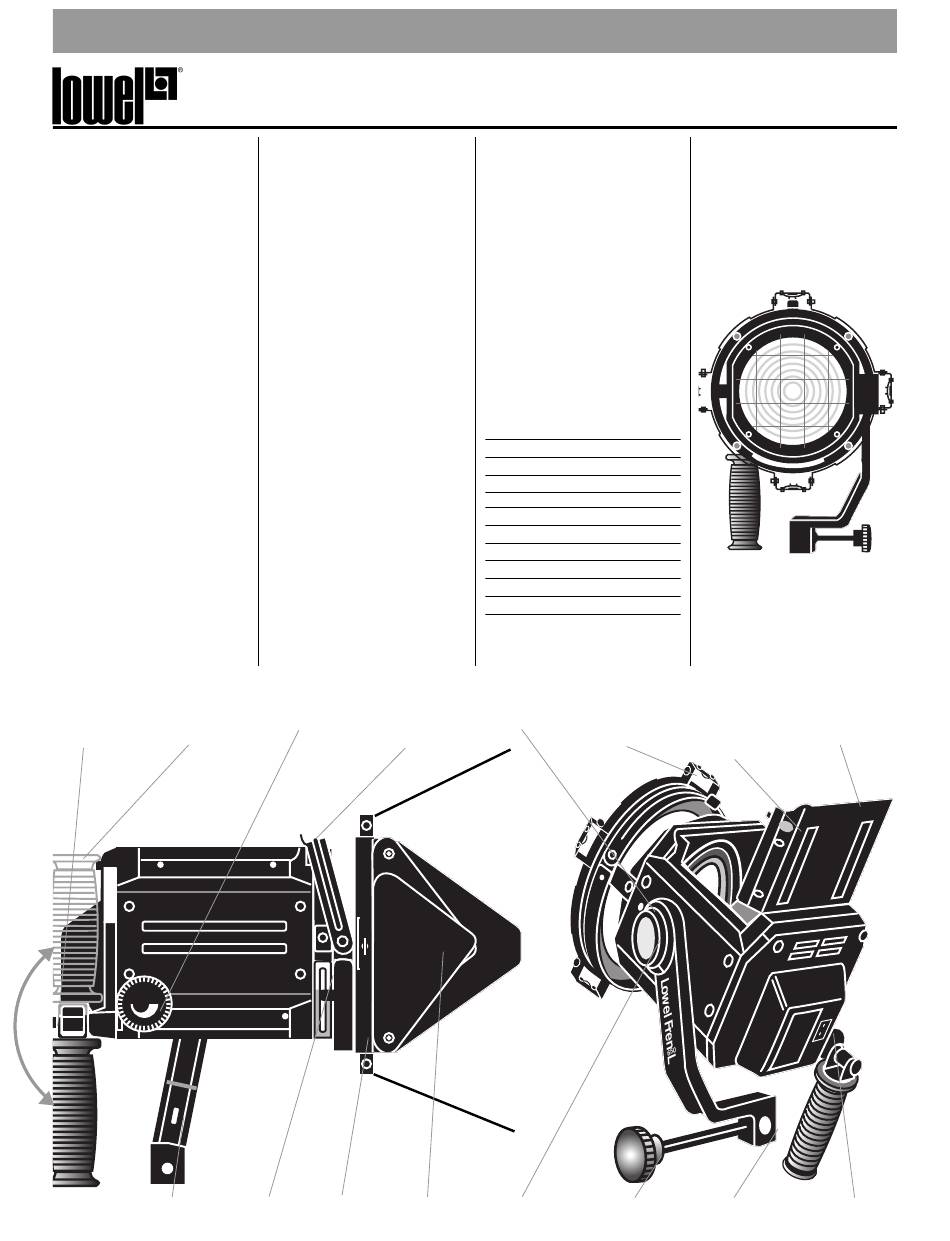

Nut to adjust Pan/Tilt Handle up
Handle tension for storage
Handle in basic Slot for safety
operational position chain
General Warnings continued
■ Do not interfere with the unit's
ventilation by covering it in any way.
■ Avoid aiming the light at,
or placing it close to flammable materials.
Do not use near standing water or in
damp locations.
■ Not for household use,
use only for photographic lighting (film;
video; imaging) purposes.
Lamp Insertion & Removal
Caution: Always unplug the
fixture before relamping.
Move the lamp carriage to the back of
the Fren-L (spot setting) using the Focus
Knob. It is helpful if the fixture is in a
horizontal position and the Yoke is not
above the fixture. Press the small button
on the left front of the top panel and
swing the panel up.
INSERTION: Grasp the edges of the
lamp' s porcelain base with a soft, clean
material (to prevent oil from your hands
damaging the lamp "glass"). Make sure
the two polarized (different sized) lamp
pins match the socket holes and that the
porcelain base is centered in the socket
springs. Press down firmly on the base
until the lamp is fully seated.
Focus Knob Half-ring opens
to accept Scrims
Lever to pop Barndoor Frame Triangular Barndoor
up Scrims Panel
Lowel Fren-L 650
Warnings/Basic Operations
CAUTION: Partially seated lamps can
operate but the socket will eventually
be damaged and the beam will not be
optimum. It can cause arcing and pitting
of both the socket and lamp pins.
Removal: Wait for lamp to cool or use
a suitable, thermal glove. Grasp the
edges of the lamp' s porcelain base with
a soft, clean material and wiggle it
slightly while pulling straight out.
Never pull on the lamp envelope.
Lamps
(Voltages and Wattages)
Lamp voltage must match power voltage.
Ansi Lamp Avg
Code Code Volts Watts Life
FKW CP81 120 300 150 hr
FRG CP82 120 500 150 hr
FRK CP89 120 650 150 hr
FSL CP81 220/30 300 150 hr
FSK CP81 240/50 300 150 hr
FRH CP82 220 500 150 hr
FRJ CP82 240 500 150 hr
FRL CP89 220 650 150 hr
FRM CP89 240 650 150 hr
All lamps above are 3200 K
Slot for Gel-Brella Pivots for
bracket Barndoor Panels
Lift for Tension Pan Lock Knob
Adjustment
TM Instructions

Protective Screen

The Fren-L is supplied with a Protective
Screen. In the event of lens breakage
it will restrain most of the glass.
Cause of breakage: It is possible for
the lens to break if chipped, or if the lamp
is powered when the lens is exceptionally
cold. Do not use with cracked lens.
Safety catch to Open for lamp
open lid for lamp access
access
5/8" bottom and Electrical connector
offset holes
