Summary of Contents for Garlando TOORX Stepper compact

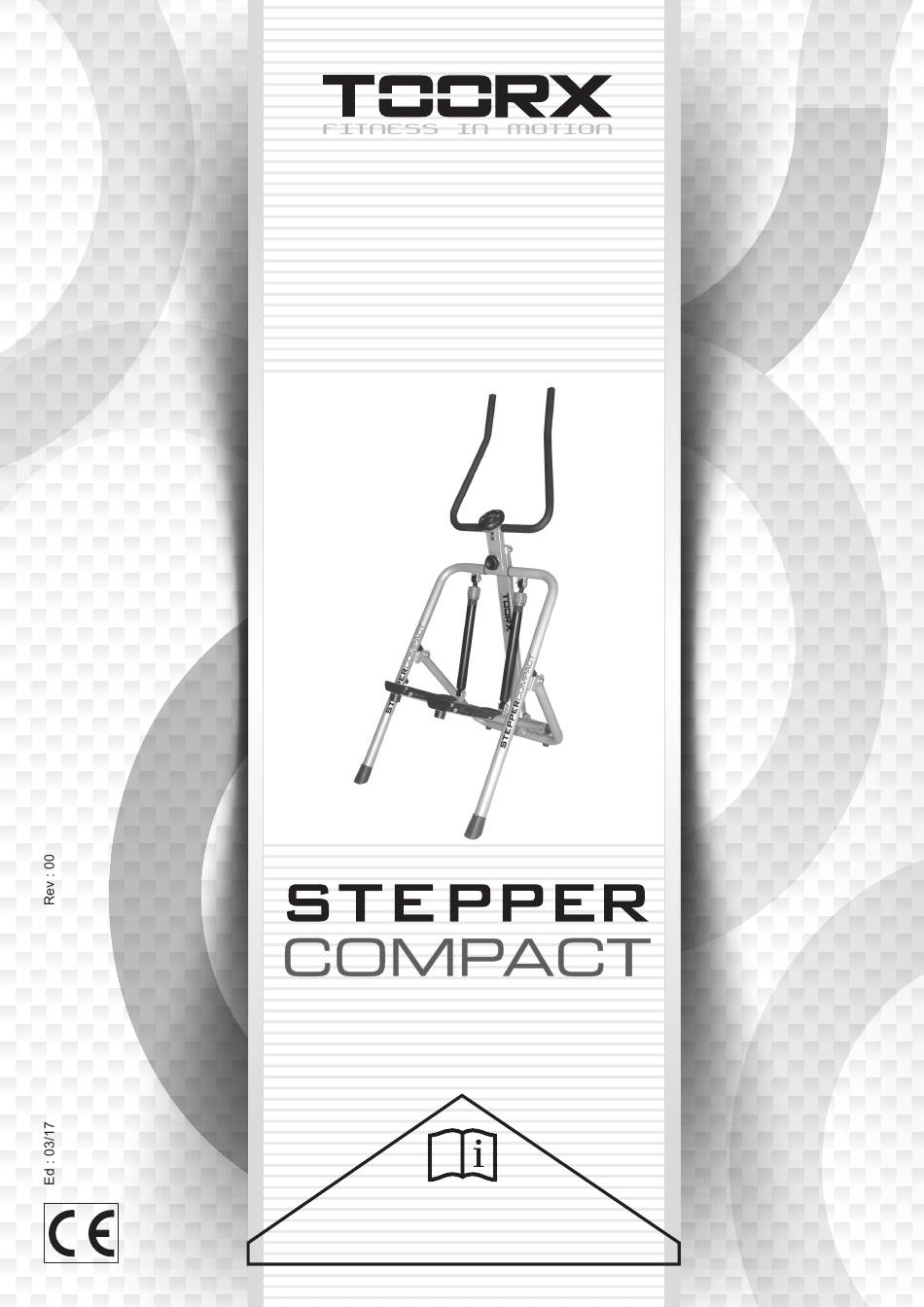

- Page 1 INSTRUCTION...
- Page 2 PRODUCT PARTS DRAWING...
- Page 3 DIAGRAM# PART NAME BASE FRAME UPRIGHT SUPPORT HANDLEBAR LEFT LEG RIGHT LEG LEFT PEDAL ARM RIGHT PEDAL ARM PEDAL ARM BUSHING SECURING CAP PEDAL PEDAL BUMPER SHOCK LEG SPACER FRAME BUMPERS STAND CAP(38mm) SUPPORT BLOCK FRONT FRAME BUSHING UPRIGHT BUSHING FRONT STAND TRANSPORT WHEEL HANDLEBAR BUSHING...
-
Page 4: Assembly Instructions
WASHER (M8) WASHER (M10) NYLOCK NUT (M8 x 1.25) NYLOCK NUT (M10 x 1.5) LARGE WASHER SPRING WASHER ARC WASHER(M6) GROMMET PLUG MAGNET SENSOR WIRE SCREW (M3 x 15) BRACKET SCREW,ROUND HEAD( M5 x0.8x15mm) ASSEMBLY INSTRUCTIONS STEP 1 : Raise the STEPPER to an upright position and unfold the STEPPER as Shown above. - Page 5 ROUND HEAD SCREWS (M5x15MM)(47) STEP 4. Install an “AA” battery into the METER(25), one battery included. See page 6 for detailed battery installation instructions. Slide the METER(25) onto the BRACKET(46). Make sure the SENSOR WIRE(44) is located at the front of the handlebar (3),then plug the sensor wire (23) into the meter(25).
- Page 6 POWER ON : Pedal movement or push any button. Automatic shut off after 4 minutes POWER OFF : of inactivity. FUNCTION BUTTONS: MODE : Push to select the function of the lower readout. RESET : To reset all functions to zero. USING THE ELEVTRONIC METER FUNCTIONS: Automatically scans each function of TIME, CALORIE, STRIDES/MIN in sequence...
- Page 7 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
