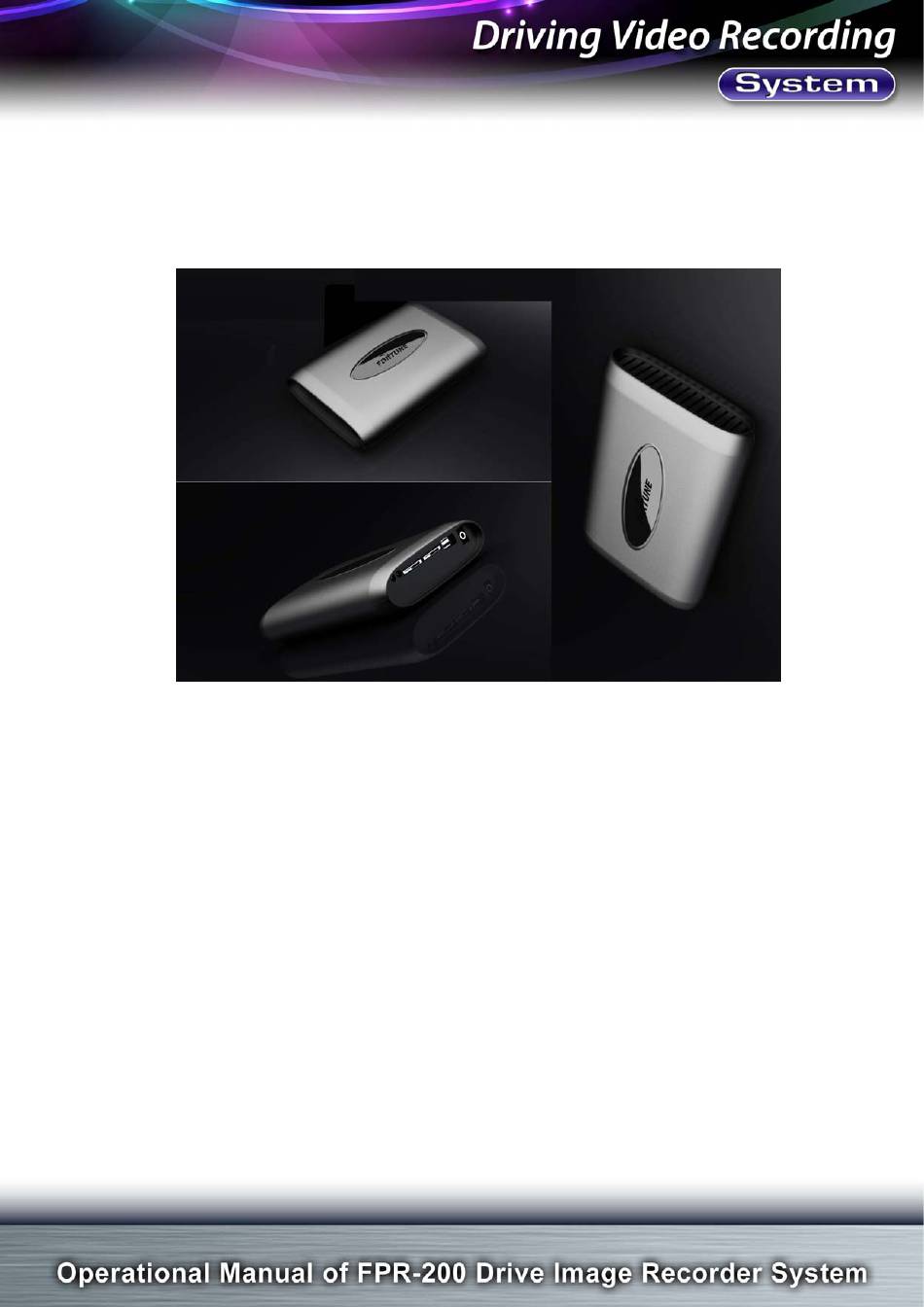

Operational Manual of FPR-200 Drive Image Recorder System

FPR-200－A Must for Driving,

Faithfully recording your driving journey in image

Secure your rights & interests, Protect your safety around vehicle

Balance safety and leisure, View clearly day and night

～ Love Your Car, Love yourself

With FPR-200 Traveler～

Table of Contents

Need help?

Do you have a question about the FPR-200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fortune FPR-200

Page 1 Operational Manual of FPR-200 Drive Image Recorder System FPR-200－A Must for Driving, Faithfully recording your driving journey in image Secure your rights & interests, Protect your safety around vehicle Balance safety and leisure, View clearly day and night ～ Love Your Car, Love yourself...
Page 2 9. Monitor Operation Instruction 9.1 Monitor Operation 9.1.1 Main Menu 9.1.2 Operational Instruction of Main Menu of Monitor 9.1.3 Operational Message of SD Card in monitor 9.2 Operation of FPR-200 Player 9.2.1 Player Screen 9.2.2 Player Functions Description 9.2.3 Operational Procedures of Player 9.2..4 Browsing the Files 9.2.5 Four-Split Screen 9.2.6 Copy Dialogue Screen...
Page 3: Brief Introduction
1. Brief Introduction FPR-200 Drive Image Recorder is used to completely record true state of driving in real-time, including image, sound, date, time and location. In case accidents take place, you can rapidly find images of accidents by using the remote control to play the recording on the screen.
Page 4 3. Appearance and Functions of Car Video Recorder. 3.1 Top View Item No. Product Name Description Ventilator For Cooling the electronic board 3.2 Bottom View Item No. Product Name Description Ventilator For Cooling the electronic board Page Total 18 Pages FPR-200...
Page 5: Left Side
Product Name Marking Description Power When it lights on, it means that the power has been Power Indicator Lamp transmitted into the Main Device. Infrared Receiving It receives signal from the remote control. Window Window Page Total 18 Pages FPR-200...
Page 6: Front / Rear View
Vent for playing the recorded sound Video and Audio Socket is Socket for video and audio Input named for AV-IN Control Socket is named for Receive infrared signals from controller CONTROL Power Input Socket 12V power input named for DC-IN Page Total 18 Pages FPR-200...
Page 7 3.8 Appearance and Functions of Front and Back Lens Item No. Marking Description It is easy for inserting lens into the drilled holes which Locking Thread are located in the front and back bumpers. Lens Casing Streamlined metal Casing. Rigid and durable. Page Total 18 Pages FPR-200...
Page 8 Combination Description Marking Marking FPL-01 GPS Antenna FPR-200 Device→ GPS antenna GPS ANT Back Len FPR-200 Device→ Back Len in vehicle FPL-02 L&B Video Left Len FPR-200 Device→ Left Len in vehicle Front Len FPR-200 Device→ Front Len in vehicle FPL-03 R&F Video...
Page 9: Wiring Diagram
800x480 p. Shown Video Broadcasting NTSC(720X480P)/PAL(768X576p) Standard Shown Video Signal Pattern Composite Video Recorded Video Resolution 720x480p Recorded Video Format ITU-R BT.656 Video Compression Format H-264 Sound Format Video Signal Pattern Composite Video Page Total 18 Pages FPR-200...
Page 10 GPS and System Time doesn’t work, manual setting will be allowed. IR Remote Control 18 Keys Approximate 182 mm(Length)x 112 mm (width)x38 mm FPR-200 Dimension (Height ) FPR-200 Weight Approximate 200 g. Right: Reset, IR Receiver, SD Connection Port and key Left: GPS Ant., B&L Video, AV Input, Car I/F, Power Input,...
Page 11: Installation Steps
Take out the Main Device from package box. According to this manual, item 4.2 wire marking and 3.3, 3.4, 3.6 diagram number, insert plugs into FPR-200 Main Device sockets separately. Insert SD card into SD card slot in right side of the Main Device.
Page 12 FPR-200 Main Device →vehicle mat →trunk → backward lamp FPL-07 FPR-200 Main Device →vehicle mat →trunk → car Power Power Green Wires...
Page 13 No. 2, No. 4, No. 6, No. 8 and No. 5 switch video keys are used No.2, 4, 6, 8 to switch video into front video, left video, right video, rear video and No.5 Key and four fold splitting videos. Page Total 18 Pages FPR-200...
Page 14 When GPS is operated, the system time cannot be adjusted. Only Set Date and daylight saving time can be adjusted. When GPS is off, system Time time can be set. Press to confirm. Then Press to exit. Page Total 18 Pages FPR-200...
Page 15 Signals 1. SD is not used. 2. If SD is not functional or could not 1. SD card pops be stored, FPR-200 would send No SD warning message to remind the 2. SD can’t be users to try again. If it still can’t be written or read.
Page 16: Player Screen
XP system. Initial installation access is C: \FPR-200. User can change it if they prefer to store to other place. After installation is finished, click “Player.exe” file. If the screen is shown up picture as below, it means you may have entered FPR-200 player operation.
Page 17 9.2.3 Operational Procedures of Player FPR-200 player in FPR-200 folder are implemented. Video files and picture files recorded in SD card of FPR-200 recorder will be played. Suppose SD device is placed in F: \, operation procedures are illustrated as below table:...
Page 18 9.2.4 Browsing Files Screen 9.2.5 Four-Split Screen 9.2.6 Copy Dialogue Screen 9.2.7 Delete Dialogue Screen 9.2.8 Snapshot Dialogue Screen Page Total 18 Pages FPR-200...
Page 19: Software Upgrade
When the screen appears percentage gradually increasing from 0% to 100% which means installation is finished. FPR-200 will automatically restart. If system is using the same version as Mobile.kit of SD card, “SAME SOFTWARE VERSION, STILL INSTALL?” would be shown on the screen.
Page 20: Usual Maintenance
Item Item Description FPR-200 Main Device is NOT waterproof. Spare parts inside of Keep Dry this product could be seriously damaged if it is sprayed or soaked by water and leading to non-repairable damages.
