Summary of Contents for Teqball One
- Page 1 indoor / outdoor INSTALLATION GUIDE...
-
Page 2: Safety Notice
3. IMPORTANT: Move the Teqball One table carefully. It always should be carried by at least two adult people lifting it. Never push or pull the Teqball One table on the floor as it can cause damage to its parts. -
Page 3: Installation Conditions

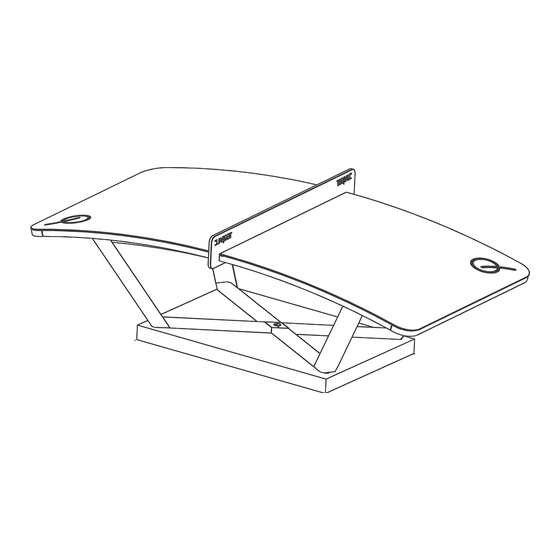

INSTALLATION CONDITIONS The recommended size of the Teqball court is 10 m long, 8 m wide and 4 m high. The Teqball One table is positioned symmetrically in the middle of this 10 m x 8 m rectangular area. If the Teqball One table is located outdoors, a 1,5 m x 1 m x minimum 0,1 m deep concrete or asphalt base is required. -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS Drill 2 pcs of 15 mm diameter deep hole with the rotary hammer 102 mm far from each other in the middle of the designated area. 102mm min.1m min.1,5 m ø 15 mm Strike the anchors into the holes with a hammer so that the top of the anchors are flush with the surface of the concrete. - Page 5 HSD-M M12x50 setting tool to widen the bottom of the anchors. Remove the covering cap from the leg structure of the Teqball One table, then lift the table and move to position the table’s bores above the holes. Position the table right over the holes and then screw in the galvanized hexagon screws.
- Page 6 Put the covering cap back to its proper place. Before using the table, please check if the table is fix and cannot be moved from the installation area.
- Page 7 ENJOY TEQSPORTS! 1101-090-003B...
- Page 8 Further information www.teqball.com info@teqball.com...
