Summary of Contents for Shenzhen MobileX Technology MX8880

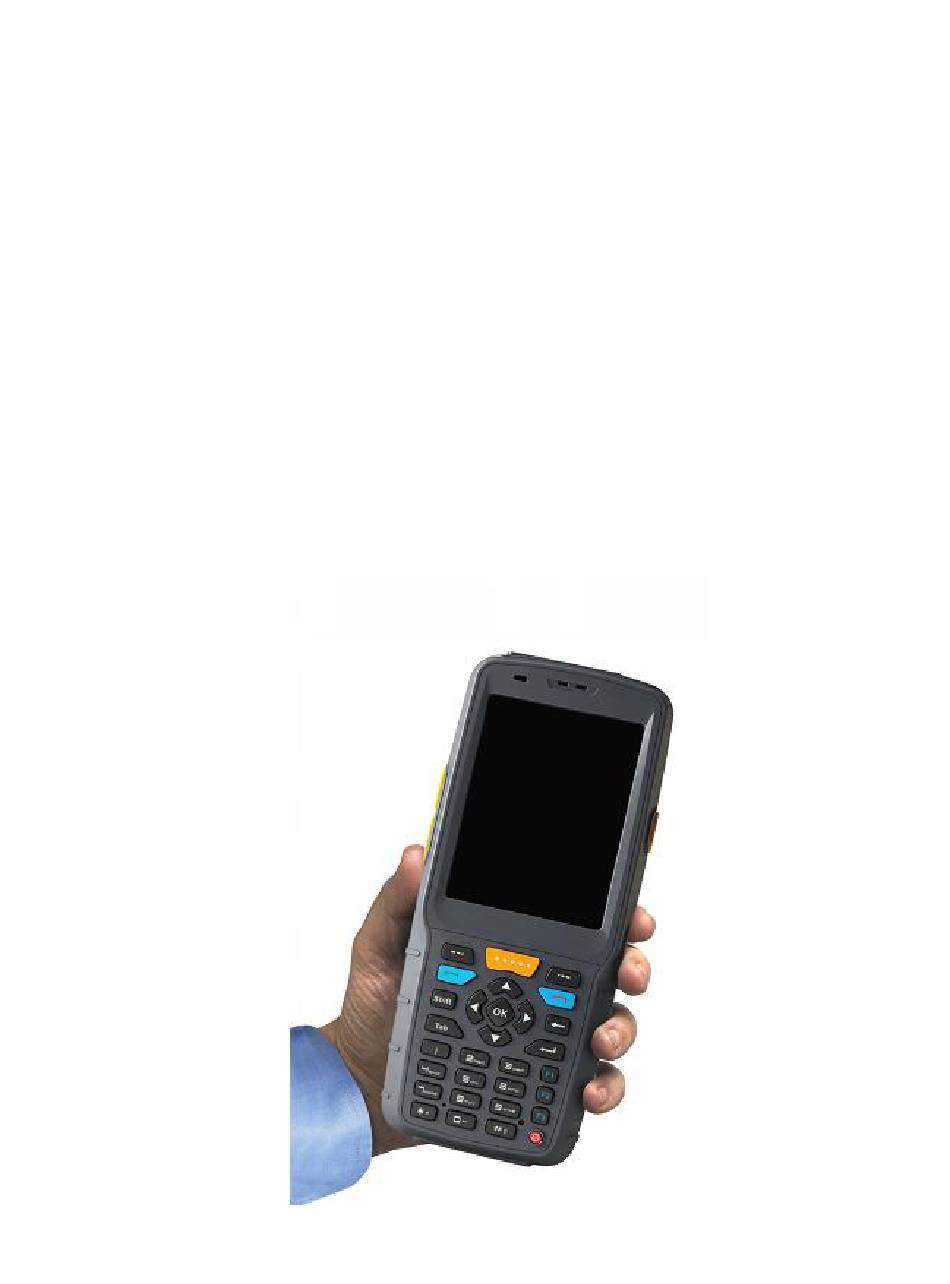

- Page 1 MX8880 Data Acquisition Device Quick Start Guide Windows mobile 6.1...
- Page 2 MX8880 Spec Hardware Marvell PXA310 624MHz Memory 512M FLASH， 256M SDRAM Windows Mobile6.1 Professional Wire Transmission USB 2.0 Display: Display 3.5” VGA LCD Resolution 480×640 Touch screen type Resistive Camera: Megapixel Focus Auto-Focus 5cm～30cm Scan Distance Identification No less than 13Lx when no fill light, and Brightness can identifiable in 0.3Lx with fill light...
-
Page 3: Appearance And Keypad
1. Appearance and Keypad 2. Volume up 4. Barcode 1D/2D 5. UHF RFID Volume down scanner window identification 1. VGA Transflective LCD with Touch 3. Stylus 6. 5M AF camera Screen 7. USB Port 9. Function key (user-defined) 8. Reset button 10. -
Page 4: Main Screen
2. Main Screen There are some important information on “Today” screen, upcoming appointment and unread messages, for example Signal Strength Volume Start Menu Indicator Connection Charger Status Battery Lever Date & Time Clock Setting Wireless Manager Owner Information Device Lock... - Page 5 Icons in the status bar and “Today” screen Icon Icon Meaning Meaning Signal Strength Phone off Battery level Low battery alert Charging Talking Volume Mute Call on Hold Call Forward Data synchronization Edge icon Unread message Data transferring Vibration mode Sync error...
- Page 6 Then you can find the apps. For example: the camera, File Explorer, Windows Media and so on. 3.2 File Explorer You can manage files in the MX8880. However, it’s recommended not to modify or delete system files. Options are available to change the displaying mode and system operation.
- Page 7 In System, you can setting functions. Connections: Setup connection your device. 3.4 Scan Settings MX8880 equipped with 1D/2D barcode reader. You can set one key scan barcode in system settings. Then open excel mobile or word mobile, press the key you set for...
- Page 8 3.5 RFID UHF Reader Test To test the RFID UHF module, click “Start”, “Settings” and open the Demo application, which is file name “AS3992demo”. After open it, select the serial port as label “com3”, click “open” to start read the RFID UHF Gen 2 tag´s.
- Page 9 4. Special function declare This terminal reserved various interface and flexible structure designed to ensure that its can meet various function customization demand. Can support RS232, the I2C, RS485 interface peripherals, can expand loading other function module, pls contact with the factory for your special requirement.
