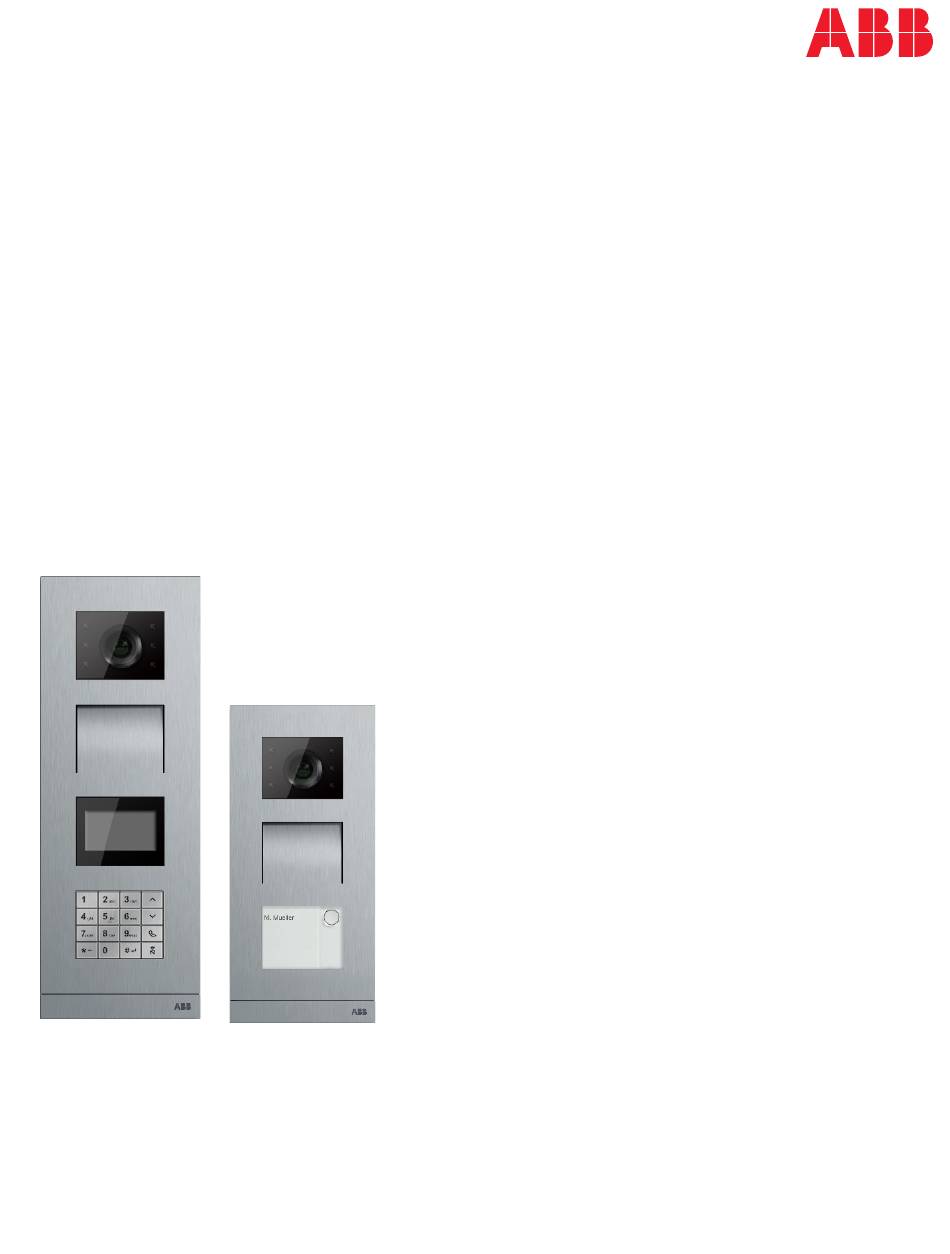

- Page 1 Pos: 2 /DinA4 - Anl eitun gen Online /Inh alt/KNX/Doo rEntry /832 20-AP- xxx/Tit elblat t - 832 20-AP-xxx - ABB @ 1 9\m od_ 132 3249 806 476 _15. docx @ 11 108 4 @ @ 1 — VER: 1.3 | 02.20.2017 ABB Welcome ®...
- Page 2 Module family Audio module Audio module Audio module Camera module Nameplate module 1/2 button 2/4 button Round pushbutton Round pushbutton Round pushbutton Pushbutton Pushbutton 1 button 2 button 3 button 4/8 button 3/6 button Keypad (3 versions) Round pushbutton Round pushbutton Round pushbutton Display with ID Stainless steel...
-
Page 3: Table Of Contents
® ABB Welcome Safety....................... 5 Intended use .................... 5 Environment ..................... 5 ABB devices ................5 Terminal description ................. 6 Audio module ................6 4.1.1 Lock connected with terminals 3 and 4 ........12 Camera module ...............13 4.2.1 Analog camera connected with terminal 1.........14 4.2.2... - Page 4 ® ABB Welcome — 4 —...
-
Page 5: Safety
Intended use The outdoor station is an integral part of the ABB Welcome door entry system and operates exclusively with components from this system. The device must only be used with suitable ABB flush-mounted installation sockets and rain hood. -
Page 6: Terminal Description
® ABB Welcome Terminal description Audio module Function LED flashes slowly, indicating a call has been established LED flashes fast, indicating that the system is busy LED illuminates, indicating possible communication LED illuminates, indicating the door is unlocked Call pushbuttons... - Page 7 ® ABB Welcome Functions Connector for camera module Connector for device software update Plug-in clamps (COM-NC-NO) for floating output, door opener (30 V AC/DC, 1 A) Plug-in clamps (Lock-GND) for door opener (18 V 4 A, 12 V 250 mA)
- Page 8 ® ABB Welcome *Default lock (first lock): Released by “unlock” button of the indoor station. Factory setting is LOCK-GND. — 8 —...
- Page 9 ® ABB Welcome Second lock: Released by programmable button “1” of the indoor station. Factory setting is COM-NC-NO. — 9 —...
- Page 10 ® ABB Welcome Change default lock Default lock can be set at either "Lock-GND" or "NO-NC-COM" Set outdoor station address ="0" Short circuit the "Exit" two terminals for 3 seconds to enter the setting mode (3 LED flashes green to show the setting mode for aluminum outdoor station) (prompt tone “di”...
- Page 11 ® ABB Welcome Set the lock time of the default lock Set the time by the potentiometer, from 1-10 seconds Set the lock time of the second lock Set outdoor station address ="0" Short circuit the “DS” two terminals for 3 seconds to enter the...
-
Page 12: Lock Connected With Terminals 3 And 4
® ABB Welcome 4.1.1 Lock connected with terminals 3 and 4 — 12 —... -
Page 13: Camera Module
® ABB Welcome Camera module Functions Connector for additional analog camera Connector for audio module Jumper for setting the video format: PAL or NTSC Adjust the camera view area — 13 —... -
Page 14: Analog Camera Connected With Terminal 1
® ABB Welcome 4.2.1 Analog camera connected with terminal 1 All the cameras with the video output of 1Vp-p 75Ω,CVBS (composite video broadcast signal) can be connected with the camera module. Generally, the transmission distance from the analog camera to the outdoor station can reach up to 164 ft. by coax cables or about 33 ft. by other types of cables. -
Page 15: Detached Camera Connection
® ABB Welcome 4.2.2 Detached camera connection Camera module can be used as a detached camera. Wiring is shown below. 3 pairs 2-wire bus together Max:10 metres — 15 —... -
Page 16: Round Pushbutton Module
® ABB Welcome Round pushbutton module Functions Program button Connector for previous module Connector for device software update Connector for Wiegand output Default format is 26 bits; it can also be extended to 34 bits. Connector for next module — 16 —... - Page 17 Lighting switch and call guard unit function is always assigned to the first and second button, which is set by audio module. User names can be printed by using the labeling tool of the ABB Welcome configuration software. The round pushbutton module with NFC/IC card reader supports the NFC/IC card.
-
Page 18: Pushbutton Module
® ABB Welcome Pushbutton module Functions Connector for previous module Connector for next module — 18 —... - Page 19 (in the double column mode). Lighting switch and call guard unit function is always assigned to the first and second button. User names can be printed by the using the labeling tool of the ABB Welcome configuration software. — 19 —...
-
Page 20: Keypad Module
® ABB Welcome Keypad module Functions Program button Connector for previous module Connector for device software update USB connector for connection to a PC: Download/upload the configuration. Connector for next module — 20 —... - Page 21 ® ABB Welcome Functions Call resident A visitor inputs an indoor station number (001) or apartment number (e.g., 0101, programmed in advance) to call a resident. *Also, the visitor can select a resident name with the buttons of the accompanying display module to make a call.
-
Page 22: Display And Card Reader Module
® ABB Welcome Display and card reader module Functions Program button Connector for previous module Connector for device software update Connector for Wiegand output USB connector for connecting to a PC: Download/upload the configuration. Connector for the next module — 22 —... - Page 23 ® ABB Welcome Functions LCD display Support ID or IC card. Swipe the registered card to release the door lock. The card can be programmed through the module itself, or by using a PC to download the program file. (M251021CR is accompanied by an ID card reader, while the M251022CR is accompanied by an IC card reader.)
- Page 24 ® ABB Welcome Technical specifications M251021CR: Display module with ID card reader Work 125 kHz frequency Standard ISO18000-2 Support EM4100, EM4205, EM4305, EM4450, TK4100, T5567 card Output Wiegand, 26-bit, 34-bit format M251022CR: Display module with IC card reader Work 13.56 MHz...
-
Page 25: Nameplate Module
® ABB Welcome Nameplate module Functions Connector for previous module Connector for next module Labeling of the nameplate module can be printed by using the labeling tool of the ABB Welcome configuration software. — 25 —... -
Page 26: Operation
® ABB Welcome Operation Pushbutton outdoor station 5.1.1 Addressing Configure functions of the first and second pushbuttons Functions 3->OFF, 4->OFF Call apartment 01. Call apartment 02. Call apartment 03. — 26 —... - Page 27 ® ABB Welcome Functions 3->ON, 4->OFF Switch on light. The light is connected with a switch actuator. The address of the switch actuator must be the same as the address of this outdoor station. Call apartment 01. Call apartment 02.
- Page 28 ® ABB Welcome Guard unit Functions 3->OFF, 4->ON Call the guard unit. If there are multiple guard units in the same section, all guard units will ring at the same time when a visitor presses the button “call guard unit.”...
- Page 29 ® ABB Welcome Functions 2->OFF Call apartment 01. Call apartment 02. Call apartment 03. Call apartment 04. — 29 —...
- Page 30 ® ABB Welcome Functions 2->ON Call apartment 01. Call apartment 02. Call apartment 03. Call apartment 04. Call apartment 05. Call apartment 06. Call apartment 07. Call apartment 08. — 30 —...
- Page 31 ® ABB Welcome Guard unit Functions 2->ON, 3->ON, 4->ON Switch on lights. Call the guard unit. Call apartment 01. Call apartment 02. Call apartment 03. Call apartment 04. Call apartment 05. Call apartment 06. — 31 —...
-
Page 32: Setting The Language For The Voice Messages (If The Audio Module Has A Speech Synthesis Function)
® ABB Welcome 5.1.2 Setting the language for voice messages (if the audio module has a speech synthesis function) For the audio module with a speech synthesis function (M251024A-.), the local language can be set. Set outdoor station address as “0” and hold the first button for 3 seconds to play the voice message. - Page 33 ® ABB Welcome Pushbutton outdoor station used as gate station If pushbutton outdoor station is set as a gate station, a gateway must be used, and it must be configured in floor gateway mode. Apartment 01 A Apartment 02 B...
-
Page 34: Pushbutton Outdoor Station With Display Module
® ABB Welcome Pushbutton outdoor station with display module The display and card reader module can be assembled with a pushbutton outdoor station. The user can swipe cards to open the door. For this combination, a master card is needed for an electrician to manage this outdoor station. - Page 35 ® ABB Welcome After 5 seconds of elapsed Swipe the master card, Swipe the master time, the current option will enter the setting card be chosen Proximity Card Menu_________ √ Menu_________05 Register Card--- ∧ == ＞ == ＞ Program Card--- ∧...
-
Page 36: Pushbutton Outdoor Station With Keypad Module
® ABB Welcome Pushbutton outdoor station with keypad module The keypad module can be assembled with a pushbutton outdoor station, and users can enter the password to open the door. Users can enter the system settings menu by using the following steps. - Page 37 ® ABB Welcome *Reset the system password of the keypad module: It is possible to reset the system password to the factory setting if you have forgotten it. The restoration of default factory settings does not delete the rest of the information programmed on the system, such as user names or other settings.
-
Page 38: Round Pushbutton Outdoor Station With Ic/Nfc
® ABB Welcome Round pushbutton outdoor station with IC or NFC Enroll the cards For the round pushbutton module with NFC or IC card reader, cards can be enrolled or deleted. A maximum of 500 cards can be supported. Programming... - Page 39 ® ABB Welcome Reset to factory default Function Command Disconnect the power supply. —— Reconnect the power supply. White Reset to factory Within 60 seconds, long-press the Red, green, default “program” button for 5 seconds. orange cycle Finish reset. ——...
- Page 40 ® ABB Welcome Set the Wiegand format 1. Swipe admin card to enter system setting. (Orange LED is on.) 2. Short press first button to change the Wiegand format to 26-bit or 34-bit. (Default is 26-bit.) The different format is indicated by the LED and sound feedback.
- Page 41 (requires IP Gateway 83342-500). Additional devices are not required for commissioning. Access the Google Play store (https://play.google.com/store/apps/details?id=com.abb.allegro3_nfcdooropener&hl=en) 1. Download and install the ABB Door Opener App from Google Play Store. 2. Turn on the NFC function of your device. 3. Enter the setting mode of your round pushbutton module.
-
Page 42: Keypad Outdoor Station
® ABB Welcome Keypad outdoor station 5.5.1 Call a resident (three types) Physical address The physical address is the internal code that the outdoor station will send through the bus connection to indoor stations or other devices in the system. For each apartment, the physical address means the address of an indoor station that is installed in the apartment. - Page 43 ® ABB Welcome Physical Add.: Logical Add.: 0101 Turn on the “Logical address” call mode #* system password # => system setting => Configurations => Call Mode Call Mode_______ No. of digit: Physical Add. ∧ == ＞ Logical Add.-------- (1-8 Digits) ∨...
-
Page 44: Call The Guard Unit
® ABB Welcome 5.5.2 Call the guard unit Press the button to make a call to a guard unit. Accept the call 30 s 120 s == ＞ Guard Unit Guard Unit “*“ to Cancel “*“ to Cancel 5.5.3 If an indoor station is in “leave home mode”... -
Page 45: If A Guard Unit Is In "Intercept Mode
® ABB Welcome 5.5.4 If a guard unit is in "intercept mode" If a guard unit I set in “intercept mode,” a call from an outdoor station to an indoor station will be intercepted by the guard unit. Once the caller’s identity has been confirmed, the guard unit can forward the call to the indoor station. -
Page 46: System Settings
® ABB Welcome 5.5.5 System settings In settings, press “#” to confirm and “*” to cancel. The default system password is 345678. Enter the system settings menu #* system password # Menu__________ Configurations-- ∧ Access Control Contact ∨ Configurations (1) Set the device as an outdoor station or a gate station. - Page 47 ® ABB Welcome Set the call mode by a Logical Code (1-8 digits). #* system password # => Configurations # => Call mode # => Logical Code # Call Mode_______ Physical Add. ∧ Logical Add.: ●- ∨ (3) System password setting Modify the system password #* system password # =>...
- Page 48 ® ABB Welcome Access control (1) Door open code The password can be set using 3-8 digits. The default door open password is "123456” and it can be changed at an outdoor station. Users can set their own passwords at the indoor stations. A total of 6,000 passwords can be stored.
- Page 49 ® ABB Welcome (2) Proximity card (3,000 cards can be registered for outdoor station.) Register cards: #* system password # => Access control # => Proximity card # => Register card # Enter Card No.: Enter Card No.: == ＞...
- Page 50 ® ABB Welcome Add the contact by logical address #* system password # => Contact # => Add # => Logic add. # Physical Add.: Logical Add.: 0101 Logical address must be associated with a physical address. (2) Modify Modify contact by user names #* system password # =>...
- Page 51 ® ABB Welcome Delete the contact by logical address #* system password # => Contact # => Delete # => Logic add. # Enter Logical Add.: 0101 (4) Clear all #* system password # => Contact # => Clear all # Delete All Names? == ＞...
- Page 52 ® ABB Welcome System setting (1) Date and time #* system password # => Settings # => Date & time # => Enter time and date => # 2016-01-01 07:00 == ＞ Done! “#” to Confirm (2) Door open time for second lock #* system password # =>...
- Page 53 ® ABB Welcome (4) Select language #* system password # => Settings # => Language # Language_______ English -- ∧ ● Français Italiano ∨ (5) Welcome Message #* system password # => Settings # => Welcome Msg. # New Message: == ＞...
- Page 54 ® ABB Welcome (8) Reset #* system password # => Settings # => Reset # => # Reset to Factory Default? == ＞ Done! “#” to Confirm “*” to Cancel Reset all settings to factory settings, but other information, e.g., user names, logical addresses and card information, will not be reset.
- Page 55 ® ABB Welcome *Reset the system password for the keypad module: It is possible to reset the system password to factory settings if you have forgotten it. The restoration of default factory settings does not delete the other information programmed on the system, such as user names or other settings.
-
Page 56: Keypad Outdoor Station Without Display (Camera + Audio + Keypad)
® ABB Welcome Keypad outdoor station without display (camera + audio + keypad) 5.6.1 Calling a resident by inputting physical address In standby mode, a visitor can enter the physical address corresponding to the residence to call directly, from 001 to 250. - Page 57 ® ABB Welcome *Reset the system password for the keypad module: It is possible to reset the system password to the factory setting if you have forgotten it. The restoration of default factory settings does not delete the other information programmed on the system, such as user names or other settings.
-
Page 58: Advanced Configuration
® ABB Welcome Advanced configuration Connect to a PC to configure the keypad or display. — 58 —... -
Page 59: Technical Data
® ABB Welcome Technical data Designation Value Operating temperature -40 °F to +158 °F Protection (cover frame IP 54 assembled) Power supply, door opener 18V, 4 A impulsive, 250 mA holding (Lock-GND) Floating output, door opener 30 V AC/DC 1A... -
Page 60: Mounting And Installation
® ABB Welcome Mounting and installation Warning Electric voltage! Direct or indirect contact with live components can cause dangerous currents to flow through the body, which may result in electric shock, burns or even death. Always disconnect the main power supply prior to installation and/or disassembly. -
Page 61: General Installation Instructions
® ABB Welcome General installation instructions Terminate all branches of the wiring system via a connected bus device (e.g., indoor station, outdoor station, system device). Do not install the system controller directly next to the bell transformer or other power supplies (to avoid interference). -
Page 62: Mounting
® ABB Welcome Mounting Wear gloves to protect your hands from possible laceration. Dimension Audio module Camera module Nameplate module Pushbutton module Display and card reader Keypad module module — 62 —... - Page 63 ® ABB Welcome Cover frame Flush-mounted — 63 —...
- Page 64 ® ABB Welcome Rain hood Components of the outdoor station Functions Cover frame Modules Flush-mounted box Rain hood — 64 —...
- Page 65 ® ABB Welcome Mount each module in the cover frame Insert each module into the cover frame from behind until it clicks into place. All modules can be inserted, e.g., the camera module, audio module, pushbutton module, keypad module, display and card reader module, nameplate module.
- Page 66 ® ABB Welcome The distance zones for the installation of the outdoor station When selecting the installation site, ensure that the minimum distance to the right side is adhered to for removal of the end strip. — 66 —...
- Page 67 ® ABB Welcome Wires Prepare the installation box. Strip the wires. – The insulated section of the cable end must not be longer than .039". Assemble the frame into the flush-mounted box Hang the device in the installation box. Fasten the safety loop.
- Page 68 ® ABB Welcome Four types of installation Option 1: Flush mounted with only flush-mounted box Option 2: Flush mounted with a rain hood Option 3: Surface mounted with a rain hood — 68 —...
- Page 69 ® ABB Welcome Option 4: Cavity wall installation — 69 —...
- Page 70 ® ABB Welcome Dismounting the outdoor station Use the enclosed mounting tool to remove the end strip. Remove the screw that is used to affix the cover frame. Push up and pull out the outdoor station on the bottom of the cover frame.
- Page 71 ® ABB Welcome Replacing the nameplates Remove the pushbutton cover and write the user names on the labels. Use a labeling sheet with appropriate software to correctly format and print the labels. — 71 —...
- Page 72 ® ABB Welcome Adjusting the angle of the camera Fig. 1 Adjust the angle of the camera Unscrew the camera. Adjust the angle of the camera in four directions (up, down, right and left). Screw on the camera. — 72 —...
- Page 73 ® ABB Welcome Extending the outdoor station Make a hole for the cable. Use the joining fixtures to assemble the flush-mounted boxes horizontally. Run the connection wires between the boxes. *The extension is useful for multi-outdoor station connections. — 73 —...
