Saturn High-Tech Videovox ADV-100 Service Manual

Mobile video system

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

MOBILE VIDEO SYSTEM

EJECT

POWER

PLAY/PAUSE

STOP

DVD / CD / MP3 PLAYER

ENTER

VIDEO IN 1

L AUDIO IN 1 R

AUDIO

VOLUME

SOURCE

AV INPUT

SETUP

DVD

MODEL: ADV-100

Note:

Multi-subtitle Language Function

Multi-audio Language Function

Multi-angle Function

Parental Control

Saturn High-Tech, Inc.

Table of Contents

Summary of Contents for Saturn High-Tech Videovox ADV-100

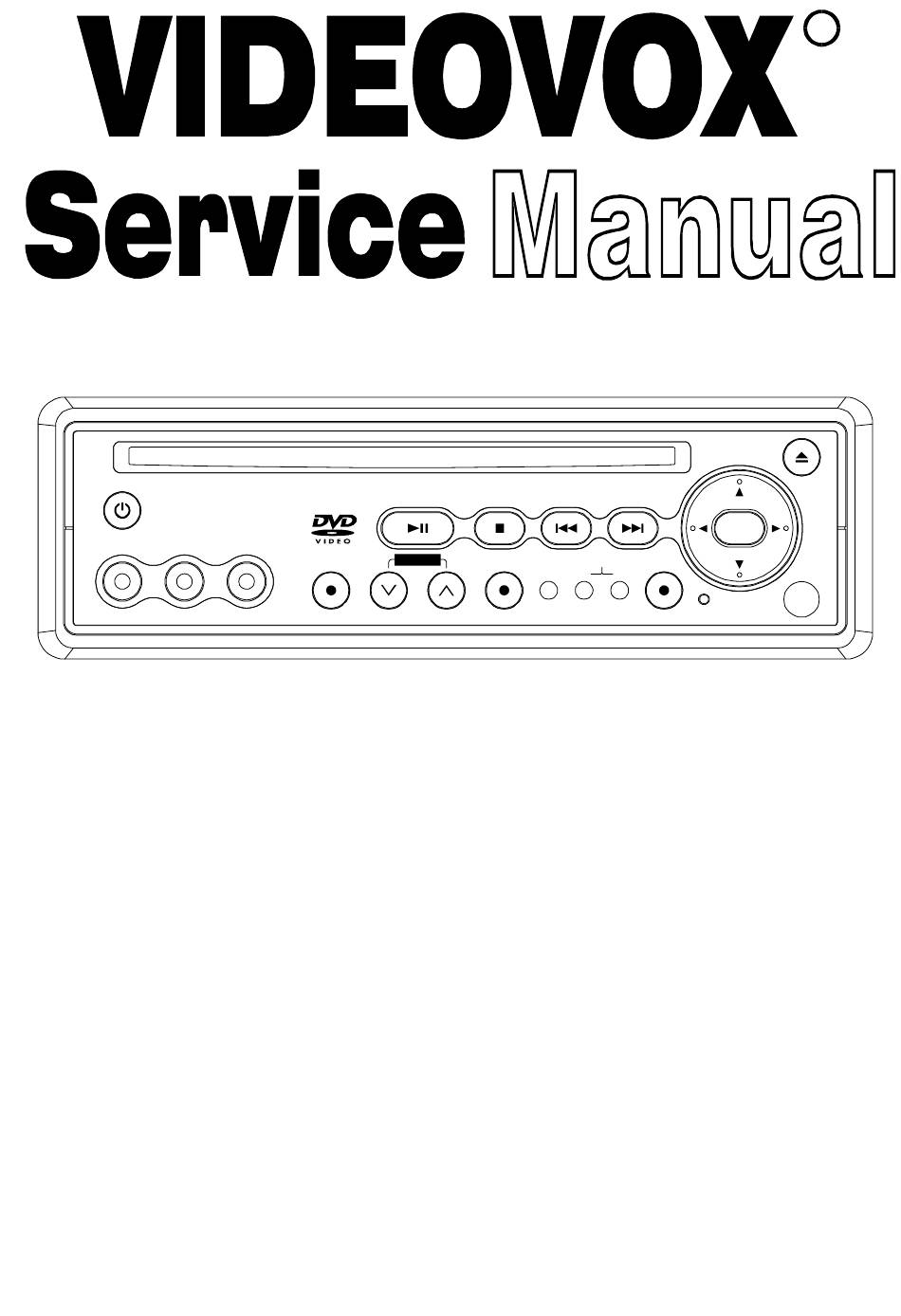

Page 1 STOP PREVIOUS NEXT DVD / CD / MP3 PLAYER ENTER VIDEO IN 1 L AUDIO IN 1 R AUDIO VOLUME SOURCE AV INPUT SETUP MODEL: ADV-100 Note: Multi-subtitle Language Function Multi-audio Language Function Multi-angle Function Parental Control Saturn High-Tech, Inc.
Page 2: Table Of Contents
CONTENTS Page Disassembly Instructions ..........................3 Disassembly Diagram............................4 Block Diagram ..............................5 Printed Circuit Board............................6 Wiring Diagram ...............................12 Exploded View ..............................13 Exploded View Parts List ..........................14 Schematic Diagram ............................15 Electrical Parts List ............................22 Specifications..............................26...
Page 3: Disassembly Instructions
DISASSEMBLY INSTRUCTIONS 1. Remove two screws (A) from each side of the top cabinet and remove three screws (B) located on the rear of the top cabinet then remove the Top Cabinet. 2. Remove four screws (C) located on the under the bottom cabinet then remove four Rubber Foot DVD171. 4.
Page 4: Disassembly Diagram
DISASSEMBLY DIAGRAM...
Page 5: Block Diagram
BLOCK DIAGRAM...
Page 6: Printed Circuit Board
PRINTED CIRCUIT BOARDS MAIN BOARD TOP VIEW...
Page 7 MAIN BOARD BOTTOM VIEW...
Page 8 KEY BOARD TOP VIEW...
Page 9 KEY BOARD BOTTOM VIEW...
Page 10 REMOTE BOARD TOP VIEW...
Page 11 REMOTE BOARD BOTTOM VIEW...
Page 12: Wiring Diagram
WIRING DIAGRAM...
Page 13: Exploded View
EXPLODED VIEW...
Page 14: Exploded View Parts List
EXPLODED VIEW PARTS LIST Ref. No. Description RS Part No. Mfr’s Part No. Ring /777 (S. OPC0204) 51-H2020-80S Lens: RM W/O BRAND 43-B2001-83Y Top Panel (S. OPC0204) 51-B2020-80S Top Cover (S. OPC0204) 61-H2002-80S Bottom Cabinet (S. OPC0204) 61-H2001-81B Main PCB Paper 43-12603-00 Main Board 11-H2010-007...
Page 15: Schematic Diagram
SCHEMATIC DIAGRAM (SERVO)
Page 16 SCHEMATIC DIAGRAM (MPEG)
Page 17 SCHEMATIC DIAGRAM (POWER)
Page 18 SCHEMATIC DIAGRAM (D/A)
Page 19 SCHEMATIC DIAGRAM (AV/POWER-IN/OUT)
Page 20 SCHEMATIC DIAGRAM (KEY BOARD)
Page 21 SCHEMATIC DIAGRAM (REMOTE BOARD)
Page 22: Electrical Parts List
ELECTRICAL PARTS LIST Ref. No. Parts No. Description Q’ty PC BOARD ASSY, MAIN BOARD Q2,7,16/7/9,24/5 01-00106-00 KRA106S (SOT-23) Q3,5,14/5 01-00106-10 KRC106S (SOT-23) Q9,20/1 01-00231-00 KRC231S (SOT-23) QQ1,2,QV1,2 01-01298-00 KTA1298 (SOT-23) 01-01385-00 KTA1385D-Y (DPAK) Q1,8,QQ4 01-03265-00 KTC3265-Y (SOT-23) Q10/3 01-04375-00 TR. KTC4375-Y (SOT-89) 02-04001-01 CHIP IN4001 (SOD-106) D4,6,7,9,10/5,DD2,3,6,8...
Page 23 ELECTRICAL PARTS LIST - CONTINUED Ref. No. Parts No. Description Q’ty C38,41 05-63151-00 CHIP CAP 150PF ±5% NPO 0603 SMT C249 05-63200-00 CHIP CAP 20PF ±5% NPO 0603 SMT C20/1,248 05-63330-00 CHIP CAP 33PF ±5% NPO 0603 SMT C3,9,CC8,59 05-63470-00 CHIP CAP 47PF ±5% NPO 0603 SMT C196/7,CC16/7 05-63471-00...
Page 24 ELECTRICAL PARTS LIST - CONTINUED Ref. No. Parts No. Description Q’ty RV8,R45,53 07-63223-00 CHIP RES 22kΩ ±5% 0603 SMT R296 07-63271-00 CHIP RES 270Ω ±5% 0603 SMT R44,RR18,98 07-63330-00 CHIP RES 33Ω ±5% 0603 SMT R12~4,20,46/9,50/4,101,RA5,6 07-63332-00 CHIP RES 3.3kΩ ±5% 0603 SMT RR93/4/7 07-63333-00 CHIP RES 33kΩ...
Page 25 ELECTRICAL PARTS LIST - CONTINUED Ref. No. Parts No. Description Q’ty LED2~4,6~16 02-30000-05 LED Ø3MM GREEN 02-50051-00 ZENER DIODE 5.1V 0.5W 03-06312-00 IC PT6312LQ ANGUS CF3,5 05-63101-00 CHIP 100PF ±5% NPO 0603 SMT CF6~8 05-63104-02 CHIP CAP 0.1µF ±20% Y5V 0603 SMT 05-63470-00 CHIP 47PF ±5% NPO 0603 SMT CF1,2...
Page 26: Specifications
SPECIFICATIONS Current Consumption ........................... Less than 2.0A Signal System ................Competitive video 1.0Vp-p 75Ω RCA pin jack Audio Output level ......................600Ω (2CH 2.0Vrms) Audio signal output Characteristics: Frequency response ........................20 Hz - 20 kHz S/N Radio............................90 dB (JIS) Wow and flutter ......................Below Measurable Limits Note: Specifications and design are subject to modification, without notice, due to improvements in technology.
